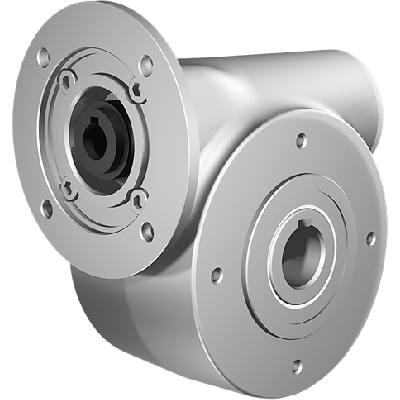

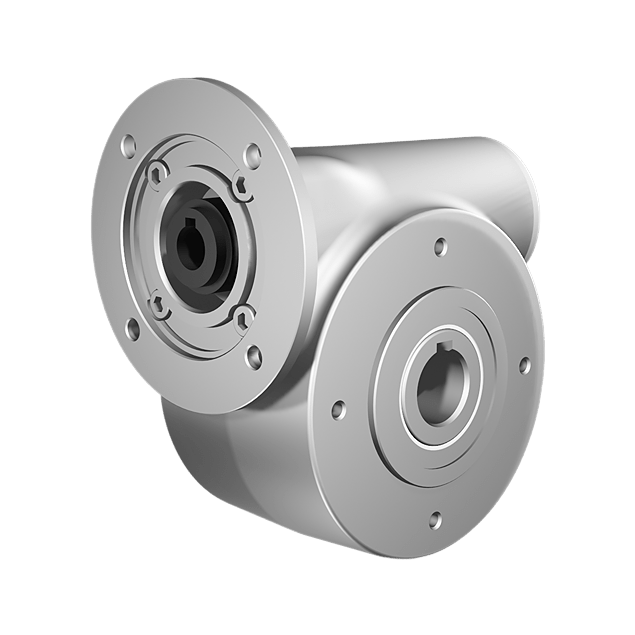

Clean-Geartech N50, worm gear Ø25, 30:1, input 71B14, stainless steel
HV82PN50UNIN120MFINN-QB3-C-OFThe Clean-Geartech N50, worm gear Ø25, 30:1, input 71B14, stainless steel is designed for demanding applications requiring corrosion-resistant gear components. It features a gear ratio of 30:1 and a gear size N50, suitable for precise torque transfer. The input shaft diameter is 14 mm and the output shaft diameter is 25 mm. The gear housing and internal gears are made of stainless steel AISI 316L, ensuring durability in harsh environments. With an efficiency of 70% and BCD input 85 / BCD output 94, the unit is compatible with standard motor and load interfaces. The gear motor interface is 71B14, supporting straightforward integration.
Specifications
Product description
Downloads
€735.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
30:1
BCD input
85
BCD output
94
Efficiency (%)
70
Gear output shaft (mm)
25
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N50
Output speed at 1400 RPM
47
Max output torque (Nm)
72
Max kW input at 1400 rpm
0.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of hygienic, high-performance gear units tailored for demanding industrial applications. Known for precision engineering and use of durable AISI 316L stainless steel, Clean-Geartech products are trusted by engineers and technical specialists across food processing, pharmaceutical, chemical, and marine environments where reliability and cleanliness are paramount.Product: Clean-Geartech N50 Worm Gear, Ø25 mm Output Shaft, 30:1 Ratio, Input 71B14, Stainless SteelTechnical Application Features and Advantages:
Fully constructed from AISI 316L stainless steel, the gear housing and components offer maximum resistance to corrosion, ideal for use in food-grade, chemical, and marine environments.
Compact gear size N50 with a 30:1 gear ratio allows for efficient torque multiplication in space-constrained installations, suitable for conveyors, mixers, and dosing equipment.
Equipped with a 25 mm hollow stainless steel output shaft (SS), this unit enables rigid coupling with driven components while resisting wear and chemical degradation.
Features a 14 mm input shaft compatible with motor coupling via IEC standard interface 71B14, ensuring easy integration with standard motor sizes used by OEMs and system integrators.
Designed with a system efficiency of 70%, the gear delivers reliable power transmission while minimizing energy loss, beneficial in continuous operation settings.
Robust and hygienic housing simplifies wash-down and sterilization procedures, considered essential for HACCP-compliant food and pharmaceutical production lines.
BCD Input: 85 and BCD Output: 94 provide secure and stable mechanical mounting options, allowing safe integration into industrial automation modules and machine frames.
Stainless steel worm screw and wheel ensure long service life under heavy-duty cycles and resist pitting or galling under temperature or chemical stress.
Preferred choice for environments demanding zero-paint, non-corrosive mechanical components, eliminating flaking risk and ensuring biocompatibility in sensitive operations.Clean-Geartech’s N50 stainless steel worm gear offers unmatched durability, hygiene, and performance for technical professionals designing dependable drive systems under strict regulatory and mechanical conditions.
Fully constructed from AISI 316L stainless steel, the gear housing and components offer maximum resistance to corrosion, ideal for use in food-grade, chemical, and marine environments.
Compact gear size N50 with a 30:1 gear ratio allows for efficient torque multiplication in space-constrained installations, suitable for conveyors, mixers, and dosing equipment.
Equipped with a 25 mm hollow stainless steel output shaft (SS), this unit enables rigid coupling with driven components while resisting wear and chemical degradation.
Features a 14 mm input shaft compatible with motor coupling via IEC standard interface 71B14, ensuring easy integration with standard motor sizes used by OEMs and system integrators.
Designed with a system efficiency of 70%, the gear delivers reliable power transmission while minimizing energy loss, beneficial in continuous operation settings.
Robust and hygienic housing simplifies wash-down and sterilization procedures, considered essential for HACCP-compliant food and pharmaceutical production lines.
BCD Input: 85 and BCD Output: 94 provide secure and stable mechanical mounting options, allowing safe integration into industrial automation modules and machine frames.
Stainless steel worm screw and wheel ensure long service life under heavy-duty cycles and resist pitting or galling under temperature or chemical stress.
Preferred choice for environments demanding zero-paint, non-corrosive mechanical components, eliminating flaking risk and ensuring biocompatibility in sensitive operations.Clean-Geartech’s N50 stainless steel worm gear offers unmatched durability, hygiene, and performance for technical professionals designing dependable drive systems under strict regulatory and mechanical conditions.
