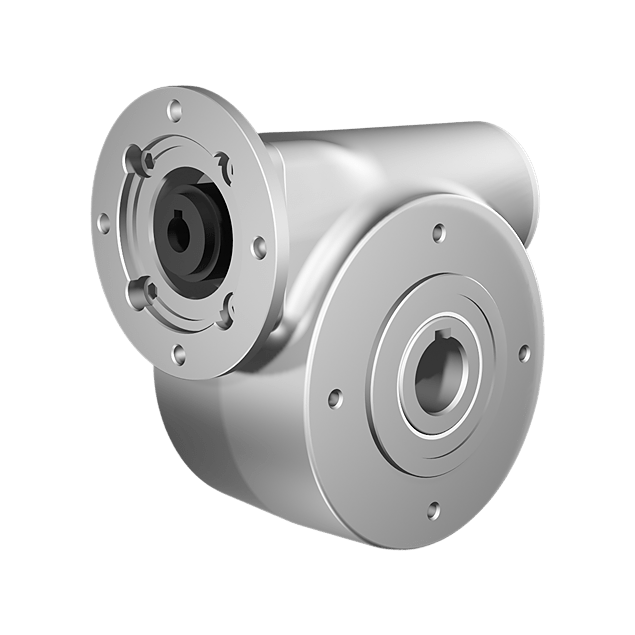

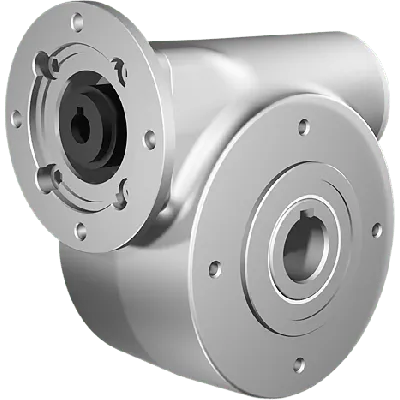

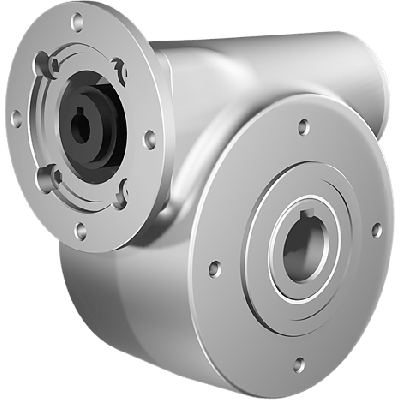

Clean-Geartech N50, worm gear Ø25, 30:1, input 63B14, stainless steel
HV82PN50UNIN120MFINN-PB3-B-OFThe Clean-Geartech N50, worm gear Ø25, 30:1, input 63B14, stainless steel is designed for demanding applications requiring robust performance and material durability. This model features a 30:1 gear ratio and an input shaft diameter of 11 mm, paired with a Ø25 mm output shaft. The gear size is N50 and the motor interface is 63B14, ensuring compatibility with standard motors. Both the housing and gears are made from stainless steel AISI 316L, providing high resistance to corrosion. With a BCD input of 75 mm and a BCD output of 94 mm, this unit delivers an efficiency of 70% under normal operating conditions.
Specifications
Product description
Downloads
€731.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
30:1
BCD input
75
BCD output
94
Efficiency (%)
70
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
47
Max output torque (Nm)
72
Max kW input at 1400 rpm
0.5
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer: Clean-Geartech Clean-Geartech is an industry-leading manufacturer specializing in advanced stainless steel gear solutions tailored for demanding industrial applications. Renowned for their innovation, reliability, and hygienic design, Clean-Geartech products are widely used across the food processing, pharmaceutical, chemical, and marine sectors due to their outstanding resistance to corrosion and their robust construction for harsh environments.Key Features and Benefits:
Constructed entirely from AISI 316L stainless steel – offers exceptional resistance to corrosion, making it ideal for hygienic environments and aggressive chemical exposure.
Worm gear size N50 – compact footprint allows simple integration into tight spaces without compromising torque performance.
Gear ratio 30:1 – delivers high torque output for slow-speed, precision-controlled applications such as conveyors, mixers, and rotary actuators.
Efficiency of 70% – optimized for lower energy consumption while maintaining reliable power transmission over long operational cycles.
Ø25 mm hollow output shaft in stainless steel – enables direct coupling to driven equipment while ensuring high resistance to wear and torsional stress.
Ø11 mm input shaft – suitable for connection with various motor types using standard shaft couplings or direct fits.
63B14 motor interface – compatible with standard IEC B14 flange motors, allowing easy motor integration and serviceability.
Designed for CIP (Clean-in-Place) compatibility – supports hygienic washdown operations, critical in food, beverage, and pharmaceutical production environments.
BCD input 75 mm / BCD output 94 mm – ensures precise mounting compatibility with a range of system configurations.
Ideal for use in sectors requiring corrosion resistance and hygiene, including food processing, packaging automation, pharmaceutical production, and marine operations. The Clean-Geartech N50 combines durability, performance, and design simplicity, making it the preferred worm gear solution for technical specialists and engineers working with demanding mechanical drive systems in cleanroom or corrosive environments.
Constructed entirely from AISI 316L stainless steel – offers exceptional resistance to corrosion, making it ideal for hygienic environments and aggressive chemical exposure.
Worm gear size N50 – compact footprint allows simple integration into tight spaces without compromising torque performance.
Gear ratio 30:1 – delivers high torque output for slow-speed, precision-controlled applications such as conveyors, mixers, and rotary actuators.
Efficiency of 70% – optimized for lower energy consumption while maintaining reliable power transmission over long operational cycles.
Ø25 mm hollow output shaft in stainless steel – enables direct coupling to driven equipment while ensuring high resistance to wear and torsional stress.
Ø11 mm input shaft – suitable for connection with various motor types using standard shaft couplings or direct fits.
63B14 motor interface – compatible with standard IEC B14 flange motors, allowing easy motor integration and serviceability.
Designed for CIP (Clean-in-Place) compatibility – supports hygienic washdown operations, critical in food, beverage, and pharmaceutical production environments.
BCD input 75 mm / BCD output 94 mm – ensures precise mounting compatibility with a range of system configurations.
Ideal for use in sectors requiring corrosion resistance and hygiene, including food processing, packaging automation, pharmaceutical production, and marine operations. The Clean-Geartech N50 combines durability, performance, and design simplicity, making it the preferred worm gear solution for technical specialists and engineers working with demanding mechanical drive systems in cleanroom or corrosive environments.
