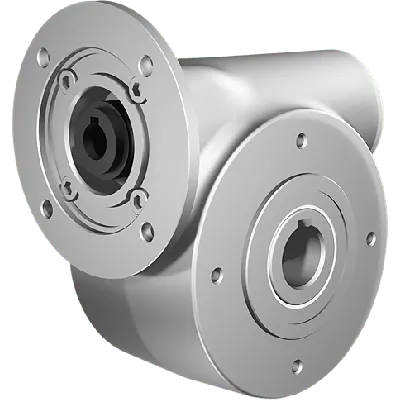

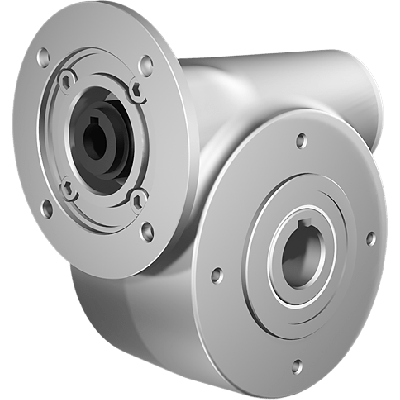

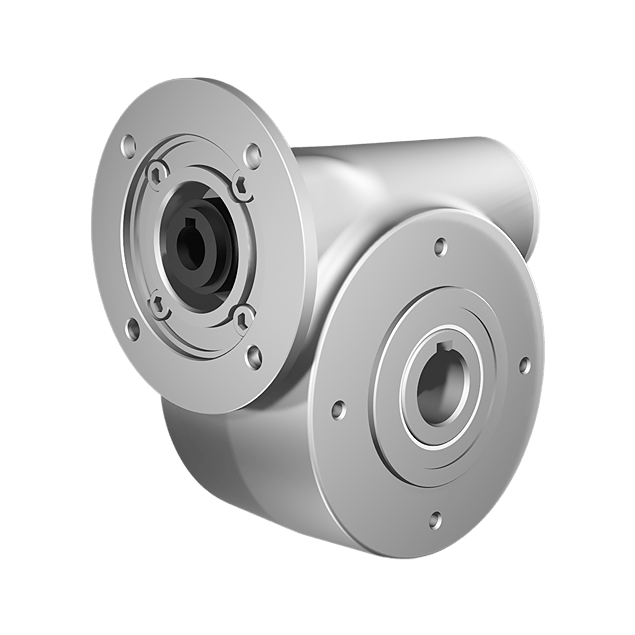

Clean-Geartech N50, worm gear Ø25, 26:1, input 80B14, stainless steel
HV82PN50UNIN050MFINN-RB3-D-OFThe Clean-Geartech N50 Worm Gearbox Ø25, 26:1, Input 80B14, Stainless Steel offers a range of features tailored for technical specialists. Key attributes include: BCD input: 100, BCD output: 94, Efficiency: 69%, Gear input shaft: 19 mm, Gear output shaft: 25 mm, Gear material: Stainless steel AISI 316L, Gear motor interface: 80B14, Ratio: 26:1, and Gear size: N50. The gearbox is designed with a stainless steel output shaft and housing for robust durability and corrosion resistance in demanding environments.
Specifications
Product description
Downloads
€746.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
10.000000
Material
Stainless steel AISI 316L
Ratio
26:1
BCD input
100
BCD output
94
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
19
Gear motor interface
80B14
Gear size
N50
Output speed at 1400 RPM
54
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.54
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer renowned for delivering high-performance, hygienic, and corrosion-resistant gear solutions tailored to demanding industrial applications. Using premium-grade stainless steel (AISI 316L), Clean-Geartech’s gearboxes are engineered to withstand harsh environments such as food processing, pharmaceuticals, chemicals, and marine operations. The brand is a trusted choice for engineers and technical professionals requiring durability, reliability, and compliance in hygienically critical sectors.Key Features and Application Benefits:
• Fully constructed in AISI 316L stainless steel – offers superior resistance to corrosion, high-pressure washdowns, and aggressive cleaning agents, making it ideal for food-grade and hygiene-sensitive applications.
• Compact size (Gear size: N50) with a worm gear ratio of 26:1 – ensures precise torque control and space-efficient integration into constrained machinery layouts.
• Input shaft diameter 19 mm and B14 flange-mounted motor interface (80B14) – allows for seamless integration with standard gear motors, simplifying installation in automated systems.
• Output shaft diameter 25 mm in stainless steel – robust and corrosion-resistant output design for high load-bearing capacity in extreme environments.
• Output speed (based on gearbox ratio 26:1 and input speed 100 BCD) reduced to 94 BCD – delivers controlled motion and optimized mechanical efficiency crucial in dosing, conveying, and packaging.
• Gear efficiency at 69% – ensures acceptable power transmission efficiency for continuous operation with moderate energy loss, suitable for intermittent or continuous-duty cycles.
• Hygienic design – smooth surfaces facilitate easy cleaning and limit bacterial growth, meeting HACCP and EHEDG requirements in cleanroom or sterile environments.
• Ideal for use in sectors such as food processing, pharmaceutical manufacturing, beverage bottling lines, chemical dosing systems, and marine applications where stainless steel reliability is mandatory. The Clean-Geartech N50 worm gearbox is engineered for precision, durability, and long-lasting performance where hygiene and corrosion resistance are critical.
• Fully constructed in AISI 316L stainless steel – offers superior resistance to corrosion, high-pressure washdowns, and aggressive cleaning agents, making it ideal for food-grade and hygiene-sensitive applications.
• Compact size (Gear size: N50) with a worm gear ratio of 26:1 – ensures precise torque control and space-efficient integration into constrained machinery layouts.
• Input shaft diameter 19 mm and B14 flange-mounted motor interface (80B14) – allows for seamless integration with standard gear motors, simplifying installation in automated systems.
• Output shaft diameter 25 mm in stainless steel – robust and corrosion-resistant output design for high load-bearing capacity in extreme environments.
• Output speed (based on gearbox ratio 26:1 and input speed 100 BCD) reduced to 94 BCD – delivers controlled motion and optimized mechanical efficiency crucial in dosing, conveying, and packaging.
• Gear efficiency at 69% – ensures acceptable power transmission efficiency for continuous operation with moderate energy loss, suitable for intermittent or continuous-duty cycles.
• Hygienic design – smooth surfaces facilitate easy cleaning and limit bacterial growth, meeting HACCP and EHEDG requirements in cleanroom or sterile environments.
• Ideal for use in sectors such as food processing, pharmaceutical manufacturing, beverage bottling lines, chemical dosing systems, and marine applications where stainless steel reliability is mandatory. The Clean-Geartech N50 worm gearbox is engineered for precision, durability, and long-lasting performance where hygiene and corrosion resistance are critical.
