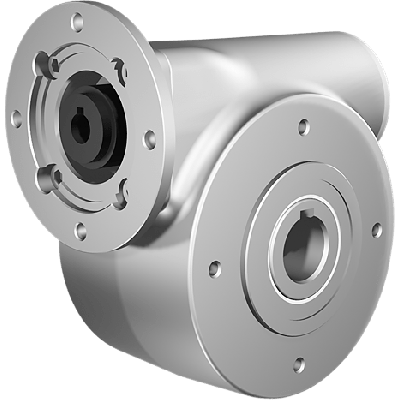

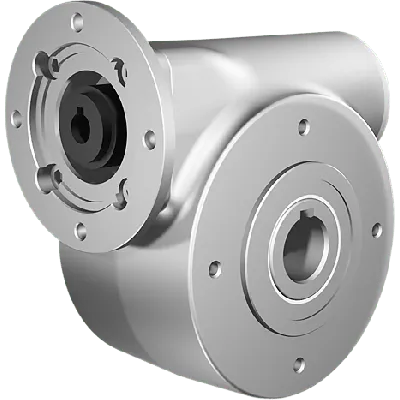

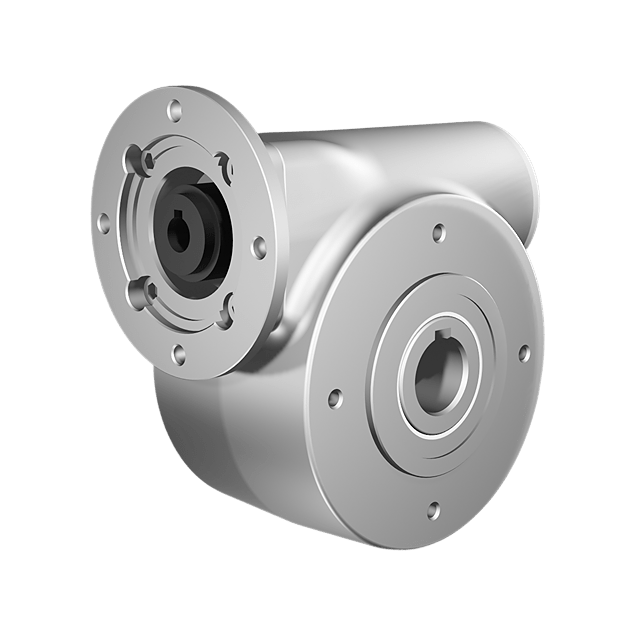

Clean-Geartech N50, worm gear Ø25, 26:1, input 63B14, stainless steel
HV82PN50UNIN050MFINN-PB3-B-OFIt features a stainless steel AISI 316L gear housing and a stainless steel Ø25 mm output shaft, ensuring high durability in hygienic or corrosive conditions. The input shaft measures Ø11 mm and links via a 63B14 motor interface. With a gear ratio of 26:1 and efficiency of 69%, it provides optimal torque conversion. The gear size is N50, with a BCD input of 75 mm and BCD output of 94 mm for compact system integration.
Specifications
Product description
Downloads
€731.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
26:1
BCD input
75
BCD output
94
Efficiency (%)
69
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
54
Max output torque (Nm)
66
Max kW input at 1400 rpm
0.54
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a reputable manufacturer renowned for its specialized gearbox solutions designed for hygienic, corrosive, and demanding industrial environments. With a strong focus on high-performance stainless steel gear systems, Clean-Geartech ensures optimal reliability, safety, and longevity in food processing, chemical, pharmaceutical, and marine applications.Below are the key features and practical benefits of the Clean-Geartech N50 worm gearbox:
High-Grade Stainless Steel (AISI 316L) Construction: The entire gearbox housing and output shaft are made from corrosion-resistant AISI 316L stainless steel, ensuring maximum resistance to aggressive cleaning agents and hygienic suitability for food and pharmaceutical industries.
SS Hollow Output Shaft Ø25 mm: The stainless steel hollow shaft ensures strength and longevity even under severe environmental conditions while enabling easy shaft coupling in process automation and machinery.
Worm Gear Design with 26:1 Ratio: Provides significant torque multiplication and speed reduction, making it ideal for precise control in conveyor systems, mixers, and dosing equipment.
Compact N50 Gearbox Size: Space-efficient design for seamless integration into tight machinery spaces, without compromising power output.
Motor Interface 63B14: Industry-standard input flange allows for easy coupling with IEC standard motors, facilitating efficient installation and replacement in OEM applications.
Input Shaft Ø11 mm: Standardized input dimension ensures compatibility with a wide range of drive motors and couplings.
Exceptional Durability: Especially suited for CIP (Clean-In-Place) processes and aggressive environments like chemical washdowns or marine environments.
Efficiency of 69%: Optimized worm gear mesh ensures adequate power transmission efficiency for continuous-duty operations.
Engineered for Technical Applications: Ideally suited for use in sanitized production systems, rotary indexing tables, automated packaging lines, or environmental applications where resistance to corrosion and hygiene standards are critical.
High-Grade Stainless Steel (AISI 316L) Construction: The entire gearbox housing and output shaft are made from corrosion-resistant AISI 316L stainless steel, ensuring maximum resistance to aggressive cleaning agents and hygienic suitability for food and pharmaceutical industries.
SS Hollow Output Shaft Ø25 mm: The stainless steel hollow shaft ensures strength and longevity even under severe environmental conditions while enabling easy shaft coupling in process automation and machinery.
Worm Gear Design with 26:1 Ratio: Provides significant torque multiplication and speed reduction, making it ideal for precise control in conveyor systems, mixers, and dosing equipment.
Compact N50 Gearbox Size: Space-efficient design for seamless integration into tight machinery spaces, without compromising power output.
Motor Interface 63B14: Industry-standard input flange allows for easy coupling with IEC standard motors, facilitating efficient installation and replacement in OEM applications.
Input Shaft Ø11 mm: Standardized input dimension ensures compatibility with a wide range of drive motors and couplings.
Exceptional Durability: Especially suited for CIP (Clean-In-Place) processes and aggressive environments like chemical washdowns or marine environments.
Efficiency of 69%: Optimized worm gear mesh ensures adequate power transmission efficiency for continuous-duty operations.
Engineered for Technical Applications: Ideally suited for use in sanitized production systems, rotary indexing tables, automated packaging lines, or environmental applications where resistance to corrosion and hygiene standards are critical.
