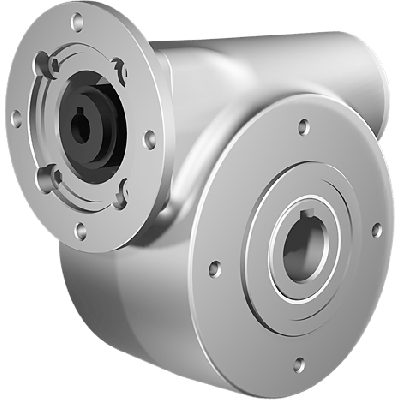

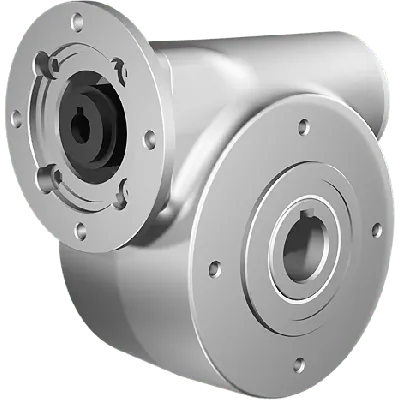

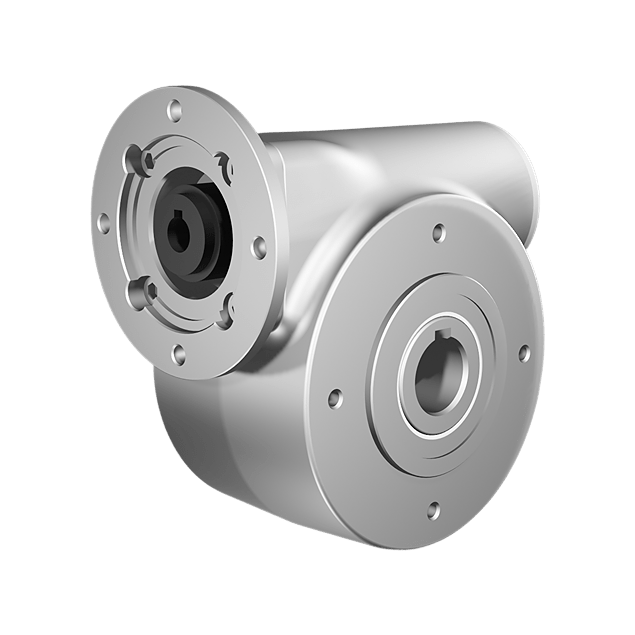

Clean-Geartech N50, worm gear Ø25, 14:1, input 63B14, stainless steel
HV82PN50UNIN030MFINN-PB3-B-OFThis model features a gear size: N50 and a gear ratio of 14:1, ensuring effective torque conversion. The gear input shaft is 11 mm and connects via a 63B14 motor interface. The gear output shaft measures 25 mm, compatible with standard couplings.Constructed with AISI 316L stainless steel gears and a stainless steel (SS) hollow shaft, the unit offers high resistance to aggressive environments. It provides a mechanical efficiency of 79%, with a BCD input of 75 mm and BCD output of 94 mm.
Specifications
Product description
Downloads
€731.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
14:1
BCD input
75
BCD output
94
Efficiency (%)
79
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
100
Max output torque (Nm)
68
Max kW input at 1400 rpm
0.9
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N50 worm gearbox is built for performance, durability, and hygiene-critical operations in demanding industrial environments. Engineered with precision and constructed from premium AISI 316L stainless steel, it is ideally suited for applications in the food, pharmaceutical, and chemical industries, as well as marine or washdown environments. Clean-Geartech is recognized for its innovation in developing hygienic, corrosion-resistant gearing solutions with a focus on reliability, sanitary design, and efficient power transmission.Key Functional Benefits and Application Capabilities:
Robust stainless steel housing (AISI 316L) offers superior corrosion resistance, making the gearbox ideal for aggressive environments including CIP (clean-in-place) and SIP (steam-in-place) processes.
High torque transmission with a 14:1 reduction ratio allows for controlled and efficient power delivery, suitable for mechanical handling, mixing systems, conveyors, and dosing units in process industries.
Hollow output shaft Ø25 mm in stainless steel enables easy integration with standard drive shafts and reduced maintenance due to rust-free construction.
Input shaft Ø11 mm combined with size N50 casing ensures compatibility with compact motor configurations for space-constrained installations.
Standardized B14 flange interface (63B14) ensures easy and direct mounting with a wide range of IEC electric motors, improving interchangeability and reducing installation time.
79% mechanical efficiency maximizes energy utilization and reduces operating costs in continuous-duty industrial applications.
Sanitary, crevice-free external design prevents accumulation of contaminants, ideal for hygienic zone installations, including food-grade and medical-grade environments.
Reliable performance under dynamic loads enables usage in automated systems requiring stable torque distribution and reduced backlash.With Clean-Geartech's commitment to excellence and hygienic design, the N50 worm gearbox is a trusted choice for engineers and technical specialists who demand durability, compliance, and performance in their drive system components.
Robust stainless steel housing (AISI 316L) offers superior corrosion resistance, making the gearbox ideal for aggressive environments including CIP (clean-in-place) and SIP (steam-in-place) processes.
High torque transmission with a 14:1 reduction ratio allows for controlled and efficient power delivery, suitable for mechanical handling, mixing systems, conveyors, and dosing units in process industries.
Hollow output shaft Ø25 mm in stainless steel enables easy integration with standard drive shafts and reduced maintenance due to rust-free construction.
Input shaft Ø11 mm combined with size N50 casing ensures compatibility with compact motor configurations for space-constrained installations.
Standardized B14 flange interface (63B14) ensures easy and direct mounting with a wide range of IEC electric motors, improving interchangeability and reducing installation time.
79% mechanical efficiency maximizes energy utilization and reduces operating costs in continuous-duty industrial applications.
Sanitary, crevice-free external design prevents accumulation of contaminants, ideal for hygienic zone installations, including food-grade and medical-grade environments.
Reliable performance under dynamic loads enables usage in automated systems requiring stable torque distribution and reduced backlash.With Clean-Geartech's commitment to excellence and hygienic design, the N50 worm gearbox is a trusted choice for engineers and technical specialists who demand durability, compliance, and performance in their drive system components.
