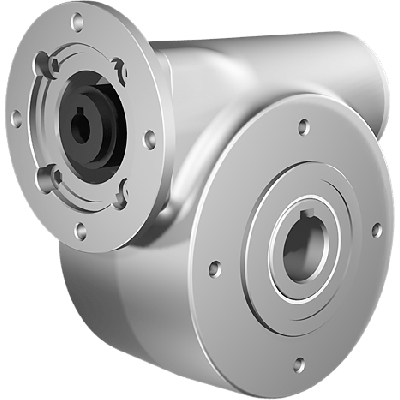

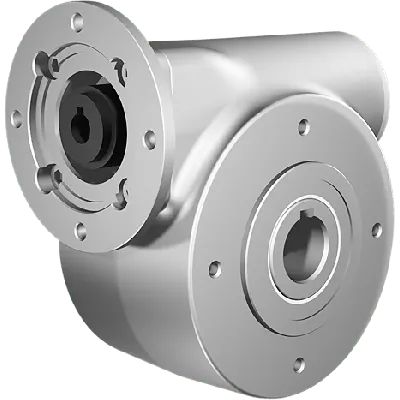

Clean-Geartech N50, worm gear Ø25, 100:1, input 63B14, stainless steel
HV82PN50UNIN110MFINN-PB3-B-OFIt features a gear ratio of 100:1, ideal for applications requiring high torque with reduced speed. The gear input shaft is 11 mm, and the gear output shaft is 25 mm, ensuring compatibility with standard shaft dimensions. The motor interface is 63B14, and the unit uses a type N50 gear size.Constructed from AISI 316L stainless steel gear material, including a stainless steel hollow shaft (Ø25 mm), it is designed for corrosion resistance. With a power transmission efficiency of 50%, the gearbox is suitable for clean and hygienic process applications. The BCD input is 75 mm and the BCD output is 94 mm.
Specifications
Product description
Downloads
€731.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
100:1
BCD input
75
BCD output
94
Efficiency (%)
50
Gear output shaft (mm)
25
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N50
Output speed at 1400 RPM
14
Max output torque (Nm)
51
Max kW input at 1400 rpm
0.15
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand: Clean-Geartech — a leading European manufacturer of hygienic and corrosion-resistant transmission components. Renowned for their robust product quality and special engineering in stainless steel, Clean-Geartech focuses on delivering gearboxes and gear motors tailored for demanding industrial applications, including food processing, pharmaceuticals, chemical, and marine industries. All their gear units are designed for maximum durability, hygiene, and optimal performance in harsh and corrosive environments.Key Features and Application Benefits:
• Constructed from stainless steel AISI 316L, this gear unit offers superior corrosion resistance, making it ideal for applications in food & beverage, chemical, and offshore industries where exposure to aggressive cleaning agents or salty environments is common.
• The worm gear configuration with a ratio of 100:1 provides high torque output and speed reduction in a compact footprint, allowing for precise control in conveyor systems, dosing equipment, and automated machinery.
• Equipped with a 63B14 gear motor interface, ensuring compatibility with a wide range of standardized IEC motors, significantly reducing integration time and simplifying maintenance.
• Features a robust Ø25 mm output shaft and Ø11 mm input shaft, delivering mechanical stability and vibration resistance for continuous-duty applications in industrial automation and packaging lines.
• Hollow shaft design in stainless steel enables direct mounting to driven equipment without couplings, minimizing footprint and mechanical complexity while enhancing wash-down capability.
• Gear size N50 offers a balanced performance-to-size ratio, making it suitable for installations with limited space while still handling significant mechanical loads.
• With an efficiency of 50%, the gear unit is optimized for applications where intermittent duty is acceptable and thermal performance is manageable, such as indexing operations or low-speed material handling.In summary, the Clean-Geartech N50 Worm Gearbox – stainless steel version – is an industry-proven solution tailored for environments demanding robustness, hygiene, compactness, and reliability. Its modularity and material specification make it well-suited for engineers working in design and maintenance of systems exposed to harsh operational conditions.
• Constructed from stainless steel AISI 316L, this gear unit offers superior corrosion resistance, making it ideal for applications in food & beverage, chemical, and offshore industries where exposure to aggressive cleaning agents or salty environments is common.
• The worm gear configuration with a ratio of 100:1 provides high torque output and speed reduction in a compact footprint, allowing for precise control in conveyor systems, dosing equipment, and automated machinery.
• Equipped with a 63B14 gear motor interface, ensuring compatibility with a wide range of standardized IEC motors, significantly reducing integration time and simplifying maintenance.
• Features a robust Ø25 mm output shaft and Ø11 mm input shaft, delivering mechanical stability and vibration resistance for continuous-duty applications in industrial automation and packaging lines.
• Hollow shaft design in stainless steel enables direct mounting to driven equipment without couplings, minimizing footprint and mechanical complexity while enhancing wash-down capability.
• Gear size N50 offers a balanced performance-to-size ratio, making it suitable for installations with limited space while still handling significant mechanical loads.
• With an efficiency of 50%, the gear unit is optimized for applications where intermittent duty is acceptable and thermal performance is manageable, such as indexing operations or low-speed material handling.In summary, the Clean-Geartech N50 Worm Gearbox – stainless steel version – is an industry-proven solution tailored for environments demanding robustness, hygiene, compactness, and reliability. Its modularity and material specification make it well-suited for engineers working in design and maintenance of systems exposed to harsh operational conditions.
