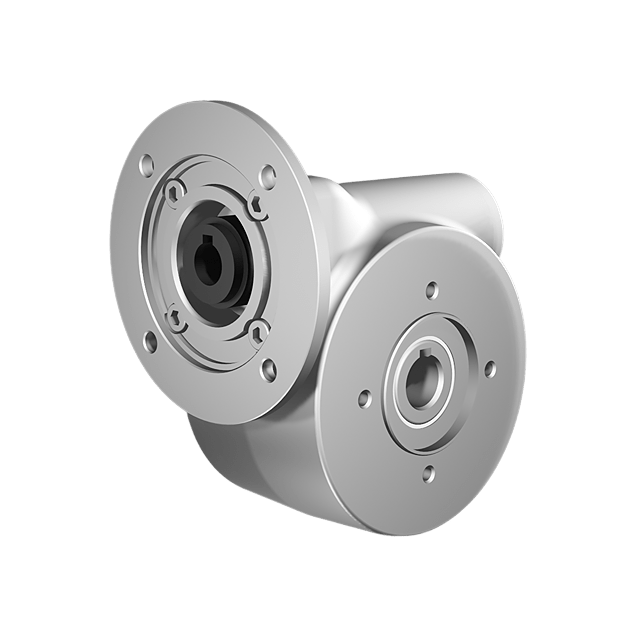

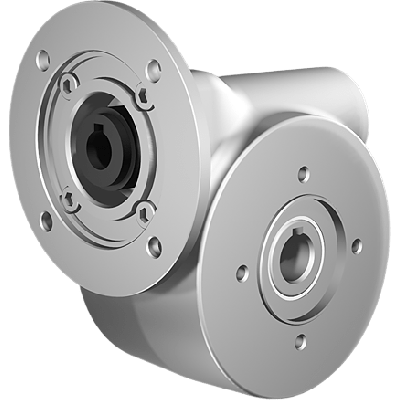

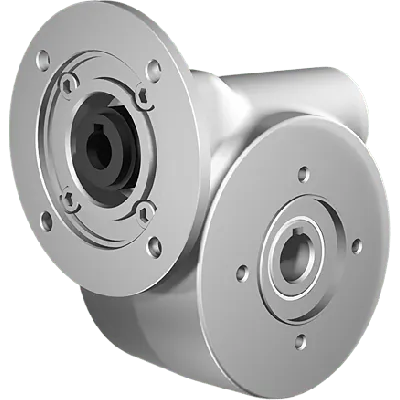

Clean-Geartech N45, worm gear Ø18, 70:1, input 71B14, stainless steel
HV82PN45UNIN090MBINN-QB3-C-OFThis model features a gear ratio of 70:1, offering controlled torque output. The gear input shaft measures 14 mm, while the output shaft diameter is 18 mm. The BCD input is 85 mm and the BCD output is 65 mm.The housing and internal gears are made of stainless steel AISI 316L, ensuring high corrosion resistance in wash-down or food-grade applications. It offers a mechanical efficiency of 54% and uses a gear motor interface of 71B14. This unit is classified as gear size N45.
Specifications
Product description
Downloads
€626.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
70:1
BCD input
85
BCD output
65
Efficiency (%)
54
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
20
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.12
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a premium manufacturer specializing in hygienic, corrosion-resistant gearbox solutions designed for demanding industrial environments. Their product line emphasizes durability, cleanliness, and compliance with strict hygiene standards, making them an ideal choice for food processing, pharmaceuticals, and chemical industries.Product Highlights & Application Benefits:
Constructed entirely from AISI 316L stainless steel, ensuring exceptional corrosion resistance in aggressive environments such as food production, chemical processing, and marine applications.
High hygiene compliance: The smooth, crevice-free design minimizes bacterial growth, making it ideal for cleanroom and sanitary-critical installations.
Equipped with a stainless steel hollow output shaft (Ø18 mm), providing optimal compatibility in washdown zones and ensuring long-term mechanical integrity under frequent cleaning cycles.
Worm gear configuration delivers a high gear reduction ratio of 70:1, allowing precise torque control and speed reduction for applications such as conveyor systems, mixers, and dosing equipment.
Compact gearbox size N45 with standardized motor interface (71B14), enabling simple integration with IEC standard motors and reducing installation complexity.
Input shaft diameter of 14 mm allows for effective power transfer from the driving motor, supporting operational efficiency across various torque demands.
Output keyway shaft (Ø18 mm) supports direct coupling with driven components like pumps, agitators, and rotary tables, facilitating mechanical reliability.
Energy efficiency rated at 54%, optimal for intermittent-duty operations where reliability and robustness take precedence over continuous energy savings.
Ideal for industries such as pharmaceuticals, dairy, breweries, and offshore operations, where frequent washdowns, exposure to chemicals, and long operational cycles are typical.
Integrated sealing elements support ingress protection (IP-rated housing possible upon request), extending service life even under high-pressure water exposure and high humidity.
Constructed entirely from AISI 316L stainless steel, ensuring exceptional corrosion resistance in aggressive environments such as food production, chemical processing, and marine applications.
High hygiene compliance: The smooth, crevice-free design minimizes bacterial growth, making it ideal for cleanroom and sanitary-critical installations.
Equipped with a stainless steel hollow output shaft (Ø18 mm), providing optimal compatibility in washdown zones and ensuring long-term mechanical integrity under frequent cleaning cycles.
Worm gear configuration delivers a high gear reduction ratio of 70:1, allowing precise torque control and speed reduction for applications such as conveyor systems, mixers, and dosing equipment.
Compact gearbox size N45 with standardized motor interface (71B14), enabling simple integration with IEC standard motors and reducing installation complexity.
Input shaft diameter of 14 mm allows for effective power transfer from the driving motor, supporting operational efficiency across various torque demands.
Output keyway shaft (Ø18 mm) supports direct coupling with driven components like pumps, agitators, and rotary tables, facilitating mechanical reliability.
Energy efficiency rated at 54%, optimal for intermittent-duty operations where reliability and robustness take precedence over continuous energy savings.
Ideal for industries such as pharmaceuticals, dairy, breweries, and offshore operations, where frequent washdowns, exposure to chemicals, and long operational cycles are typical.
Integrated sealing elements support ingress protection (IP-rated housing possible upon request), extending service life even under high-pressure water exposure and high humidity.
