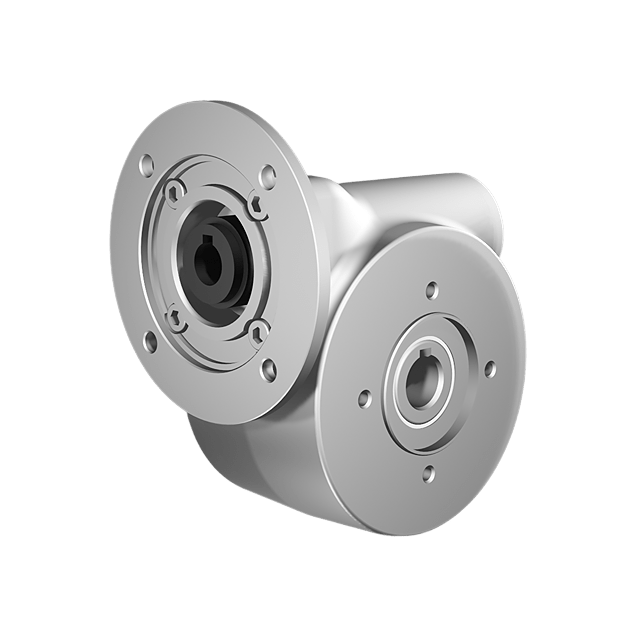

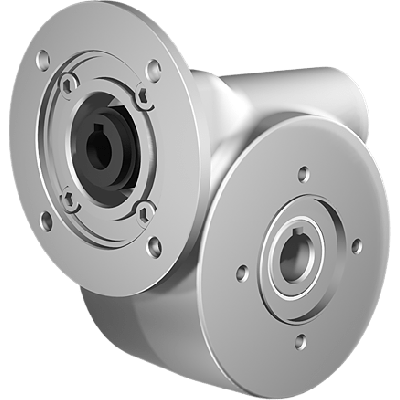

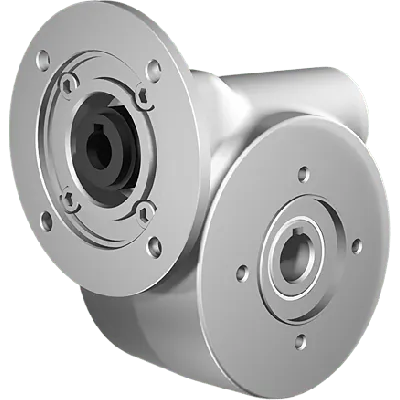

Clean-Geartech N45, worm gear Ø18, 7:1, input 71B14, stainless steel
HV82PN45UNIN010MBINN-QB3-C-OFThis unit features a gear ratio of 7:1 and an efficiency of 80%, supporting efficient torque conversion. It comes with a 14 mm input shaft and an 18 mm output shaft. The housing and internal components are engineered with gear material: stainless steel AISI 316L for durability in harsh environments. The gearbox is compatible with motor interface 71B14, and it has a gear size N45.The BCD input is 85 mm and the BCD output is 65 mm, offering standardized mounting flexibility for system integration.
Specifications
Product description
Downloads
€626.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.300000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
85
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
200
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is known for its innovative transmission solutions tailored for challenging industrial environments. The brand focuses on producing corrosion-resistant and hygienic components, particularly suitable for food, pharmaceutical, and chemical industries. All products from Clean-Geartech are designed for easy integration, high reliability, and compliance with industry-specific hygiene and durability standards.Product Highlights and Application Benefits:
Stainless Steel Construction – Manufactured in high-grade AISI 316L stainless steel, the gear housing and critical components provide excellent corrosion resistance, making it ideal for applications in aggressive or hygienic environments such as food and beverage, pharmaceutical, and marine industries.
High Efficiency – Designed with a mechanical efficiency of 80%, this gear unit ensures optimized energy transfer with minimal losses, reducing operational costs across continuous production systems.
Compact Gear Size – Gear size N45 allows for space-saving integration into automated systems or machinery with limited installation space, without compromising power transmission capabilities.
Output Shaft Ø18 mm – The robust stainless steel output shaft enables direct torque transmission to end actuators, ideal for conveyors, mixers, and rotary applications.
Input Shaft Ø14 mm – Supports straightforward coupling with IEC motors via the standardized 71B14 interface, allowing for seamless integration with existing drive systems.
Worm Gear Technology – The 7:1 transmission ratio offers high torque at low output speeds, well-suited for applications requiring controlled, precise movement including packaging lines, dosing equipment, or lifting devices.
BCD Input 85 mm & BCD Output 65 mm – Ensures accurate alignment and secure mounting, increasing operational stability and minimizing vibration during long-term operation.
Gear Motor Interface 71B14 – Supports standardized modular assembly with IEC motors, simplifying maintenance and upgrades while ensuring compatibility with a broad range of drives.
Application Versatility – Ideal for use in cleanrooms, high-humidity zones, CIP/SIP conditions, or locations where aggressive detergents are frequently used, ensuring long lifecycle and regulatory compliance.
Stainless Steel Construction – Manufactured in high-grade AISI 316L stainless steel, the gear housing and critical components provide excellent corrosion resistance, making it ideal for applications in aggressive or hygienic environments such as food and beverage, pharmaceutical, and marine industries.
High Efficiency – Designed with a mechanical efficiency of 80%, this gear unit ensures optimized energy transfer with minimal losses, reducing operational costs across continuous production systems.
Compact Gear Size – Gear size N45 allows for space-saving integration into automated systems or machinery with limited installation space, without compromising power transmission capabilities.
Output Shaft Ø18 mm – The robust stainless steel output shaft enables direct torque transmission to end actuators, ideal for conveyors, mixers, and rotary applications.
Input Shaft Ø14 mm – Supports straightforward coupling with IEC motors via the standardized 71B14 interface, allowing for seamless integration with existing drive systems.
Worm Gear Technology – The 7:1 transmission ratio offers high torque at low output speeds, well-suited for applications requiring controlled, precise movement including packaging lines, dosing equipment, or lifting devices.
BCD Input 85 mm & BCD Output 65 mm – Ensures accurate alignment and secure mounting, increasing operational stability and minimizing vibration during long-term operation.
Gear Motor Interface 71B14 – Supports standardized modular assembly with IEC motors, simplifying maintenance and upgrades while ensuring compatibility with a broad range of drives.
Application Versatility – Ideal for use in cleanrooms, high-humidity zones, CIP/SIP conditions, or locations where aggressive detergents are frequently used, ensuring long lifecycle and regulatory compliance.
