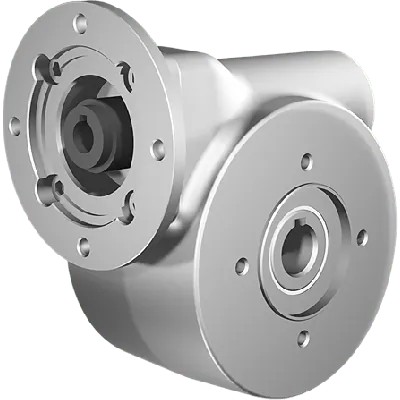

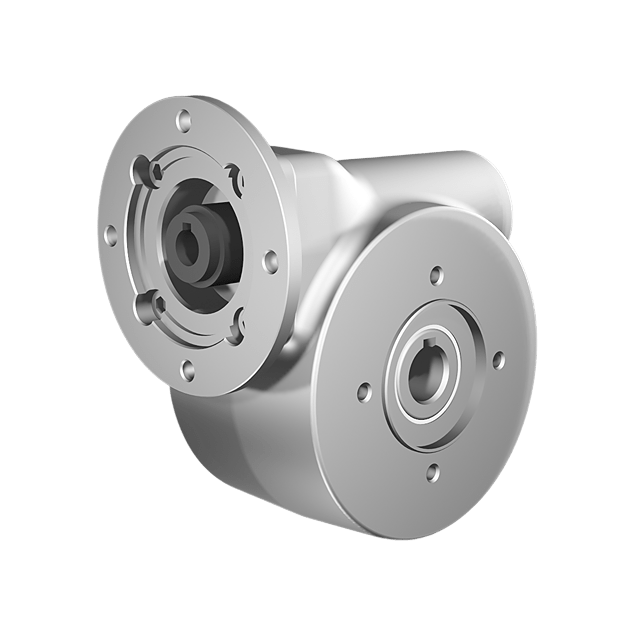

Clean-Geartech N45, worm gear Ø18, 7:1, input 63B14, stainless steel
HV82PN45UNIN010MBINN-PB3-B-OFThe unit features a gear ratio of 7:1 and delivers efficiency at 80%. It is equipped with a Ø11 mm input shaft and a Ø18 mm output shaft. The gearbox supports the 63B14 motor interface for standard compatibility.Constructed with a stainless steel AISI 316L gear housing, it ensures resistance to corrosion and harsh environments. The gear size is N45, making it suitable for mid-range torque applications.Input and output flange diameters are 75 mm and 65 mm respectively, optimizing installation flexibility in compact systems.
Specifications
Product description
Downloads
€621.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
75
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
200
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.8
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer: Clean-Geartech Clean-Geartech is a renowned manufacturer specializing in high-performance, hygienic gearboxes engineered for demanding industrial environments. Built to meet strict hygiene standards, Clean-Geartech delivers long-term reliability with outstanding resistance to corrosion and chemical exposure. Ideal for industries requiring sanitary solutions such as food processing, pharmaceuticals, and chemical production, their stainless steel gear units are a benchmark in quality and durability.Key Features, Advantages, and Application Areas:
Constructed entirely from AISI 316L stainless steel, this gear unit offers exceptional resistance to corrosion, making it ideal for harsh, washdown environments like food, beverage, and pharmaceutical production.
Equipped with a stainless steel Ø18 mm output shaft, it ensures high durability and compatibility with standard couplings in machinery requiring long service intervals and minimal contamination risk.
Integrated with B14 flange interface (63B14), allowing straightforward coupling with IEC motors and highly adaptable in both retrofit and new equipment configurations.
Features a 7:1 gear reduction ratio, optimized for applications requiring torque multiplication and moderate speed reduction, such as conveyors, mixers, and rotary tables.
The worm gear design ensures quiet and smooth operation, crucial in noise-sensitive applications while providing inherent self-locking capability for vertical and lifting systems.
Offers 80% efficiency, which is high for a worm gearbox, reducing energy loss and operational costs over time.
The Ø11 mm input shaft supports stable motor connection and minimizes misalignment and vibration in long-term operation.
Gear housing size N45 offers compact dimensions with suitable torque output, ideal for machines where space-saving is a priority.
The through-hardened worm wheel and precisely machined surfaces contribute to longer service life, even under continuous duty cycles.
Ideal for installation in CIP/SIP environments due to its stainless steel design and crevice-free surface structure that resists bacterial adhesion.This precision-engineered Clean-Geartech N45 gearbox delivers robust performance, extended reliability, and hygienic compliance — a must-have for engineers and technical specialists in regulated or corrosive industrial sectors.
Constructed entirely from AISI 316L stainless steel, this gear unit offers exceptional resistance to corrosion, making it ideal for harsh, washdown environments like food, beverage, and pharmaceutical production.
Equipped with a stainless steel Ø18 mm output shaft, it ensures high durability and compatibility with standard couplings in machinery requiring long service intervals and minimal contamination risk.
Integrated with B14 flange interface (63B14), allowing straightforward coupling with IEC motors and highly adaptable in both retrofit and new equipment configurations.
Features a 7:1 gear reduction ratio, optimized for applications requiring torque multiplication and moderate speed reduction, such as conveyors, mixers, and rotary tables.
The worm gear design ensures quiet and smooth operation, crucial in noise-sensitive applications while providing inherent self-locking capability for vertical and lifting systems.
Offers 80% efficiency, which is high for a worm gearbox, reducing energy loss and operational costs over time.
The Ø11 mm input shaft supports stable motor connection and minimizes misalignment and vibration in long-term operation.
Gear housing size N45 offers compact dimensions with suitable torque output, ideal for machines where space-saving is a priority.
The through-hardened worm wheel and precisely machined surfaces contribute to longer service life, even under continuous duty cycles.
Ideal for installation in CIP/SIP environments due to its stainless steel design and crevice-free surface structure that resists bacterial adhesion.This precision-engineered Clean-Geartech N45 gearbox delivers robust performance, extended reliability, and hygienic compliance — a must-have for engineers and technical specialists in regulated or corrosive industrial sectors.
