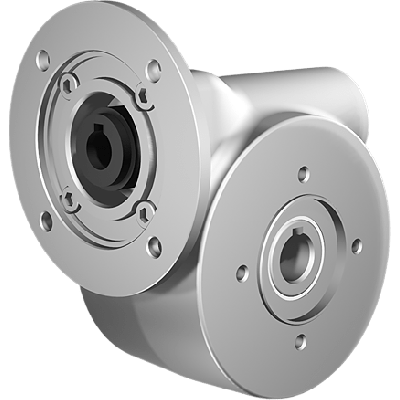

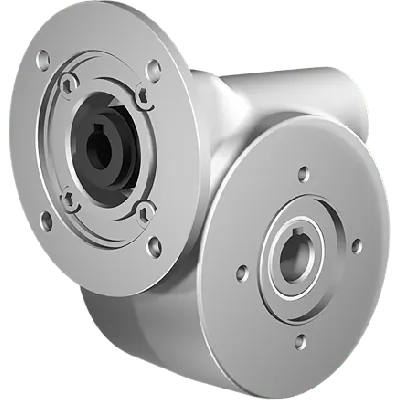

Clean-Geartech N45, worm gear Ø18, 46:1, input 71B14, stainless steel
HV82PN45UNIN070MBINN-QB3-C-OFKey attributes include: Gear size: N45, Ratio: 46:1, Gear input shaft: 14 mm, Gear output shaft: 18 mm, Motor interface: 71B14. The unit uses a stainless steel AISI 316L gear housing for enhanced resistance in aggressive environments. The BCD input: 85 mm and BCD output: 65 mm ensures compatibility with standard setups. Operational efficiency: 59%.Ideal for engineers seeking reliable transmission in corrosive or cleanroom environments.
Specifications
Product description
Downloads
€626.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
46:1
BCD input
85
BCD output
65
Efficiency (%)
59
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
30
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech brand is recognized globally for delivering high-performance stainless steel gearboxes tailored for high-demand applications, especially in hygienic and harsh industrial environments. Built with precision and reliability in mind, Clean-Geartech products are trusted by engineers and technical specialists across a variety of sectors, including food processing, pharmaceutical production, chemical handling, and marine systems.Product Description – Clean-Geartech N45, Worm Gear Ø18, 46:1, Input 71B14, Stainless Steel
Constructed from AISI 316L stainless steel, the gearbox housing offers superior resistance to corrosion and aggressive cleaning agents, ideal for use in food, pharmaceutical, and offshore industries.
The B14 flange input motor interface (size 71B14) ensures easy integration with standardized motors, reducing downtime during installation or replacement.
Output shaft diameter of 18 mm made entirely from stainless steel provides excellent durability and torsional stiffness, supporting reliable power transmission in high-load applications.
The 46:1 gear ratio offers high torque multiplication, suitable for applications requiring controlled speed reduction and precision positioning.
BCD input of 85 mm and BCD output of 65 mm matches industry-standard mounting dimensions, enabling compatibility with legacy system upgrades or modular designs.
The N45 frame size ensures a compact footprint, supporting installations where space constraints are critical without compromising mechanical performance.
Internal worm gear efficiency of 59% is balanced for applications where torque amplification is prioritized over speed loss, such as conveyor systems, mixers, and automated lifting devices.
Stainless steel output components (e.g., SS hollow shaft) enhance hygiene compliance and simplify maintenance by resisting corrosion and wear due to washdowns or chemical exposure.
Engineered for reliability, this gearbox supports continuous operation in demanding conditions where traditional gearboxes may fail due to contamination or oxidation.
Perfectly suited for technical installations in cleanrooms, aggressive process environments, or marine operations where rust, bacterial buildup, and mechanical wear are primary concerns. This Clean-Geartech N45 worm gearbox is your go-to solution for consistent torque performance, hygiene compatibility, and engineering-grade resilience.
Constructed from AISI 316L stainless steel, the gearbox housing offers superior resistance to corrosion and aggressive cleaning agents, ideal for use in food, pharmaceutical, and offshore industries.
The B14 flange input motor interface (size 71B14) ensures easy integration with standardized motors, reducing downtime during installation or replacement.
Output shaft diameter of 18 mm made entirely from stainless steel provides excellent durability and torsional stiffness, supporting reliable power transmission in high-load applications.
The 46:1 gear ratio offers high torque multiplication, suitable for applications requiring controlled speed reduction and precision positioning.
BCD input of 85 mm and BCD output of 65 mm matches industry-standard mounting dimensions, enabling compatibility with legacy system upgrades or modular designs.
The N45 frame size ensures a compact footprint, supporting installations where space constraints are critical without compromising mechanical performance.
Internal worm gear efficiency of 59% is balanced for applications where torque amplification is prioritized over speed loss, such as conveyor systems, mixers, and automated lifting devices.
Stainless steel output components (e.g., SS hollow shaft) enhance hygiene compliance and simplify maintenance by resisting corrosion and wear due to washdowns or chemical exposure.
Engineered for reliability, this gearbox supports continuous operation in demanding conditions where traditional gearboxes may fail due to contamination or oxidation.
Perfectly suited for technical installations in cleanrooms, aggressive process environments, or marine operations where rust, bacterial buildup, and mechanical wear are primary concerns. This Clean-Geartech N45 worm gearbox is your go-to solution for consistent torque performance, hygiene compatibility, and engineering-grade resilience.
