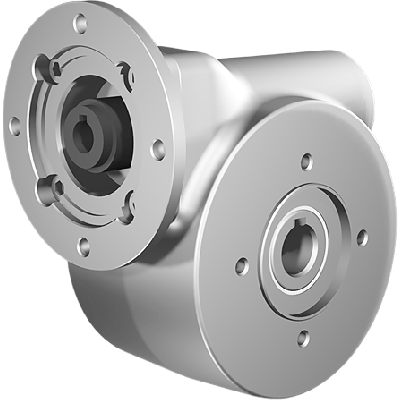

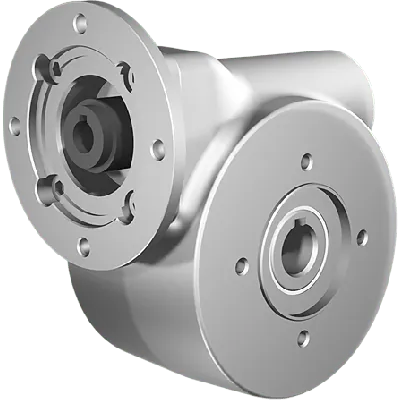

Clean-Geartech N45, worm gear Ø18, 46:1, input 63B14, stainless steel
HV82PN45UNIN070MBINN-PB3-B-OFThis worm gearbox features a gear ratio of 46:1 and a gear size N45, making it suitable for moderate torque and speed reduction needs. The gear input shaft diameter is 11 mm, while the gear output shaft diameter is 18 mm. It interfaces with a 63B14 motor flange.The unit is built with stainless steel AISI 316L gears, ensuring corrosion resistance and durability. It delivers a mechanical efficiency of 59%. The input BCD is 75 mm and the output BCD is 65 mm, supporting precise installation alignment.
Specifications
Product description
Downloads
€621.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
46:1
BCD input
75
BCD output
65
Efficiency (%)
59
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
30
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.22
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description: Clean-Geartech is a trusted European manufacturer specializing in hygienic power transmission solutions for demanding industrial environments. Known for high corrosion resistance and precision engineering, Clean-Geartech gears are widely used in the food & beverage, pharmaceutical, marine, and chemical industries, where cleanliness, durability, and reliability are crucial.Product Description:
Designed for demanding environments, the Clean-Geartech N45 worm gear features an AISI 316L stainless steel housing, ensuring maximum corrosion resistance in hygienic or aggressive conditions.
The 46:1 gear ratio allows for significant torque multiplication and speed reduction, making it ideal for conveying systems, mixers, and dosing equipment.
Its Ø18 mm solid output shaft in stainless steel provides strong torque transfer with high corrosion resistance, suitable for washdown and cleanroom applications.
The gear is equipped with a Ø11 mm input shaft compatible with IEC 63B14 motor interface, providing flexibility for integration with standard electric motors.
High-grade worm gear design ensures smooth and quiet operation, supporting applications where low noise levels are important, such as in packaging or medical machinery.
Despite a moderate efficiency of 59%, the worm gear design offers excellent self-locking capabilities, preventing back-driving in vertical or safety-critical setups.
Compact N45 housing makes it suitable for installations where space constraints exist, without compromising on performance or durability.
Clean, crevice-free design meets stringent sanitary requirements, suitable for industries with frequent cleaning procedures (CIP/SIP-compatible).
Fully enclosed and sealed design protects internal components from moisture, dust, and chemicals, extending service life in harsh industrial settings.
Ideal for food processing, bottling lines, pharmaceutical transport systems, and corrosive marine applications due to robust stainless steel construction and hygienic design.Product Attributes:- Gear ratio: 46:1 - Input shaft: Ø11 mm - Output shaft: Ø18 mm stainless steel - Gear housing material: Stainless steel AISI 316L - Motor interface: IEC 63B14 - Efficiency: 59% - Gear size: N45 Clean-Geartech – Innovating Stainless Steel Power Transmission Solutions.
