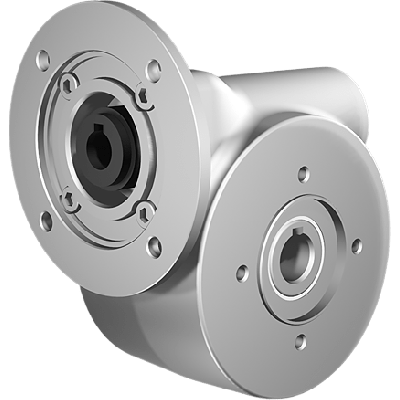

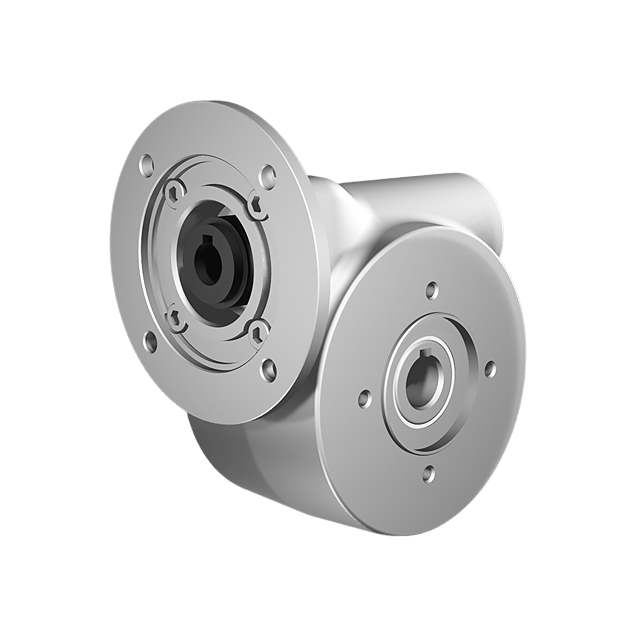

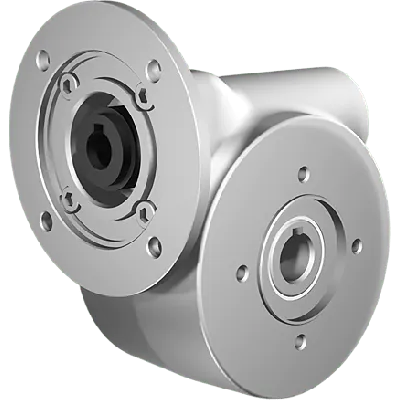

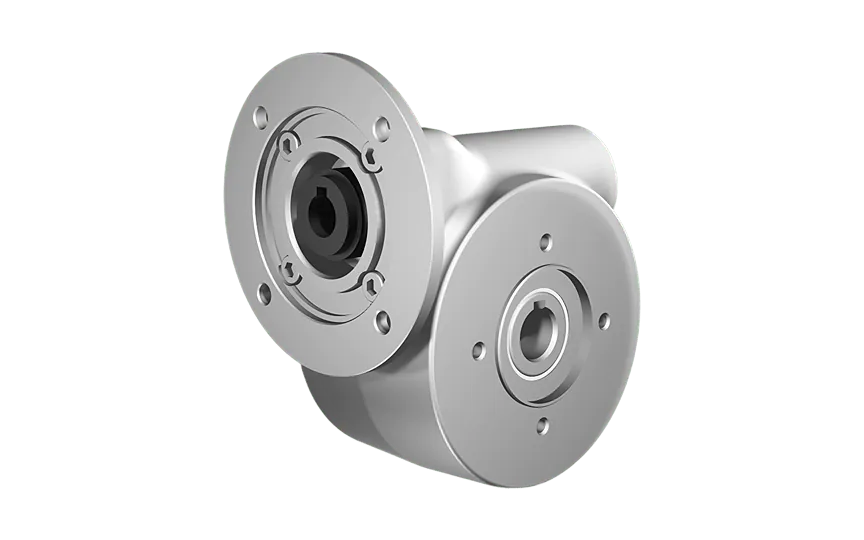

Clean-Geartech N45, worm gear Ø18, 28:1, input 71B14, stainless steel
HV82PN45UNIN050MBINN-QB3-C-OFThe Clean-Geartech N45, worm gearbox Ø18, 28:1, input 71B14, stainless steel is designed for demanding technical applications. Featuring a BCD input of 85 mm, BCD output of 65 mm, and a 14 mm gear input shaft, this gearbox supports a gear output shaft of 18 mm. It delivers a gear ratio of 28:1 with 65% efficiency. The gearbox is constructed with stainless steel AISI 316L gears and has a gear size N45. The gear motor interface is 71B14, making integration straightforward for standardized motor setups. All major components are engineered for corrosion resistance and durability.
Specifications
Product description
Downloads
€626.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
28:1
BCD input
85
BCD output
65
Efficiency (%)
65
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
50
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.33
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-performance stainless steel gear solutions for demanding industrial sectors. Their gearboxes are engineered for reliability, corrosion resistance, and easy sanitation, making them ideal for applications in food processing, pharmaceuticals, marine, and other hygienically critical or aggressive environments. The Clean-Geartech N45 worm gearbox embodies these values with robust construction and optimized efficiency for heavy-duty operation.Key Features, Benefits & Industrial Applications:
• Constructed from corrosion-resistant AISI 316L stainless steel, the housing ensures long-term durability in harsh or wash-down environments such as food manufacturing and chemical processing.
• Equipped with a stainless steel Ø18 mm output shaft, ideal for hygienic systems where exposure to moisture and corrosive substances is frequent.
• Features a stainless steel Ø14 mm input shaft for consistent performance and mechanical robustness in demanding conditions.
• Worm gear ratio of 28:1 provides precise torque control and reduced output speed, useful in automation systems requiring controlled motion, conveyor control, and dosing applications.
• Compact gear size N45 optimizes space efficiency in constrained mechanical layouts, making integration into existing systems seamless.
• Gear motor interface 71B14 ensures straightforward coupling with standard IEC electric motors, reducing installation and maintenance time.
• Operational efficiency of 65% ensures reliable power transmission while minimizing energy loss, crucial in long-duration industrial operations.
• Designed for easy cleaning and sanitation, the smooth, crevice-free design minimizes contamination risk in hygienic applications.
• Ideal for use in industries such as pharmaceutical production, food & beverage, marine systems, biotechnology, and packaging machinery. The Clean-Geartech N45 stainless steel worm gearbox is a robust, hygienically designed and highly configurable drive solution tailored for engineers and industry specialists demanding performance, cleanliness, and durability.
• Constructed from corrosion-resistant AISI 316L stainless steel, the housing ensures long-term durability in harsh or wash-down environments such as food manufacturing and chemical processing.
• Equipped with a stainless steel Ø18 mm output shaft, ideal for hygienic systems where exposure to moisture and corrosive substances is frequent.
• Features a stainless steel Ø14 mm input shaft for consistent performance and mechanical robustness in demanding conditions.
• Worm gear ratio of 28:1 provides precise torque control and reduced output speed, useful in automation systems requiring controlled motion, conveyor control, and dosing applications.
• Compact gear size N45 optimizes space efficiency in constrained mechanical layouts, making integration into existing systems seamless.
• Gear motor interface 71B14 ensures straightforward coupling with standard IEC electric motors, reducing installation and maintenance time.
• Operational efficiency of 65% ensures reliable power transmission while minimizing energy loss, crucial in long-duration industrial operations.
• Designed for easy cleaning and sanitation, the smooth, crevice-free design minimizes contamination risk in hygienic applications.
• Ideal for use in industries such as pharmaceutical production, food & beverage, marine systems, biotechnology, and packaging machinery. The Clean-Geartech N45 stainless steel worm gearbox is a robust, hygienically designed and highly configurable drive solution tailored for engineers and industry specialists demanding performance, cleanliness, and durability.
