Description

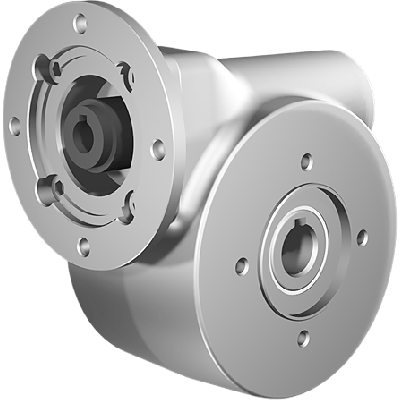

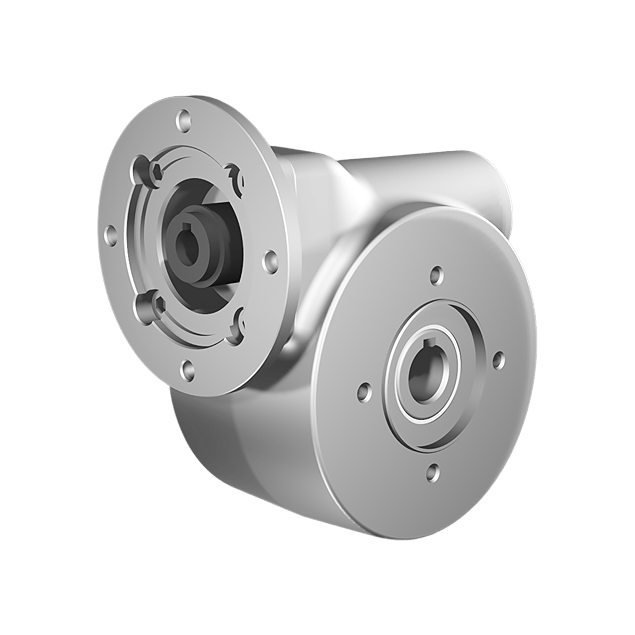

Clean-Geartech is a leading manufacturer specialized in high-quality stainless steel gear solutions designed to meet the stringent demands of industrial and engineering environments. Clean-Geartech products are renowned for their durability, reliability, and superior resistance to corrosion, making them the preferred choice for applications requiring utmost hygiene and robust performance.**Product: Clean-Geartech N45, Worm Gear Ø18, 28:1, Input 63B14, Stainless Steel**
The gear housing and key components are made from AISI 316L stainless steel, ensuring superior corrosion resistance for use in aggressive, washdown, or hygienic environments.
Equipped with a stainless steel (SS) output shaft (Ø18 mm), ideal for chemical, food, pharmaceutical, and marine applications where hygiene and resistance against acids or chlorides are required.
High gear ratio of 28:1 allows precise torque transmission and speed reduction, suitable for conveyor systems, mixers, and dosing units demanding controlled motion.
Input shaft diameter of 11 mm and output dimension conform to industry standards, ensuring easy integration with existing motors and equipment.
Gear motor interface 63B14 supports rapid assembly with standard IEC B14 motors, reducing installation time for modular system setups.
Efficiency of 65% provides effective power utilization, balancing performance and energy consumption in industrial processing lines and automated systems.
Compact N45 gear size promotes easy installation in space-constrained machinery layouts, facilitating retrofit and new design projects.
Maintenance-friendly stainless steel design resists contamination and supports thorough cleaning, complying with strict hygiene standards in sensitive industries.
The gear housing and key components are made from AISI 316L stainless steel, ensuring superior corrosion resistance for use in aggressive, washdown, or hygienic environments.
Equipped with a stainless steel (SS) output shaft (Ø18 mm), ideal for chemical, food, pharmaceutical, and marine applications where hygiene and resistance against acids or chlorides are required.
High gear ratio of 28:1 allows precise torque transmission and speed reduction, suitable for conveyor systems, mixers, and dosing units demanding controlled motion.
Input shaft diameter of 11 mm and output dimension conform to industry standards, ensuring easy integration with existing motors and equipment.
Gear motor interface 63B14 supports rapid assembly with standard IEC B14 motors, reducing installation time for modular system setups.
Efficiency of 65% provides effective power utilization, balancing performance and energy consumption in industrial processing lines and automated systems.
Compact N45 gear size promotes easy installation in space-constrained machinery layouts, facilitating retrofit and new design projects.
Maintenance-friendly stainless steel design resists contamination and supports thorough cleaning, complying with strict hygiene standards in sensitive industries.
Specifications
IP classification
IP66
Material
Stainless steel AISI 316L
Ratio
28:1
BCD input
75
BCD output
65
Efficiency (%)
65
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
50
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.33
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Foreign trade
HS-Code
84834025
ERP net weight (Kg)
5.30
Country of origin
ITA
