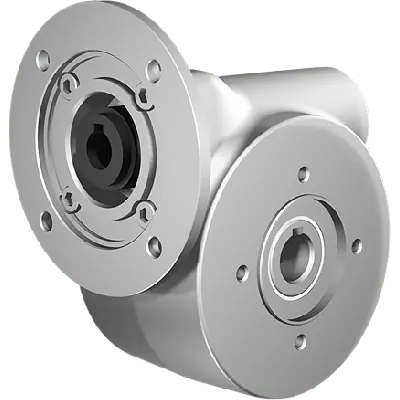

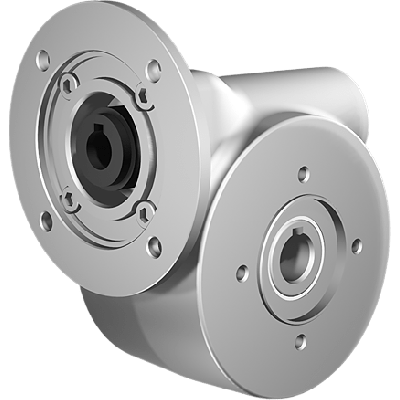

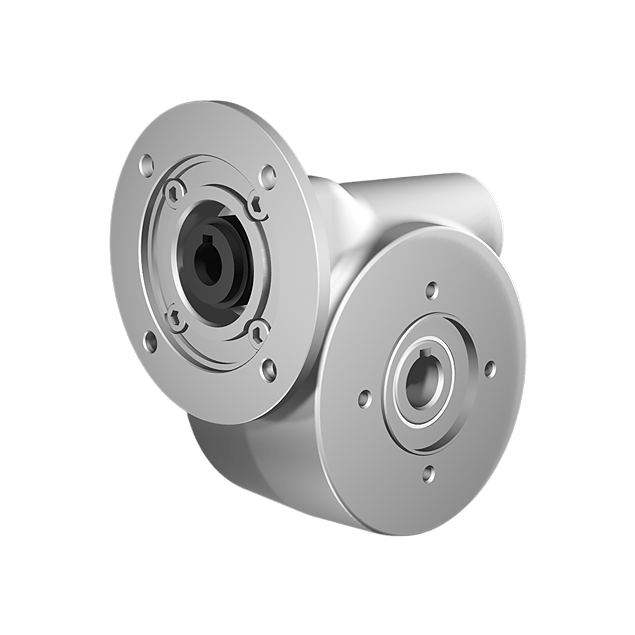

Clean-Geartech N45, worm gear Ø18, 21:1, input 71B14, stainless steel
HV82PN45UNIN040MBINN-QB3-C-OFFeaturing a 21:1 gear ratio and a gear size of N45, this reducer delivers efficient torque transmission with 67% efficiency. It has a 14 mm input shaft and a 18 mm output shaft, suitable for standardized drive connections. The gear motor interface is 71B14, ensuring compatibility with IEC standard motors.Constructed with AISI 316L stainless steel gears, it provides high resistance to aggressive environments. The design incorporates a BCD input of 85 mm and a BCD output of 65 mm, ready for integration in hygienic or corrosive settings.
Specifications
Product description
Downloads
€626.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
21:1
BCD input
85
BCD output
65
Efficiency (%)
67
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
67
Max output torque (Nm)
41
Max kW input at 1400 rpm
0.43
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is an established European specialist within hygienic transmission solutions, recognized for their premium worm gearboxes designed specifically for demanding industrial environments. Operating across food processing, pharmaceutical, and chemical sectors, Clean-Geartech emphasizes stainless steel construction and optimized hygienic design that minimizes contamination risks while ensuring long-lasting durability under aggressive cleaning conditions.The Clean-Geartech N45 stainless steel worm gearbox offers high-performance torque transmission for specialized engineering applications. Built entirely from AISI 316L stainless steel, this 21:1 ratio gearbox is designed to maximize corrosion resistance, hygiene, and mechanical robustness.Key Features and Application Benefits:
• Constructed from AISI 316L stainless steel, the entire gear housing ensures superior corrosion resistance in aggressive washdown or chemical environments—ideal for food, pharma, and offshore industries.
• Output shaft of Ø18 mm in stainless steel provides rigid mechanical coupling, ensuring reliable power transmission even under fluctuating or high-torque loads.
• Input interface 71B14 allows seamless integration with standardized IEC motors, simplifying system design and maintenance for engineers and integrators.
• Gearbox ratio of 21:1 delivers controlled torque increase and precise speed reduction, making it suitable for conveying systems, mixers, and automated dosing equipment.
• Efficiency at 67% optimizes energy transfer for worm gear performance, providing a balance between durability and power consumption.
• Input shaft diameter Ø14 mm enables compatibility with multiple motor types and coupling configurations.
• Gear size N45 offers compact dimensions, allowing space-saving integration into machinery with limited footprint requirements.
• BCD input 85 mm and BCD output 65 mm support precise flange mounting, enhancing mechanical stability and alignment in installation assemblies.
• Designed for industries requiring strict hygiene standards—suitable for CIP (Clean-In-Place) systems and FDA-compliant processes.This gearbox model exemplifies Clean-Geartech’s commitment to combining hygienic design, materials engineering, and mechanical efficiency into a single transmission unit tailored for technical specialists across demanding industrial sectors.
• Constructed from AISI 316L stainless steel, the entire gear housing ensures superior corrosion resistance in aggressive washdown or chemical environments—ideal for food, pharma, and offshore industries.
• Output shaft of Ø18 mm in stainless steel provides rigid mechanical coupling, ensuring reliable power transmission even under fluctuating or high-torque loads.
• Input interface 71B14 allows seamless integration with standardized IEC motors, simplifying system design and maintenance for engineers and integrators.
• Gearbox ratio of 21:1 delivers controlled torque increase and precise speed reduction, making it suitable for conveying systems, mixers, and automated dosing equipment.
• Efficiency at 67% optimizes energy transfer for worm gear performance, providing a balance between durability and power consumption.
• Input shaft diameter Ø14 mm enables compatibility with multiple motor types and coupling configurations.
• Gear size N45 offers compact dimensions, allowing space-saving integration into machinery with limited footprint requirements.
• BCD input 85 mm and BCD output 65 mm support precise flange mounting, enhancing mechanical stability and alignment in installation assemblies.
• Designed for industries requiring strict hygiene standards—suitable for CIP (Clean-In-Place) systems and FDA-compliant processes.This gearbox model exemplifies Clean-Geartech’s commitment to combining hygienic design, materials engineering, and mechanical efficiency into a single transmission unit tailored for technical specialists across demanding industrial sectors.
