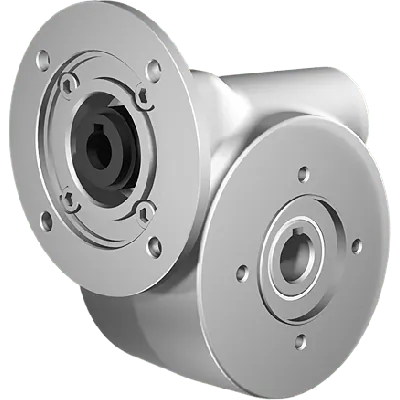

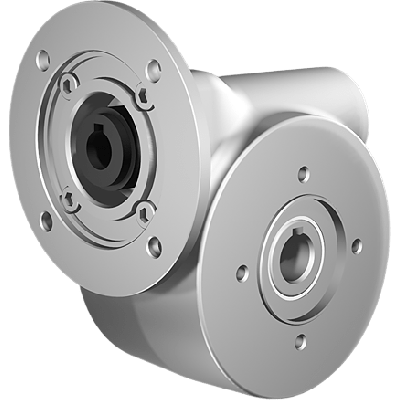

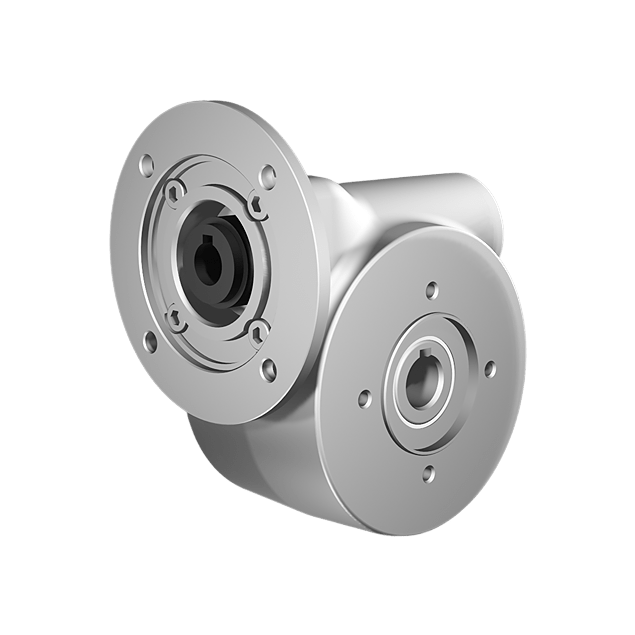

Clean-Geartech N45, worm gear Ø18, 14:1, input 71B14, stainless steel
HV82PN45UNIN030MBINN-QB3-C-OFFeaturing a 14:1 ratio and a gear size N45, this unit delivers effective torque conversion with 77% efficiency. The gearbox includes a gear input shaft diameter of 14 mm and a gear output shaft diameter of 18 mm for compatibility with standard motor and drive systems. Its input flange interface is 71B14, suitable for IEC motors.Critical components such as the worm and wheel are made from stainless steel AISI 316L, making it ideal for demanding and hygienic environments. The gearbox has a BCD input of 85 mm and a BCD output of 65 mm, ensuring straightforward installation and integration.
Specifications
Product description
Downloads
€626.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
14:1
BCD input
85
BCD output
65
Efficiency (%)
77
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
100
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.41
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading European manufacturer of high-performance stainless steel gearboxes, dedicated to providing hygienic and corrosion-resistant solutions for demanding industrial environments. With a focus on innovation, reliability, and clean design, Clean-Geartech products are engineered to meet the strict hygienic and mechanical standards required in industries like food & beverage, pharmaceuticals, marine, and chemical processing.Highlighted Features and Application Benefits:
Fully constructed in AISI 316L stainless steel: Maximum corrosion resistance, ideal for use in aggressive and washdown environments such as food processing, chemical plants, and offshore installations.
Integrated worm gear with 14:1 ratio: Provides controlled torque transfer and speed reduction in compact spaces — optimal for applications like conveyors, mixers, and dosing systems where space-saving and precision are critical.
High hygiene design: Smooth, crevice-free surfaces minimize bacterial accumulation, supporting use in cleanrooms, sanitary operations, or environments requiring strict hygiene compliance.
Output bore diameter Ø18 mm (stainless steel hollow shaft): Ensures direct, corrosion-resistant coupling to driven shafts — ideal for consistent, reliable torque transmission in demanding setups.
Input interface B14 (IEC 71 motor compatible): Enables seamless integration with standard IEC motors — simplifies installation and allows for versatile motor configurations.
Input shaft Ø14 mm: Durable and standardized to suit a wide range of industrial motor inputs — ensures flexible adaptation in various drive systems.
Total efficiency of 77%: Robust power transmission efficiency ensures dependable performance while minimizing energy loss — suitable for continuous duty applications.
Compact gear size N45: Space-saving for integration into confined machinery layouts while maintaining high strength and performance under load.
Gear output torque capability (BCD output 65 mm): Supports moderate to high torque applications, providing mechanical reliability across automation systems.Recommended Industries:
✓ Food & Beverage Processing ✓ Marine and Offshore Applications ✓ Pharmaceutical and Biotech Machines ✓ Chemical Handling Systems ✓ Wastewater Treatment Equipment ✓ Packaging and Conveyor AutomationChoose Clean-Geartech when performance, durability, and hygiene matter. Engineered for the harshest environments.
Fully constructed in AISI 316L stainless steel: Maximum corrosion resistance, ideal for use in aggressive and washdown environments such as food processing, chemical plants, and offshore installations.
Integrated worm gear with 14:1 ratio: Provides controlled torque transfer and speed reduction in compact spaces — optimal for applications like conveyors, mixers, and dosing systems where space-saving and precision are critical.
High hygiene design: Smooth, crevice-free surfaces minimize bacterial accumulation, supporting use in cleanrooms, sanitary operations, or environments requiring strict hygiene compliance.
Output bore diameter Ø18 mm (stainless steel hollow shaft): Ensures direct, corrosion-resistant coupling to driven shafts — ideal for consistent, reliable torque transmission in demanding setups.
Input interface B14 (IEC 71 motor compatible): Enables seamless integration with standard IEC motors — simplifies installation and allows for versatile motor configurations.
Input shaft Ø14 mm: Durable and standardized to suit a wide range of industrial motor inputs — ensures flexible adaptation in various drive systems.
Total efficiency of 77%: Robust power transmission efficiency ensures dependable performance while minimizing energy loss — suitable for continuous duty applications.
Compact gear size N45: Space-saving for integration into confined machinery layouts while maintaining high strength and performance under load.
Gear output torque capability (BCD output 65 mm): Supports moderate to high torque applications, providing mechanical reliability across automation systems.Recommended Industries:
✓ Food & Beverage Processing ✓ Marine and Offshore Applications ✓ Pharmaceutical and Biotech Machines ✓ Chemical Handling Systems ✓ Wastewater Treatment Equipment ✓ Packaging and Conveyor AutomationChoose Clean-Geartech when performance, durability, and hygiene matter. Engineered for the harshest environments.
