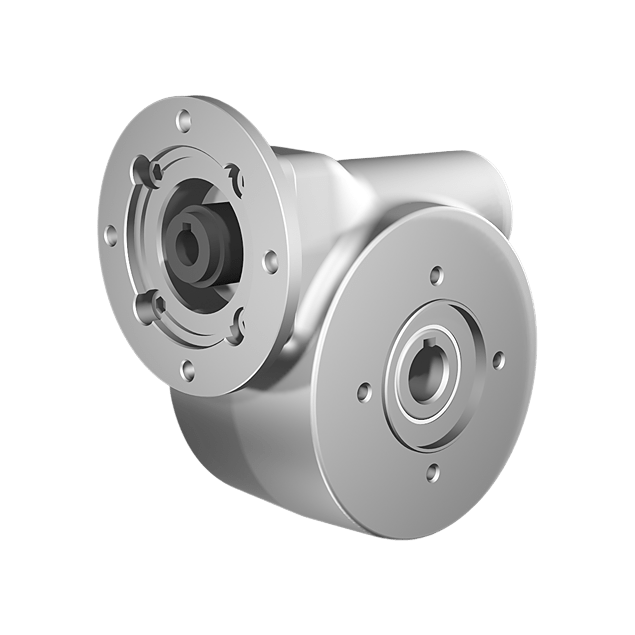

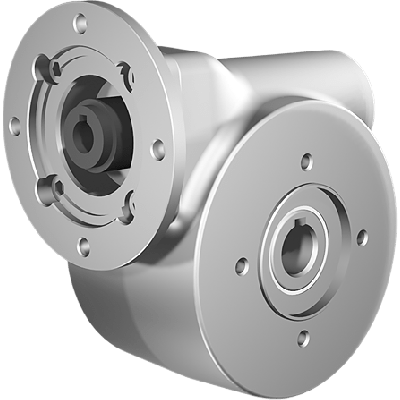

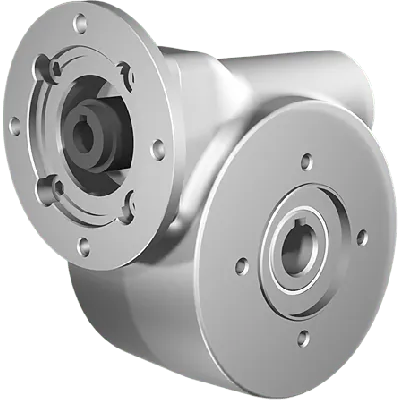

Clean-Geartech N45, worm gear Ø18, 14:1, input 63B14, stainless steel
HV82PN45UNIN030MBINN-PB3-B-OFFeaturing a gear ratio of 14:1 and a gear size N45, the unit ensures consistent transmission for medium torque applications. The input shaft diameter is 11 mm, while the output shaft diameter is 18 mm. With a motor interface of 63B14, it integrates easily into standard setups.The gear housing and components are made from AISI 316L stainless steel, supporting use in demanding environments. It offers 77% efficiency, with a BCD input of 75 mm and BCD output of 65 mm. Engineered for durability and compatibility, this gearbox supports clean operation in technical installations.
Specifications
Product description
Downloads
€621.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
14:1
BCD input
75
BCD output
65
Efficiency (%)
77
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
100
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.41
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a globally recognized manufacturer specializing in high-performance hygienic gear solutions, tailored for industries requiring uncompromising durability and corrosion resistance. Known for precision-engineered products using premium stainless steel materials, Clean-Geartech designs gearboxes that meet rigorous standards in sectors like food processing, pharmaceuticals, marine, and chemical processing.Product: Clean-Geartech N45, Worm Gear Ø18, 14:1, Input 63B14, Stainless SteelKey Features, Benefits, and Application Possibilities:
• Fully constructed from AISI 316L stainless steel – ensures exceptional corrosion resistance, making it ideal for harsh environments such as food & beverage, pharmaceutical, and marine applications.
• Compact N45 gear size offers a space-saving solution for integration into confined machinery setups without compromising torque output.
• 14:1 gear ratio enables precise speed reduction and torque amplification, optimal for conveyors, mixers, and dosing systems requiring controlled motion.
• High-performance worm gearbox configuration provides reliable, self-locking capabilities – eliminating the need for additional braking mechanisms in vertical or load-holding functions.
• Compatible with 63B14 IEC motor interface – ensuring easy integration with standardized drive systems and flexible retrofit applications.
• Input shaft diameter: 11 mm – designed for high-speed motor coupling, delivering smooth torque transmission with minimal backlash.
• Output shaft diameter: 18 mm (SS hollow shaft) – engineered for secure torque delivery with rust-free performance in sterile or washdown environments.
• Mechanical efficiency up to 77% – reducing energy losses while maintaining reliable torque delivery, contributing to system energy optimization in continuous operations.
• Suitable for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures due to the hygienic design and non-porous stainless steel surfaces.
• Ideal for integration in dosing units, augers, rotary valves, and automated filling systems within cleanroom or high-humidity industrial zones.
• Designed for long life cycle and minimal maintenance, reducing total cost of ownership and increasing productivity in continuous process environments.
• Fully constructed from AISI 316L stainless steel – ensures exceptional corrosion resistance, making it ideal for harsh environments such as food & beverage, pharmaceutical, and marine applications.
• Compact N45 gear size offers a space-saving solution for integration into confined machinery setups without compromising torque output.
• 14:1 gear ratio enables precise speed reduction and torque amplification, optimal for conveyors, mixers, and dosing systems requiring controlled motion.
• High-performance worm gearbox configuration provides reliable, self-locking capabilities – eliminating the need for additional braking mechanisms in vertical or load-holding functions.
• Compatible with 63B14 IEC motor interface – ensuring easy integration with standardized drive systems and flexible retrofit applications.
• Input shaft diameter: 11 mm – designed for high-speed motor coupling, delivering smooth torque transmission with minimal backlash.
• Output shaft diameter: 18 mm (SS hollow shaft) – engineered for secure torque delivery with rust-free performance in sterile or washdown environments.
• Mechanical efficiency up to 77% – reducing energy losses while maintaining reliable torque delivery, contributing to system energy optimization in continuous operations.
• Suitable for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures due to the hygienic design and non-porous stainless steel surfaces.
• Ideal for integration in dosing units, augers, rotary valves, and automated filling systems within cleanroom or high-humidity industrial zones.
• Designed for long life cycle and minimal maintenance, reducing total cost of ownership and increasing productivity in continuous process environments.
