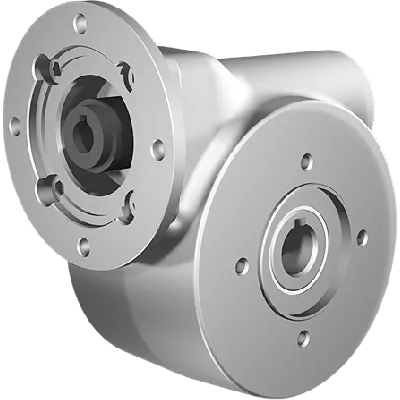

Clean-Geartech N45, worm gear Ø18, 102:1, input 71B14, stainless steel
HV82PN45UNIN100MBINN-QB3-C-OFFeaturing a gear ratio of 102:1 and a gear size N45, this unit delivers effective torque transmission. The gear input shaft diameter is 14 mm, and the gear output shaft diameter is 18 mm. The gear motor interface is 71B14, ensuring compatibility with standard motor sizes.Constructed with stainless steel AISI 316L gearing, the product offers reliable resistance to corrosion. It supports a BCD input of 85 mm and a BCD output of 65 mm. The system efficiency is 49%.
Specifications
Product description
Downloads
€626.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
102:1
BCD input
85
BCD output
65
Efficiency (%)
49
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
13.7
Max output torque (Nm)
29
Max kW input at 1400 rpm
0.09
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product: Clean-Geartech N45, Worm Gearbox Ø18, 102:1, Input 71B14, Stainless Steel
Manufactured entirely from AISI 316L stainless steel, this gearbox provides excellent corrosion resistance, ideal for hygienic environments and applications with aggressive media exposure.
The worm gear design with a 102:1 ratio offers high torque output in a compact footprint, optimizing power transmission where space is limited.
Equipped with a Ø18 mm solid output shaft and Ø14 mm input shaft, allowing easy integration into standard industrial setups requiring reliable mechanical interface compatibility.
Features a B14 flange motor interface (size 71), ensuring easy and standardized motor connection that minimizes installation time and increases system modularity.
Low backdrive characteristics inherent in worm gear technology ensure safe holding capabilities in vertical or heavy-load applications, enhancing overall system control.
The 49% efficiency is typical for stainless steel worm gearboxes, ensuring reliable operation in intermittent or low-duty applications where cleanliness and robustness are prioritized over continuous high-efficiency output.
The compact N45 size allows use in machines with restricted space while maintaining mechanical strength and operational reliability.
Suitable for high-humidity and caustic washdown applications such as automated food lines, dairies, brewery facilities, and chemical dosing equipment.
Engineered for technical specialists requiring modular, corrosion-proof gear solutions that meet stringent hygienic or environmental standards.
Manufactured entirely from AISI 316L stainless steel, this gearbox provides excellent corrosion resistance, ideal for hygienic environments and applications with aggressive media exposure.
The worm gear design with a 102:1 ratio offers high torque output in a compact footprint, optimizing power transmission where space is limited.
Equipped with a Ø18 mm solid output shaft and Ø14 mm input shaft, allowing easy integration into standard industrial setups requiring reliable mechanical interface compatibility.
Features a B14 flange motor interface (size 71), ensuring easy and standardized motor connection that minimizes installation time and increases system modularity.
Low backdrive characteristics inherent in worm gear technology ensure safe holding capabilities in vertical or heavy-load applications, enhancing overall system control.
The 49% efficiency is typical for stainless steel worm gearboxes, ensuring reliable operation in intermittent or low-duty applications where cleanliness and robustness are prioritized over continuous high-efficiency output.
The compact N45 size allows use in machines with restricted space while maintaining mechanical strength and operational reliability.
Suitable for high-humidity and caustic washdown applications such as automated food lines, dairies, brewery facilities, and chemical dosing equipment.
Engineered for technical specialists requiring modular, corrosion-proof gear solutions that meet stringent hygienic or environmental standards.
