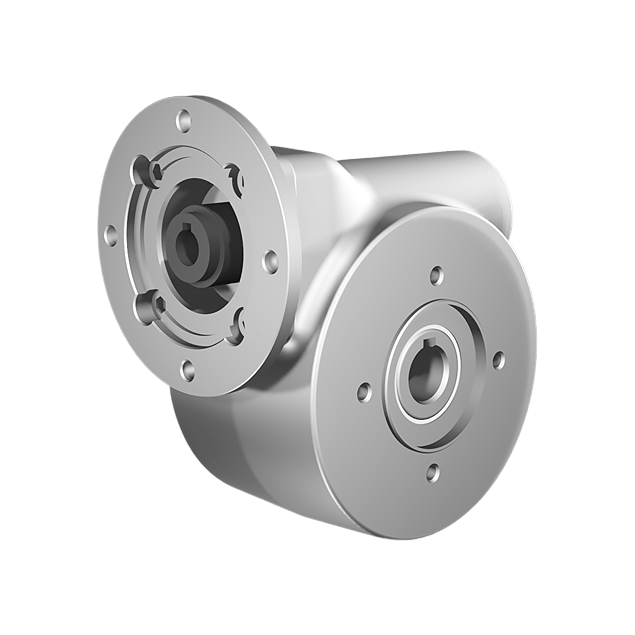

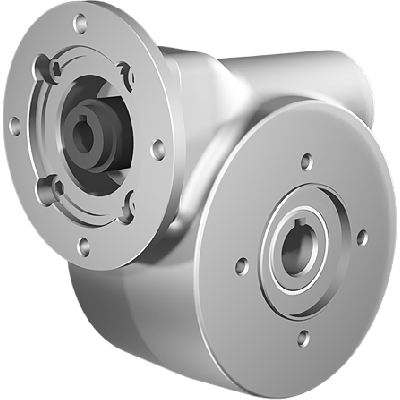

Clean-Geartech N45, worm gear Ø18, 102:1, input 63B14, stainless steel
HV82PN45UNIN100MBINN-PB3-B-OFThe Clean-Geartech N45 Worm Gearbox Ø18, 102:1, input 63B14, stainless steel is designed for robust applications requiring durability and reliability. Key attributes include: BCD input: 75 mm, BCD output: 65 mm, Efficiency: 49%, Gear input shaft: 11 mm, Gear output shaft: 18 mm, Ratio: 102:1, Gear size: N45, and Gear motor interface: 63B14. The gearing is made from stainless steel (AISI 316L), ensuring corrosion resistance and suitability for demanding environments. This configuration is well-suited for technical specialists and engineers requiring precise and clean power transmission solutions.
Specifications
Product description
Downloads
€621.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.300000
Material
Stainless steel AISI 316L
Ratio
102:1
BCD input
75
BCD output
65
Efficiency (%)
49
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
13.7
Max output torque (Nm)
29
Max kW input at 1400 rpm
0.09
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a specialized manufacturer of hygienic and robust drive solutions tailored for demanding industrial environments. Known for exceptional materials, precision engineering, and fully hygienic constructions, Clean-Geartech products are ideal for applications that require durability, corrosion resistance, and reliable performance, such as food, pharmaceutical, chemical, and marine industries.Key Applications and Benefits:
Constructed entirely from stainless steel AISI 316L, the gear ensures exceptional corrosion resistance and durability — ideal for harsh environments such as food processing, marine and pharmaceutical facilities.
With a high gear ratio of 102:1, the unit is perfect for torque-heavy applications that require precise and stable speed reduction, suitable for conveyor systems, mixers, packaging machines, and dosing technology.
The 63B14 motor interface provides easy integration with IEC standard motors, ensuring quick swap-out and seamless compatibility with existing industrial drive systems.
The compact N45 housing size offers space-saving installation in tight machinery layouts without compromising mechanical integrity or performance.
18mm output shaft made of stainless steel supports direct coupling to load components while offering resistance to wear and contamination from aggressive cleaning processes.
Hollow input shaft dimensioned at 11mm enables easy and secure connection to drive motors and ensures efficient torque transfer in compact units.
The stainless steel housed worm drive delivers hygienic superiority — essential for CIP (Clean-In-Place) systems and washdown applications in food-grade environments.
Although the efficiency is 49%, the worm gear's self-locking capabilities at this ratio significantly improve safety and operational control in vertical or suspended loads.
Reliable performance in continuous and intermittent duty cycles makes it suitable for automated production lines where uptime and low maintenance are critical.
Designed with industry specialists in mind, this gear unit combines long service life, hygienic design, and engineering precision suitable for critical automation and mechanical systems.
Constructed entirely from stainless steel AISI 316L, the gear ensures exceptional corrosion resistance and durability — ideal for harsh environments such as food processing, marine and pharmaceutical facilities.
With a high gear ratio of 102:1, the unit is perfect for torque-heavy applications that require precise and stable speed reduction, suitable for conveyor systems, mixers, packaging machines, and dosing technology.
The 63B14 motor interface provides easy integration with IEC standard motors, ensuring quick swap-out and seamless compatibility with existing industrial drive systems.
The compact N45 housing size offers space-saving installation in tight machinery layouts without compromising mechanical integrity or performance.
18mm output shaft made of stainless steel supports direct coupling to load components while offering resistance to wear and contamination from aggressive cleaning processes.
Hollow input shaft dimensioned at 11mm enables easy and secure connection to drive motors and ensures efficient torque transfer in compact units.
The stainless steel housed worm drive delivers hygienic superiority — essential for CIP (Clean-In-Place) systems and washdown applications in food-grade environments.
Although the efficiency is 49%, the worm gear's self-locking capabilities at this ratio significantly improve safety and operational control in vertical or suspended loads.
Reliable performance in continuous and intermittent duty cycles makes it suitable for automated production lines where uptime and low maintenance are critical.
Designed with industry specialists in mind, this gear unit combines long service life, hygienic design, and engineering precision suitable for critical automation and mechanical systems.
