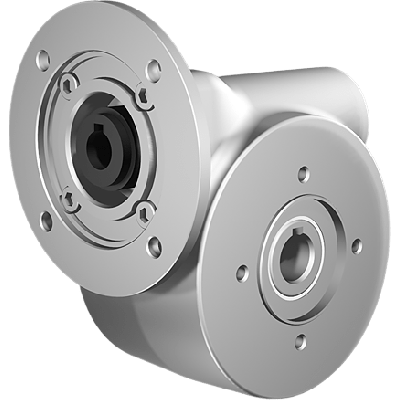

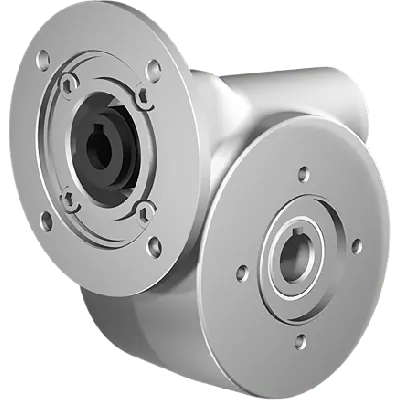

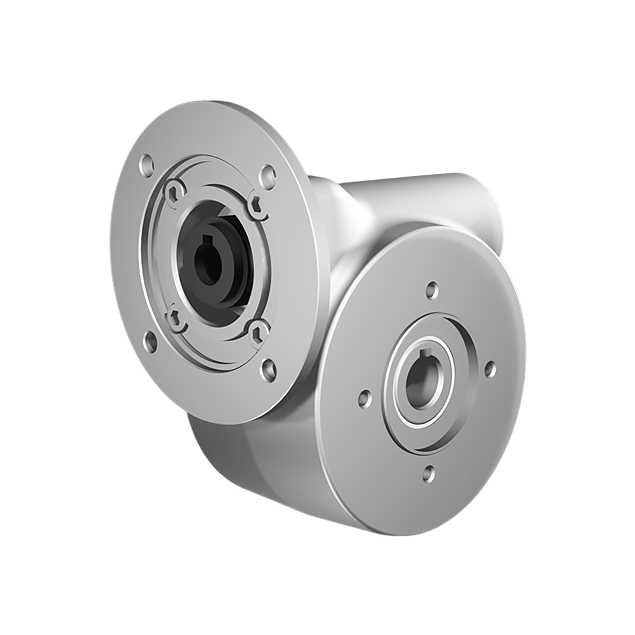

Clean-Geartech N45, worm gear Ø18, 10:1, input 71B14, stainless steel
HV82PN45UNIN020MBINN-QB3-C-OFIt features a gear ratio of 10:1 and a gear size N45, offering efficient torque conversion. With a BCD input of 85 mm and a BCD output of 65 mm, the unit provides a reliable mechanical interface. The input shaft diameter is 14 mm and the output shaft diameter is 18 mm. The gear motor interface is 71B14, ensuring compatibility with IEC-standard motors. The gearbox achieves an efficiency of 79%, and all gear components are made from stainless steel AISI 316L for durability and resistance to harsh environments.
Specifications
Product description
Downloads
€626.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
85
BCD output
65
Efficiency (%)
79
Gear output shaft (mm)
18
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
N45
Output speed at 1400 RPM
140
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.57
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a trusted manufacturer specializing in high-performance, hygienic gear solutions for demanding industrial environments. Known for exceptional durability and corrosion resistance, Clean-Geartech provides components tailored for sectors such as food processing, pharmaceuticals, and chemical manufacturing — all where hygiene, robustness, and reliability are non-negotiable.Product Features & Applications:
Constructed entirely in AISI 316L stainless steel for outstanding corrosion resistance — ideal for hygienic environments such as food & beverage, dairy, and pharmaceutical applications.
Worm gear configuration provides a compact gear solution with high torque transmission, suitable for space-constrained and precision-demanding systems like conveyors, mixers, or packaging lines.
Features a robust 10:1 gear ratio — optimal for reducing motor speed while efficiently increasing torque output, supporting controlled motion in process automation.
Gear input shaft diameter of 14 mm ensures compatibility with a broad range of standard electric motors, facilitating easy mechanical integration.
Equipped with 18 mm stainless steel output shaft for high strength and alignment precision — supports dynamic loads in applications like rotary tables, pumps, or dosing systems.
Compatible with IEC motor interface 71B14 — simplifies integration into existing machine setups using standardized motor mounts.
Overall efficiency of 79% offers a solid performance-to-energy ratio for continuous-duty industrial tasks without compromising durability.
Compact N45 gear size makes it suitable for decentralized drive applications where installation space is a constraint.
BCD Input: 85 mm and BCD Output: 65 mm — ensures straightforward mounting and interconnection with mechanical assemblies.
Designed for cleanroom compatibility or aggressive cleaning protocols typical in CIP/SIP environments — extending lifecycle and minimizing contamination risks.
Constructed entirely in AISI 316L stainless steel for outstanding corrosion resistance — ideal for hygienic environments such as food & beverage, dairy, and pharmaceutical applications.
Worm gear configuration provides a compact gear solution with high torque transmission, suitable for space-constrained and precision-demanding systems like conveyors, mixers, or packaging lines.
Features a robust 10:1 gear ratio — optimal for reducing motor speed while efficiently increasing torque output, supporting controlled motion in process automation.
Gear input shaft diameter of 14 mm ensures compatibility with a broad range of standard electric motors, facilitating easy mechanical integration.
Equipped with 18 mm stainless steel output shaft for high strength and alignment precision — supports dynamic loads in applications like rotary tables, pumps, or dosing systems.
Compatible with IEC motor interface 71B14 — simplifies integration into existing machine setups using standardized motor mounts.
Overall efficiency of 79% offers a solid performance-to-energy ratio for continuous-duty industrial tasks without compromising durability.
Compact N45 gear size makes it suitable for decentralized drive applications where installation space is a constraint.
BCD Input: 85 mm and BCD Output: 65 mm — ensures straightforward mounting and interconnection with mechanical assemblies.
Designed for cleanroom compatibility or aggressive cleaning protocols typical in CIP/SIP environments — extending lifecycle and minimizing contamination risks.
