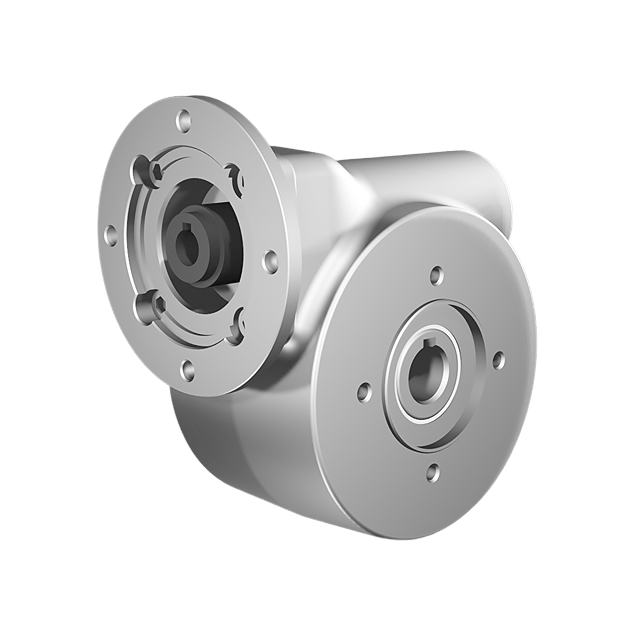

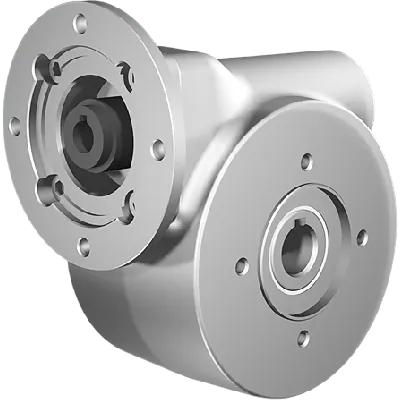

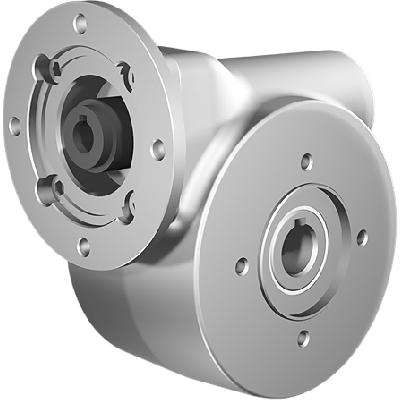

Clean-Geartech N45, worm gear Ø18, 10:1, input 63B14, stainless steel
HV82PN45UNIN020MBINN-PB3-B-OFIt features a 10:1 gear ratio and a N45 gear size, ensuring compatibility with various drive systems. The input shaft diameter is 11 mm, while the output shaft measures 18 mm. Constructed with AISI 316L stainless steel gears and a stainless steel (SS) hollow output shaft, the unit offers high corrosion resistance. The input flange follows 63B14 specifications, supporting standard motor interfaces. Additional specifications include a BCD input of 75 mm and BCD output of 65 mm. System efficiency is 79%.
Specifications
Product description
Downloads
€621.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
75
BCD output
65
Efficiency (%)
79
Gear output shaft (mm)
18
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N45
Output speed at 1400 RPM
140
Max output torque (Nm)
30
Max kW input at 1400 rpm
0.57
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Product: Clean-Geartech N45 Worm Gearbox Ø18, 10:1 Ratio, Input 63B14, Stainless SteelKey Features & Benefits:
Constructed from AISI 316L stainless steel gear housing — optimal for hygienic applications requiring high corrosion resistance, such as food processing and chemical environments.
10:1 gear ratio — ideal for speed reduction and increased torque in system applications like conveyors, mixers, or packaging equipment.
High-grade stainless steel Ø18 mm output shaft — robust, hygienic, and resistant to wear and aggressive cleaning agents, suitable for washdown and sterile zones.
79% efficiency — excellent power transmission performance for a worm gear, leading to energy savings and reduced operational costs.
Input shaft diameter Ø11 mm — standardized to allow fast and compatible integration with common motor types, reducing installation time.
Motor interface 63B14 — compatible with IEC standard motors, allowing engineers flexibility in motor configuration and replacement.
N45 compact gear size — space-efficient design enables easy installation in tight or confined machinery layouts while maintaining durability and reliability.
Sealed and corrosion-resistant — ideal for continuous operation in wet and chemically aggressive environments found in marine, pharmaceutical, and dairy production areas.
Perfect for applications with strict hygiene requirements — from meat processing lines and sterile filling systems to offshore and cleanroom-grade robotics.Trust Clean-Geartech for long-lasting, rugged performance in the most demanding industrial conditions. Clean-Geartech N45 delivers consistent power, ease of maintenance, and exceptional hygiene compliance in one compact gearbox solution.
Constructed from AISI 316L stainless steel gear housing — optimal for hygienic applications requiring high corrosion resistance, such as food processing and chemical environments.
10:1 gear ratio — ideal for speed reduction and increased torque in system applications like conveyors, mixers, or packaging equipment.
High-grade stainless steel Ø18 mm output shaft — robust, hygienic, and resistant to wear and aggressive cleaning agents, suitable for washdown and sterile zones.
79% efficiency — excellent power transmission performance for a worm gear, leading to energy savings and reduced operational costs.
Input shaft diameter Ø11 mm — standardized to allow fast and compatible integration with common motor types, reducing installation time.
Motor interface 63B14 — compatible with IEC standard motors, allowing engineers flexibility in motor configuration and replacement.
N45 compact gear size — space-efficient design enables easy installation in tight or confined machinery layouts while maintaining durability and reliability.
Sealed and corrosion-resistant — ideal for continuous operation in wet and chemically aggressive environments found in marine, pharmaceutical, and dairy production areas.
Perfect for applications with strict hygiene requirements — from meat processing lines and sterile filling systems to offshore and cleanroom-grade robotics.Trust Clean-Geartech for long-lasting, rugged performance in the most demanding industrial conditions. Clean-Geartech N45 delivers consistent power, ease of maintenance, and exceptional hygiene compliance in one compact gearbox solution.
