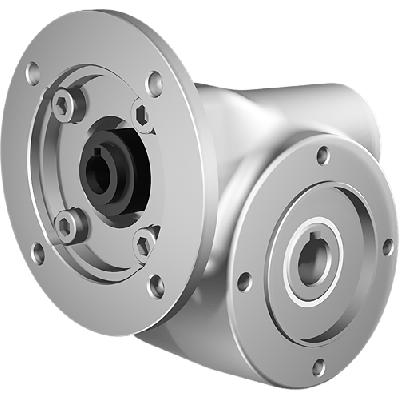

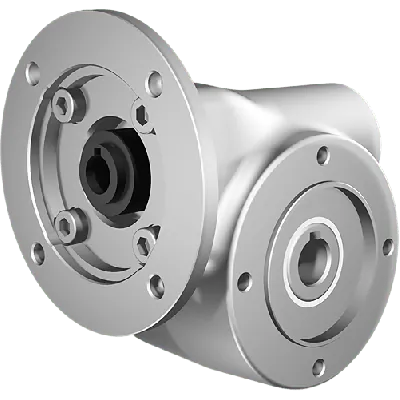

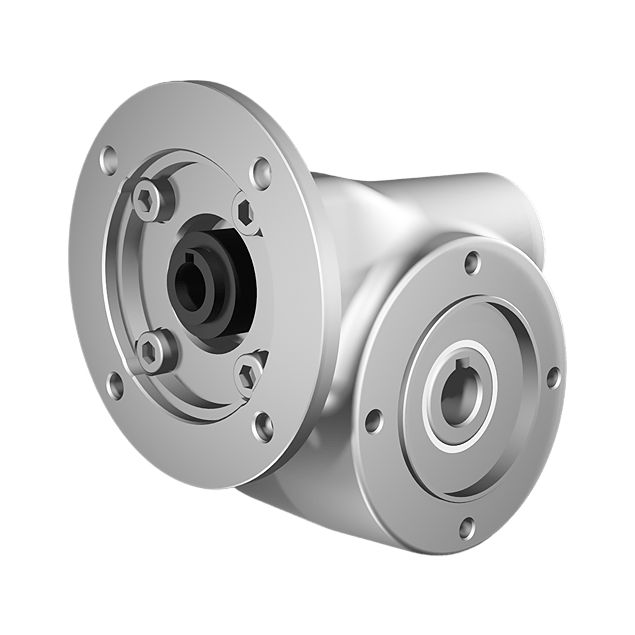

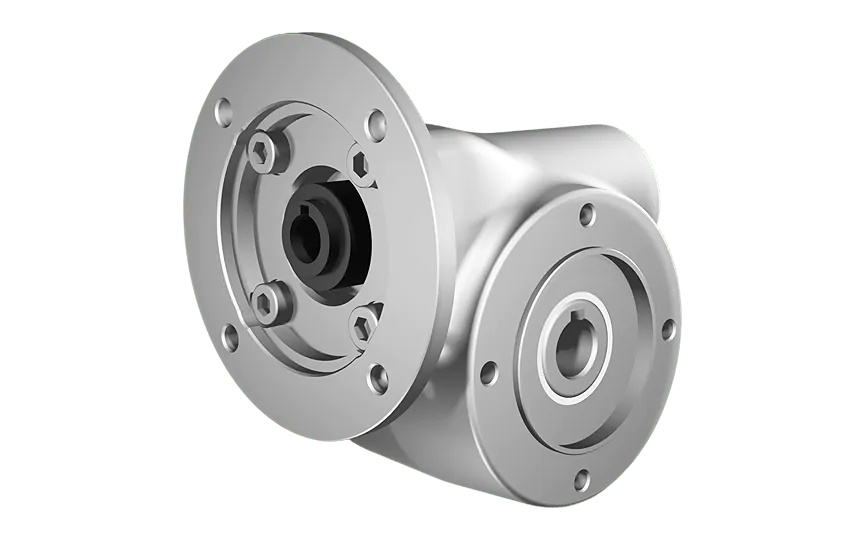

Clean-Geartech N30, worm gear Ø14, 80:1, input 63B14, stainless steel
HV82PN30UNIN080MAINN-PB3-B-OFThe Clean-Geartech N30, worm gear Ø14, 80:1, input 63B14, stainless steel, is a compact worm gear unit designed for demanding environments. It features a gear ratio of 80:1 and a gear efficiency of 48%, making it suitable for applications requiring substantial torque reduction. The input shaft diameter is 11 mm, while the output shaft diameter is 14 mm. The unit has a gear input interface of 63B14 and a gear size classified as N30. Built for durability, it includes a gear assembly made of stainless steel AISI 316L, ensuring corrosion resistance and high reliability in harsh settings. The component also features BCD input at 75 mm and BCD output at 65 mm.
Specifications
Product description
Downloads
€471.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
80:1
BCD input
75
BCD output
65
Efficiency (%)
48
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
17.5
Max output torque (Nm)
16
Max kW input at 1400 rpm
0.06
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Description:Clean-Geartech is renowned for delivering high-performance stainless steel gear solutions tailored for demanding industrial environments. Specializing in hygienic, corrosion-resistant drive components, Clean-Geartech’s products are designed for industries requiring uncompromised reliability, durability, and cleanliness—ideal for food processing, pharmaceutical manufacturing, marine, and chemical applications where hygiene and environment resistance are mission critical.Key Features, Applications, and Benefits:
Constructed from AISI 316L stainless steel, the Clean-Geartech N30 is built for environments with high chemical exposure, offering superior corrosion resistance for use in food & beverage, pharmaceutical, and offshore industries.
The worm gear transmission with an 80:1 ratio ensures smooth and powerful torque reduction, ideal for applications requiring precise motion control and high gear reduction in limited spaces.
The stainless steel Ø14 mm output shaft (SS output shaft) increases mechanical durability and hygiene compatibility, making it suitable for CIP (Clean-In-Place) processes and washdown environments.
Standardized 63B14 motor interface ensures easy mounting of IEC standard motors, enhancing versatility across a wide range of industrial automation and machinery systems.
The compact N30 gear size enables integration into constrained mechanical systems without compromising on torque or durability, making it efficient for packaging lines and compact conveyor systems.
The Ø11 mm input shaft provides adaptive compatibility for coupling with standard mechanical drive systems, simplifying integration into industrial automation frameworks.
Efficiency of 48% is typical for worm gear setups, providing high torque at low speed while minimizing backlash—suitable for load-holding applications such as lifting mechanisms or indexing conveyors.
BCD 75 input and BCD 65 output configuration support standardized assembly, facilitating quick replacement, retrofitting, and modular integration into existing machinery layouts.
Engineered for reliability and long service life in continuous operation scenarios where maintenance access is limited or environmental ingress must be prevented.The Clean-Geartech N30 worm gearbox exemplifies rugged advanced engineering for precision-driven sectors—where clean design, corrosion resistance, and operational reliability converge.
Constructed from AISI 316L stainless steel, the Clean-Geartech N30 is built for environments with high chemical exposure, offering superior corrosion resistance for use in food & beverage, pharmaceutical, and offshore industries.
The worm gear transmission with an 80:1 ratio ensures smooth and powerful torque reduction, ideal for applications requiring precise motion control and high gear reduction in limited spaces.
The stainless steel Ø14 mm output shaft (SS output shaft) increases mechanical durability and hygiene compatibility, making it suitable for CIP (Clean-In-Place) processes and washdown environments.
Standardized 63B14 motor interface ensures easy mounting of IEC standard motors, enhancing versatility across a wide range of industrial automation and machinery systems.
The compact N30 gear size enables integration into constrained mechanical systems without compromising on torque or durability, making it efficient for packaging lines and compact conveyor systems.
The Ø11 mm input shaft provides adaptive compatibility for coupling with standard mechanical drive systems, simplifying integration into industrial automation frameworks.
Efficiency of 48% is typical for worm gear setups, providing high torque at low speed while minimizing backlash—suitable for load-holding applications such as lifting mechanisms or indexing conveyors.
BCD 75 input and BCD 65 output configuration support standardized assembly, facilitating quick replacement, retrofitting, and modular integration into existing machinery layouts.
Engineered for reliability and long service life in continuous operation scenarios where maintenance access is limited or environmental ingress must be prevented.The Clean-Geartech N30 worm gearbox exemplifies rugged advanced engineering for precision-driven sectors—where clean design, corrosion resistance, and operational reliability converge.
