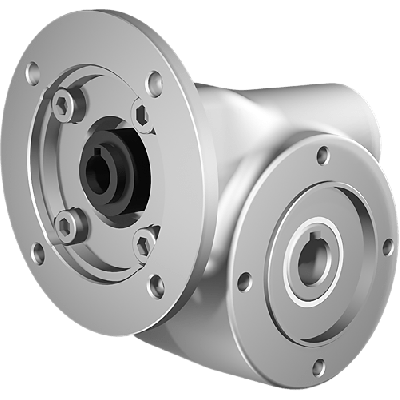

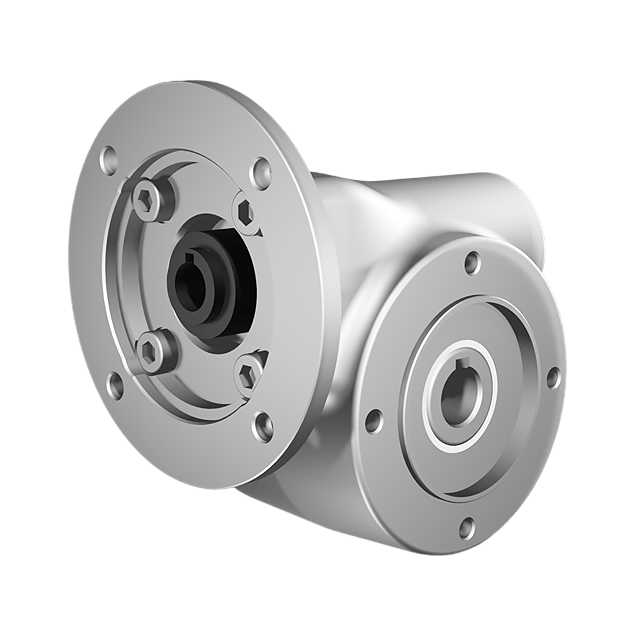

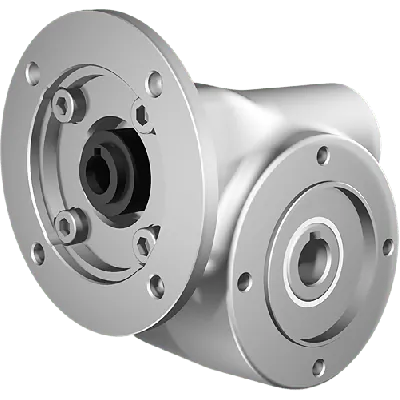

Clean-Geartech N30, worm gear Ă˜14, 7:1, input 63B14, stainless steel
HV82PN30UNIN010MAINN-PB3-B-OFThe Clean-Geartech N30 worm gear Ă˜14, 7:1, input 63B14, stainless steel is built for demanding industrial environments. Key attributes: BCD input: 75 mm, BCD output: 65 mm, Effciency: 80%, Input shaft: 11 mm, Gear material: Stainless steel AISI 316L, Gear motor interface: 63B14, Output shaft: 14 mm, Ratio: 7:1, Gear size: N30. The stainless steel design ensures high corrosion resistance and durability, suitable for hygiene-critical applications. For further specification or dimensioned drawings, refer to product documentation.
Specifications
Product description
Downloads
€471.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.300000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
75
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
200
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.44
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a leading manufacturer of hygienic and durable gear solutions tailored for demanding industrial applications. Known for precision engineering and high-quality stainless steel components, Clean-Geartech delivers superior performance where hygiene, corrosion resistance, and reliability are essential. Their products are widely used in industries such as food processing, chemical production, pharmaceutical manufacturing, and marine technologies.Product Application Description:
✓ Manufactured from premium AISI 316L stainless steel, the gear housing offers exceptional corrosion resistance, making it ideal for use in washdown areas, clean rooms, marine environments, and aggressive chemical applications.
✓ The 7:1 gear ratio is optimized for high-torque, low-speed output requirements—perfect for conveyor systems, mixers, dosing equipment, and automation units where precision movement is essential.
✓ Equipped with a 14 mm stainless steel output shaft (SS output shaft) that ensures mechanical durability and resistance to harsh cleaning agents, supporting sterile and hygienic production environments.
✓ Compact N30 frame size allows easy integration into systems with limited space, as seen in packaging machines, robotic handling systems, and compact production setups.
✓ Achieves 80% mechanical efficiency, reducing energy consumption and heat generation—suitable for extended operation cycles in high-demand technical processes.
✓ Input shaft (11 mm) compatible with 63B14 motor interface allows seamless connection to standard IEC motors, facilitating hassle-free installation and system compatibility.
✓ Robust internal worm gear mechanism provides smooth torque transmission and self-locking capability, supporting vertical load applications like hoists and lifting systems.
✓ Smooth surface design and stainless steel construction reduce bacterial retention and allow for high-pressure cleaning, fulfilling EHEDG guidelines and FDA requirements.
✓ Designed for highly technical applications in food & beverage, biopharma, and clean manufacturing operations where contamination control and long-term durability are critical.
✓ Manufactured from premium AISI 316L stainless steel, the gear housing offers exceptional corrosion resistance, making it ideal for use in washdown areas, clean rooms, marine environments, and aggressive chemical applications.
✓ The 7:1 gear ratio is optimized for high-torque, low-speed output requirements—perfect for conveyor systems, mixers, dosing equipment, and automation units where precision movement is essential.
✓ Equipped with a 14 mm stainless steel output shaft (SS output shaft) that ensures mechanical durability and resistance to harsh cleaning agents, supporting sterile and hygienic production environments.
✓ Compact N30 frame size allows easy integration into systems with limited space, as seen in packaging machines, robotic handling systems, and compact production setups.
✓ Achieves 80% mechanical efficiency, reducing energy consumption and heat generation—suitable for extended operation cycles in high-demand technical processes.
✓ Input shaft (11 mm) compatible with 63B14 motor interface allows seamless connection to standard IEC motors, facilitating hassle-free installation and system compatibility.
✓ Robust internal worm gear mechanism provides smooth torque transmission and self-locking capability, supporting vertical load applications like hoists and lifting systems.
✓ Smooth surface design and stainless steel construction reduce bacterial retention and allow for high-pressure cleaning, fulfilling EHEDG guidelines and FDA requirements.
✓ Designed for highly technical applications in food & beverage, biopharma, and clean manufacturing operations where contamination control and long-term durability are critical.
