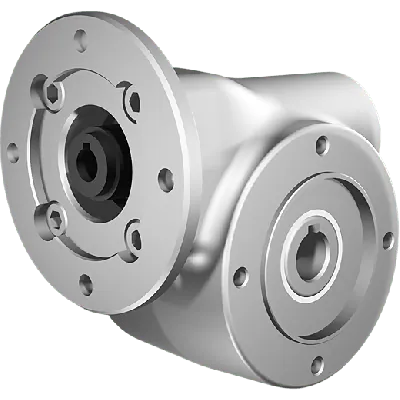

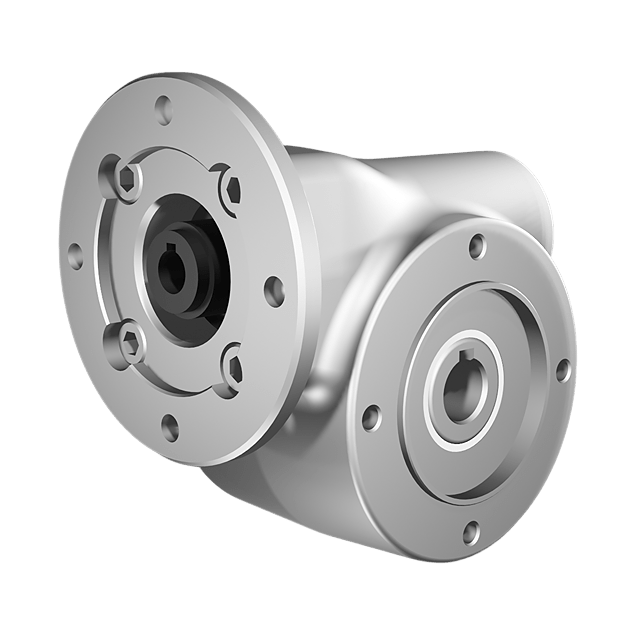

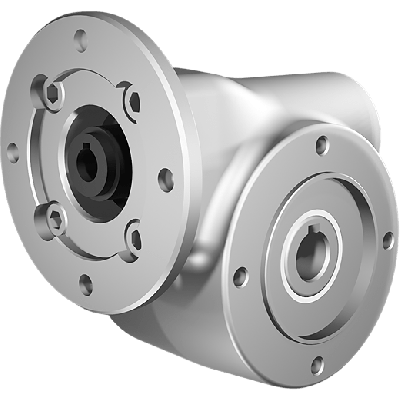

Clean-Geartech N30, worm gear Ø14, 7:1, input 56B14, stainless steel
HV82PN30UNIN010MAINN-OB3-A-OFIt features a gear ratio of 7:1 and a gear efficiency of 80%, making it suitable for torque conversion in compact assemblies. The input shaft diameter is 9 mm, while the output shaft diameter is 14 mm.Both the worm gear and housing are made from stainless steel AISI 316L, ensuring resistance to corrosion in harsh environments. The unit uses a 56B14 motor interface and is built in the N30 gear frame size.The Clean-Geartech N30 features a stainless steel hollow shaft, enhancing durability and hygiene in process-critical industries. It supports BCD 65 mm input and output interfaces.
Specifications
Product description
Downloads
€489.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
7:1
BCD input
65
BCD output
65
Efficiency (%)
80
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
N30
Output speed at 1400 RPM
200
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.44
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech N30 Worm Gearbox Ø14, 7:1, Input 56B14, Stainless Steel Clean-Geartech is a leading manufacturer specializing in high-performance stainless steel gear solutions, designed specifically for demanding industrial environments. Their products are engineered for maximum durability, hygiene, and corrosion resistance, making them ideal for sectors including food processing, pharmaceuticals, marine applications, and chemical processing industries.The Clean-Geartech N30 Worm Gearbox is built entirely from AISI 316L stainless steel and offers a robust and compact gearing solution with a 7:1 ratio. Its design ensures both reliability and hygiene, even in highly aggressive or washdown-prone environments. Below are key features and practical benefits:
100% AISI 316L Stainless Steel Housing: Ensures unrivaled corrosion resistance, optimal for hygienic-critical applications such as food & beverage or pharmaceutical production.
Stainless Steel Hollow Output Shaft Ø14 mm: Designed for harsh environments and resistant to wear, making it ideal for marine, offshore, and aggressive chemical sectors.
Input Shaft Ø9 mm with B14 Flange (56B14): Encoding compatibility with IEC motors ensures quick integration into existing drive systems for standardized industrial setups.
High Torque Output with 7:1 Ratio: Delivers efficient mechanical advantage in compact spaces, suitable for conveying, dosing, and automation machinery.
80% Mechanical Efficiency: Provides optimized energy consumption and reduced heat loss during operation, ensuring long life and cost-efficiency.
Compact Gear Size N30: A space-efficient design tailored for applications where footprint reduction without compromising performance is critical.
Precision Engineering from Clean-Geartech: Trusted by engineers worldwide for hygienic, maintenance-free stainless steel gearbox solutions. This gearbox is particularly suited for environments requiring both high hygiene standards and mechanical robustness. Its stainless steel construction, standardized motor interface, and optimized ratio make it a versatile choice for engineers and technical specialists integrating gear units into industrial automation solutions.
100% AISI 316L Stainless Steel Housing: Ensures unrivaled corrosion resistance, optimal for hygienic-critical applications such as food & beverage or pharmaceutical production.
Stainless Steel Hollow Output Shaft Ø14 mm: Designed for harsh environments and resistant to wear, making it ideal for marine, offshore, and aggressive chemical sectors.
Input Shaft Ø9 mm with B14 Flange (56B14): Encoding compatibility with IEC motors ensures quick integration into existing drive systems for standardized industrial setups.
High Torque Output with 7:1 Ratio: Delivers efficient mechanical advantage in compact spaces, suitable for conveying, dosing, and automation machinery.
80% Mechanical Efficiency: Provides optimized energy consumption and reduced heat loss during operation, ensuring long life and cost-efficiency.
Compact Gear Size N30: A space-efficient design tailored for applications where footprint reduction without compromising performance is critical.
Precision Engineering from Clean-Geartech: Trusted by engineers worldwide for hygienic, maintenance-free stainless steel gearbox solutions. This gearbox is particularly suited for environments requiring both high hygiene standards and mechanical robustness. Its stainless steel construction, standardized motor interface, and optimized ratio make it a versatile choice for engineers and technical specialists integrating gear units into industrial automation solutions.
