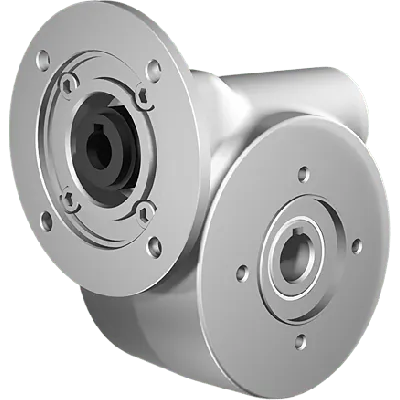

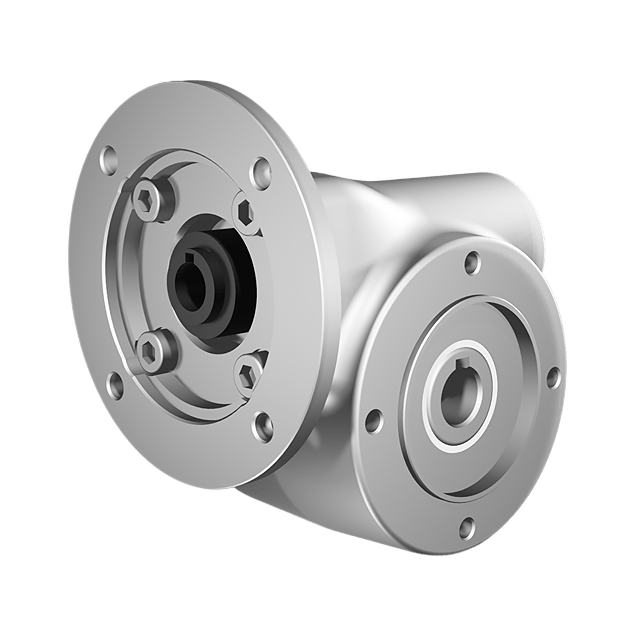

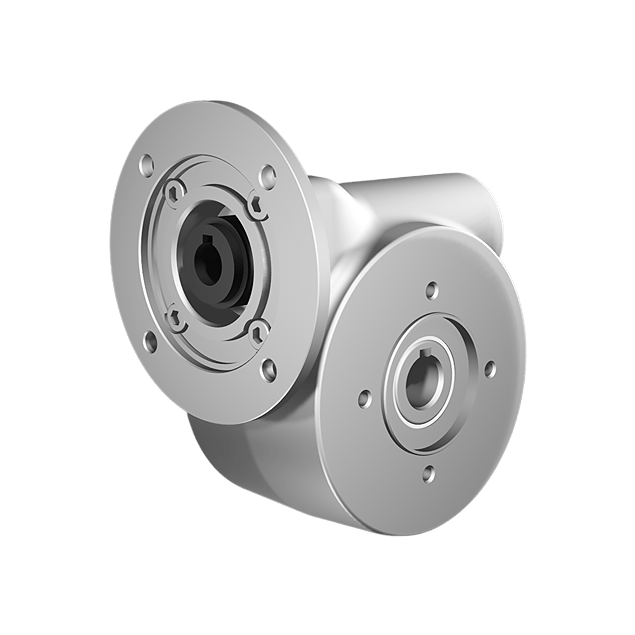

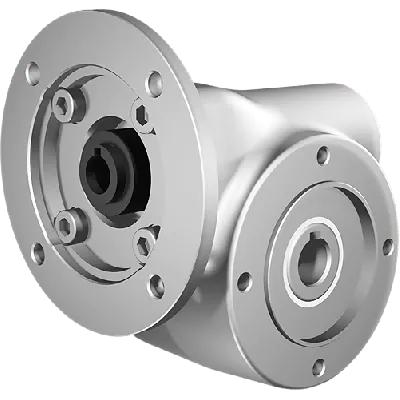

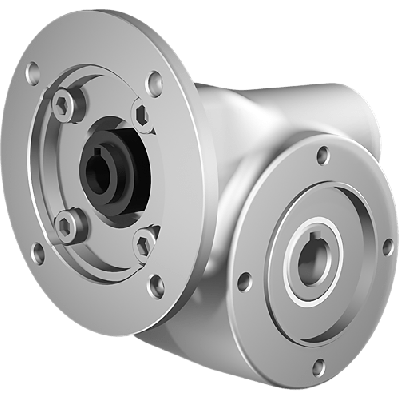

Clean-Geartech N30, worm gear Ø14, 61:1, input 63B14, stainless steel
HV82PN30UNIN070MAINN-PB3-B-OFThe Clean-Geartech N30 Worm Gear Ø14, 61:1, Input 63B14, Stainless Steel is designed for demanding applications requiring corrosion resistance and compact performance. It features a gear ratio of 61:1 and a gear size of N30. The gear input shaft is Ø11 mm, while the output shaft is Ø14 mm. The unit interfaces with a 63B14 gear motor. Constructed with stainless steel AISI 316L gears, this gear unit ensures enhanced durability in industrial environments. The efficiency is rated at 50%, with BCD input at 75 mm and BCD output at 65 mm.
Specifications
Product description
Downloads
€471.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
61:1
BCD input
75
BCD output
65
Efficiency (%)
50
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
23
Max output torque (Nm)
20
Max kW input at 1400 rpm
0.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech N30 Worm Gearbox is engineered for high-demand industrial applications where hygiene, corrosion resistance, and durability are critical. Produced by Clean-Geartech — a leading manufacturer known for premium stainless steel transmission solutions — this gearbox combines robust performance with industry-grade cleanliness, making it ideal for use in food processing, pharmaceuticals, offshore facilities, and chemical environments.Key Features and Applications:
✓ Fully constructed from AISI 316L stainless steel, the housing provides exceptional resistance to corrosion, aggressive detergents, and saline environments — ideal for cleanroom applications and CIP (Clean-in-Place) systems
✓ Equipped with a stainless steel (SS) output hollow shaft of 14 mm, offering superior durability and resistance to wear — perfect for hygienic conveyor systems and driven rollers in food or beverage production
✓ Gear ratio of 61:1 allows for high torque output at low rotational speeds — suitable for dosing systems, agitators, and slow-speed precision drives
✓ Efficiency rated at 50%, optimized for intermittent duty cycles where high output torque is prioritized over power consumption — supporting batch production processes and indexing tables
✓ The 63B14 motor interface ensures compatibility with a range of IEC-standard motors — simplifying system integration and reducing development time in OEM applications
✓ Compact design with Gear Size N30 and 11 mm input shaft makes it ideal for space-constrained installations — such as automated guided vehicles (AGVs), packaging machines, or robotics
✓ Hygienic construction with no paint or coating, combined with smooth surfaces for easy washdown — ensures compliance with strict cleanliness requirements in FDA and EHEDG-certified environments
✓ High-performance worm gear ensures quiet and low-vibration operation — critical for labs, clean zones, and noise-sensitive industrial zonesThe Clean-Geartech N30 stainless steel worm gearbox is the reliable choice for engineers and technical professionals who demand robust, hygienic, and compact power transmission solutions.
✓ Fully constructed from AISI 316L stainless steel, the housing provides exceptional resistance to corrosion, aggressive detergents, and saline environments — ideal for cleanroom applications and CIP (Clean-in-Place) systems
✓ Equipped with a stainless steel (SS) output hollow shaft of 14 mm, offering superior durability and resistance to wear — perfect for hygienic conveyor systems and driven rollers in food or beverage production
✓ Gear ratio of 61:1 allows for high torque output at low rotational speeds — suitable for dosing systems, agitators, and slow-speed precision drives
✓ Efficiency rated at 50%, optimized for intermittent duty cycles where high output torque is prioritized over power consumption — supporting batch production processes and indexing tables
✓ The 63B14 motor interface ensures compatibility with a range of IEC-standard motors — simplifying system integration and reducing development time in OEM applications
✓ Compact design with Gear Size N30 and 11 mm input shaft makes it ideal for space-constrained installations — such as automated guided vehicles (AGVs), packaging machines, or robotics
✓ Hygienic construction with no paint or coating, combined with smooth surfaces for easy washdown — ensures compliance with strict cleanliness requirements in FDA and EHEDG-certified environments
✓ High-performance worm gear ensures quiet and low-vibration operation — critical for labs, clean zones, and noise-sensitive industrial zonesThe Clean-Geartech N30 stainless steel worm gearbox is the reliable choice for engineers and technical professionals who demand robust, hygienic, and compact power transmission solutions.
