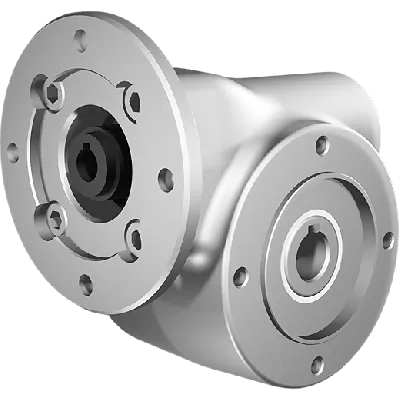

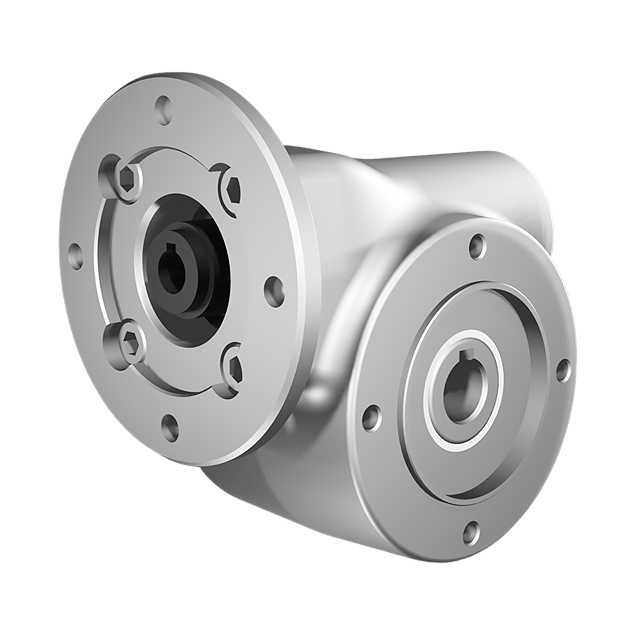

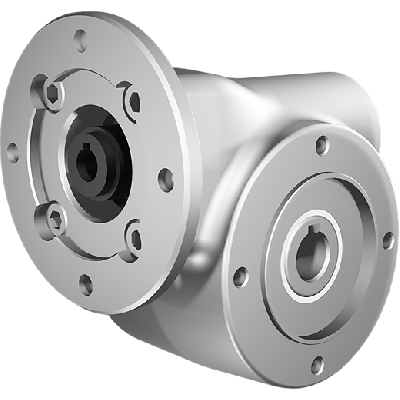

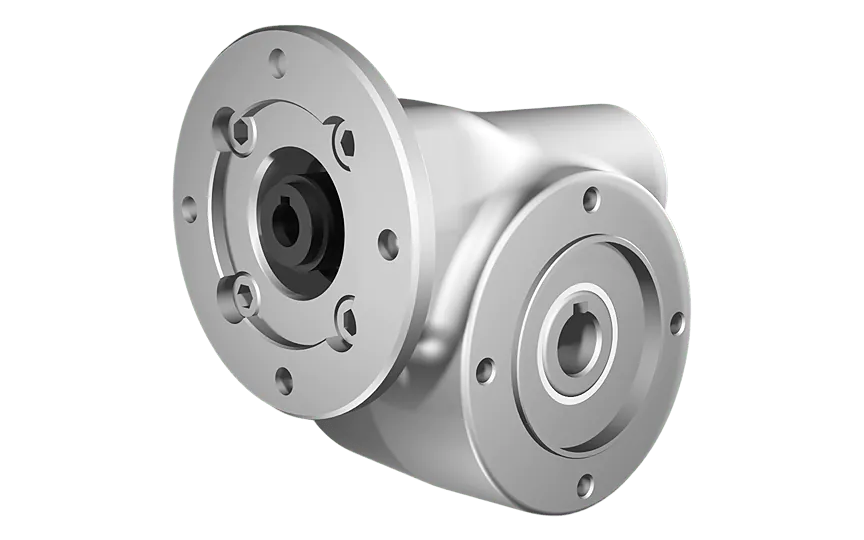

Clean-Geartech N30, worm gear Ø14, 61:1, input 56B14, stainless steel
HV82PN30UNIN070MAINN-OB3-A-OFFeaturing a gear size of N30 and a gear ratio of 61:1, it supports effective torque conversion. The unit has a gear input shaft diameter of 9 mm and a gear output shaft diameter of 14 mm. Built with AISI 316L stainless steel gears and a stainless steel (SS) hollow shaft, it ensures high corrosion resistance for harsh environments. It uses a BCD input and output of 65 and is compatible with motor interface 56B14. The efficiency is 50%, aligning with standard worm gear performance levels.
Specifications
Product description
Downloads
€489.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
61:1
BCD input
65
BCD output
65
Efficiency (%)
50
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
N30
Output speed at 1400 RPM
23
Max output torque (Nm)
20
Max kW input at 1400 rpm
0.1
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a trusted brand known for producing high-quality, hygienic gear solutions tailored for demanding industrial environments. With a focus on durability and sanitation, Clean-Geartech products are frequently used in food processing, pharmaceutical, chemical, and marine industries, where corrosion resistance and easy cleaning are essential. The N30 worm gearbox embodies this dedication with design and materials engineered to perform under strict hygienic standards.Key Features and Application Advantages:
Made of stainless steel AISI 316L: Exceptional resistance to corrosion and chemicals, ideal for aggressive washdown environments in food, pharmaceutical, and offshore applications.
Output shaft Ø14 mm (stainless steel): Provides optimal torque transmission with high mechanical strength, reliable for high-load and continuous-duty operations.
Gear input shaft Ø9 mm: Precise fit and compatibility with a wide range of standard motor couplings ensuring efficient power transfer in automated systems.
Gear motor interface B14 (size 56): Standardized flange mounting allows easy integration with IEC-standard motors, facilitating quick replacements or upgrades.
Gear ratio 61:1: Offers high torque multiplication and reduced output speed, suitable for material handling, dosing systems, conveyors, and motion control in robotics and automation.
Efficiency of 50%: Balanced between torque output and thermal performance, making it suitable for intermittent or continuous applications where energy loss is manageable.
Compact housing size N30: Small footprint for installations in constrained spaces, often required in cleanroom systems or transport machinery.
Smooth external surfaces: Facilitates easy cleaning and minimizes contamination risk, critical in hygienic-sensitive production lines. The Clean-Geartech N30 worm gear provides a robust and sterile solution for motion control in technically demanding industries. Its rugged yet hygienic design ensures long service life while meeting sanitation regulations across various sectors.
Made of stainless steel AISI 316L: Exceptional resistance to corrosion and chemicals, ideal for aggressive washdown environments in food, pharmaceutical, and offshore applications.
Output shaft Ø14 mm (stainless steel): Provides optimal torque transmission with high mechanical strength, reliable for high-load and continuous-duty operations.
Gear input shaft Ø9 mm: Precise fit and compatibility with a wide range of standard motor couplings ensuring efficient power transfer in automated systems.
Gear motor interface B14 (size 56): Standardized flange mounting allows easy integration with IEC-standard motors, facilitating quick replacements or upgrades.
Gear ratio 61:1: Offers high torque multiplication and reduced output speed, suitable for material handling, dosing systems, conveyors, and motion control in robotics and automation.
Efficiency of 50%: Balanced between torque output and thermal performance, making it suitable for intermittent or continuous applications where energy loss is manageable.
Compact housing size N30: Small footprint for installations in constrained spaces, often required in cleanroom systems or transport machinery.
Smooth external surfaces: Facilitates easy cleaning and minimizes contamination risk, critical in hygienic-sensitive production lines. The Clean-Geartech N30 worm gear provides a robust and sterile solution for motion control in technically demanding industries. Its rugged yet hygienic design ensures long service life while meeting sanitation regulations across various sectors.
