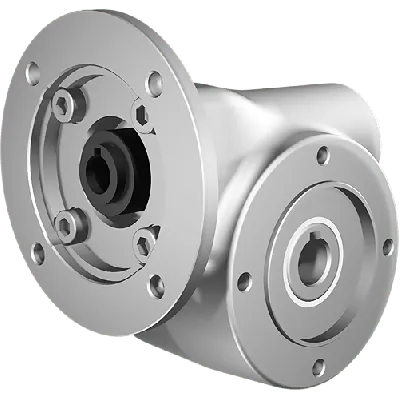

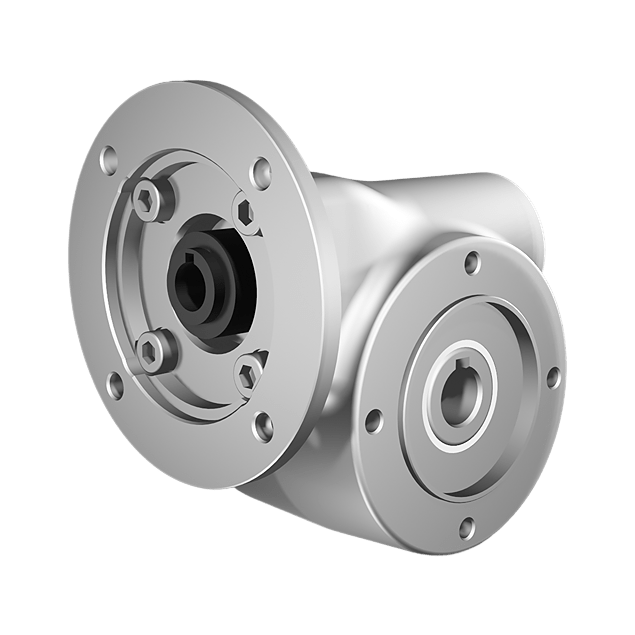

Clean-Geartech N30, worm gear Ø14, 5:1, input 63B14, stainless steel
HV82PN30UNIN090MAINN-PB3-B-OFThe Clean-Geartech N30 Worm Gear Ø14, 5:1, Input 63B14, Stainless Steel is designed for demanding industrial applications. Key attributes: BCD input: 75 mm, BCD output: 65 mm, Efficiency: 82%, Gear input shaft: 11 mm, Gear material: Stainless steel AISI 316L, Gear motor interface: 63B14, Gear output shaft: 14 mm, Ratio: 5:1, and Gear size: N30. This configuration ensures robust corrosion resistance and compatibility with standard motor interfaces. The housing and vital components are made from stainless steel, supporting use in environments requiring high hygiene and durability standards.
Specifications
Product description
Downloads
€471.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.300000
Material
Stainless steel AISI 316L
Ratio
5:1
BCD input
75
BCD output
65
Efficiency (%)
82
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
280
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.6
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a renowned manufacturer specializing in hygienic, corrosion-resistant gearing solutions, tailored specifically for demanding industrial environments. With a strong focus on engineering excellence and durability, Clean-Geartech products are designed for technical specialists and engineers focused on performance, regulatory compliance, and long-term reliability in sectors such as food & beverage, pharmaceutical, chemical, and marine industries.Key Features, Advantages & Application Potential:
✔ Constructed from stainless steel AISI 316L, the gear housing offers exceptional corrosion resistance, ideal for washdown applications and aggressive environments.
✔ Output shaft Ø14 mm made of stainless steel ensures compatibility with a wide range of industrial applications, while maintaining mechanical strength and sanitation standards.
✔ Worm gear ratio of 5:1 delivers high torque reduction, allowing efficient speed control and power transmission in compact mechanical systems.
✔ Input interface 63B14 is a widely adopted IEC standard, ensuring seamless integration with electric motors for modular configuration and ease of service.
✔ Input shaft Ø11 mm supports precision alignment and rigid output, addressing the high-performance needs of robotics, packaging, and automation systems.
✔ Compact gear size N30 adds design flexibility in space-constrained installations such as conveyors, mixers, and inspection systems.
✔ Efficiency rating of 82% optimizes power usage and minimizes losses, critical in energy-sensitive sectors including pharmaceutical and cleanroom applications.
✔ SS hollow shaft and exterior surfaces ensure full washdown compatibility, complying with hygiene and CIP (Clean-in-Place) standards in food processing plants.
✔ Suitable for marine and offshore use due to its high resistance to saltwater and harsh chemicals, reducing maintenance cycles and total cost of ownership.
✔ Engineered for reliability and long life, Clean-Geartech worm gears are extensively used in demanding industries where mechanical integrity and safety are paramount.Total character count: ~1,614 characters including spaces.
✔ Constructed from stainless steel AISI 316L, the gear housing offers exceptional corrosion resistance, ideal for washdown applications and aggressive environments.
✔ Output shaft Ø14 mm made of stainless steel ensures compatibility with a wide range of industrial applications, while maintaining mechanical strength and sanitation standards.
✔ Worm gear ratio of 5:1 delivers high torque reduction, allowing efficient speed control and power transmission in compact mechanical systems.
✔ Input interface 63B14 is a widely adopted IEC standard, ensuring seamless integration with electric motors for modular configuration and ease of service.
✔ Input shaft Ø11 mm supports precision alignment and rigid output, addressing the high-performance needs of robotics, packaging, and automation systems.
✔ Compact gear size N30 adds design flexibility in space-constrained installations such as conveyors, mixers, and inspection systems.
✔ Efficiency rating of 82% optimizes power usage and minimizes losses, critical in energy-sensitive sectors including pharmaceutical and cleanroom applications.
✔ SS hollow shaft and exterior surfaces ensure full washdown compatibility, complying with hygiene and CIP (Clean-in-Place) standards in food processing plants.
✔ Suitable for marine and offshore use due to its high resistance to saltwater and harsh chemicals, reducing maintenance cycles and total cost of ownership.
✔ Engineered for reliability and long life, Clean-Geartech worm gears are extensively used in demanding industries where mechanical integrity and safety are paramount.Total character count: ~1,614 characters including spaces.
