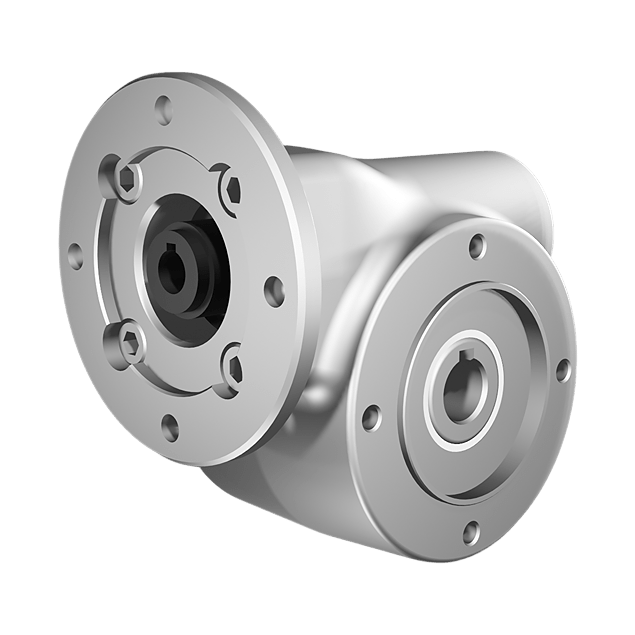

Clean-Geartech N30, worm gear Ø14, 5:1, input 56B14, stainless steel
HV82PN30UNIN090MAINN-OB3-A-OFThis unit features a gear size of N30 and a 5:1 gear ratio. It includes a gear input shaft diameter of 9 mm and a gear output shaft diameter of 14 mm. The gear motor interface is 56B14, allowing easy integration with standard motors. With BCD input and output of 65 mm and an efficiency of 82%, the unit ensures reliable torque transmission. The gears are made of stainless steel AISI 316L, providing high durability and chemical resistance, suitable for food, pharma, or marine applications.
Specifications
Product description
Downloads
€489.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
5:1
BCD input
65
BCD output
65
Efficiency (%)
82
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
N30
Output speed at 1400 RPM
280
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.6
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Manufacturer Introduction:Clean-Geartech is a trusted brand specializing in high-performance, hygienic gear solutions engineered for demanding industrial environments. With a focus on precision, corrosion resistance, and robust build quality, Clean-Geartech’s stainless steel gear units are particularly suited for the food processing, pharmaceutical, chemical, and marine industries.Key Features, Benefits, and Applications:
Robust housing made from AISI 316L stainless steel allows for use in highly corrosive environments, ideal for hygienic applications and frequent washdowns in food, beverage, and pharmaceutical industries.
High efficiency rating of 82% improves energy savings and reduces heat generation, enhancing performance in continuous operation and energy-conscious setups.
5:1 gear ratio provides efficient speed reduction while maintaining torque, perfect for conveyor systems, processing equipment, and rotary mechanisms requiring controlled speed and high output torque.
Input interface compatible with IEC standard 56B14 motors, providing seamless integration with a wide range of motor types used in industrial applications.
9 mm input shaft diameter ensures compact system design without compromising torque transmission—suitable for smaller spaces or decentralized drive configurations.
14 mm output shaft diameter supports stable power transmission and is suitable for coupling with various shaft-driven machinery in automation, material handling, and dosing systems.
Stainless steel output shaft (SS hollow shaft adaptation possible) enhances durability and corrosion resistance in aggressive atmospheres or for offshore applications.
Compact size (N30 housing) enables installation in tight spaces while maintaining mechanical reliability and performance—excellent for skid-based equipment layouts.
Precision worm gear mechanism ensures smooth and noise-reduced operation—a vital feature for cleanroom environments or industries with strict acoustic or vibration standards.
Designed for long operational life with minimal maintenance, reducing downtime and service costs across lifecycle in harsh industrial settings. This gear unit is engineered to deliver reliability and sanitation in the most demanding technical environments. Clean-Geartech continues to set benchmarks in hygienic drive technology with proven quality and innovation.
Robust housing made from AISI 316L stainless steel allows for use in highly corrosive environments, ideal for hygienic applications and frequent washdowns in food, beverage, and pharmaceutical industries.
High efficiency rating of 82% improves energy savings and reduces heat generation, enhancing performance in continuous operation and energy-conscious setups.
5:1 gear ratio provides efficient speed reduction while maintaining torque, perfect for conveyor systems, processing equipment, and rotary mechanisms requiring controlled speed and high output torque.
Input interface compatible with IEC standard 56B14 motors, providing seamless integration with a wide range of motor types used in industrial applications.
9 mm input shaft diameter ensures compact system design without compromising torque transmission—suitable for smaller spaces or decentralized drive configurations.
14 mm output shaft diameter supports stable power transmission and is suitable for coupling with various shaft-driven machinery in automation, material handling, and dosing systems.
Stainless steel output shaft (SS hollow shaft adaptation possible) enhances durability and corrosion resistance in aggressive atmospheres or for offshore applications.
Compact size (N30 housing) enables installation in tight spaces while maintaining mechanical reliability and performance—excellent for skid-based equipment layouts.
Precision worm gear mechanism ensures smooth and noise-reduced operation—a vital feature for cleanroom environments or industries with strict acoustic or vibration standards.
Designed for long operational life with minimal maintenance, reducing downtime and service costs across lifecycle in harsh industrial settings. This gear unit is engineered to deliver reliability and sanitation in the most demanding technical environments. Clean-Geartech continues to set benchmarks in hygienic drive technology with proven quality and innovation.
