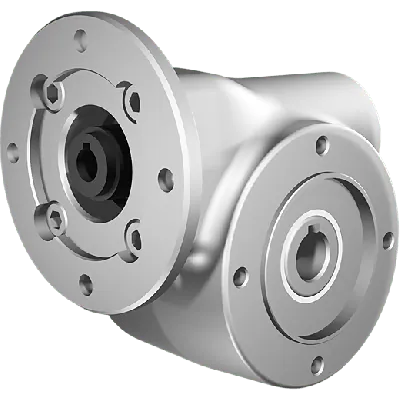

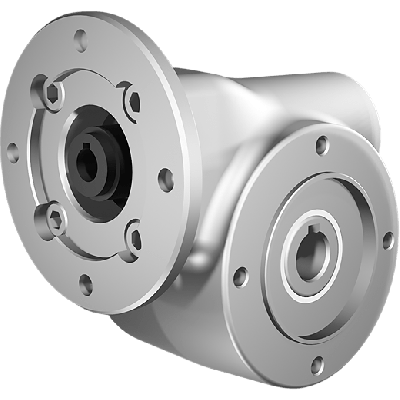

The N30 worm gearbox from Clean-Geartech is specially designed for demanding industrial applications requiring corrosion resistance, reliability, and hygienic design. Manufactured by Clean-Geartech – a leading European producer of hygienic and stainless-steel gear solutions – this gear unit reflects the brand’s commitment to durability, precision, and sanitation. Their products are known and trusted in industries such as food processing, pharmaceuticals, cleanroom manufacturing, and chemical processing due to their resilience in harsh environments and compliance with rigorous hygiene standards.Key Features, Functional Benefits & Applications:
• Made from AISI 316L stainless steel – highly resistant to corrosion, making it ideal for use in aggressive environments with high humidity, saline conditions, or harsh cleaning agents.

• Gear ratio 30:1 – provides significant torque multiplication and precise speed reduction suited for slow-speed, high-load applications such as conveyor systems, bottling lines, or packaging machines.

• Output shaft Ø14 mm in stainless steel – ensures mechanical durability and resistance to wear, even in high-cycle or washdown applications, such as food-grade machinery.

• Input shaft Ø9 mm – compatible with various motor types; optimized to pair with compact drives where dimension constraints are critical.

• Gear input interface 56B14 – standardized motor flange allows easy integration with many IEC-standard motors or servo motors, simplifying design and maintenance processes.

• Overall efficiency at 62% – suited for continuous operation where thermal performance and consistent motion are prioritized over peak efficiency, typical in conveying or dosing systems.

• Compact size (N30) – space-saving design, excellent for installations with limited footprint or multi-axis assemblies.

• Fully enclosed wormgear – designed for minimal maintenance and safe operation in cleanroom or washdown areas where oil leakage is unacceptable.

• Suitable for industries such as food and beverage, dairy, meat processing, pharmaceutical, marine, and chemical handling, providing long service life even under aseptic or aggressive conditions.
The Clean-Geartech N30 gear unit delivers robust performance in demanding technical environments and ensures compliance with industry standards for hygiene and reliability.
