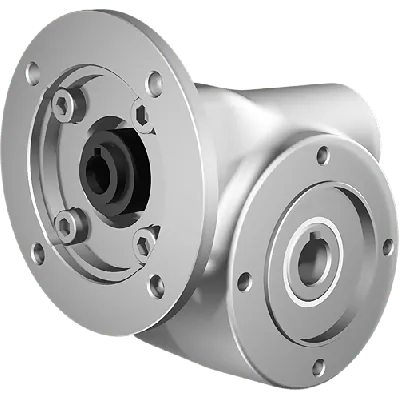

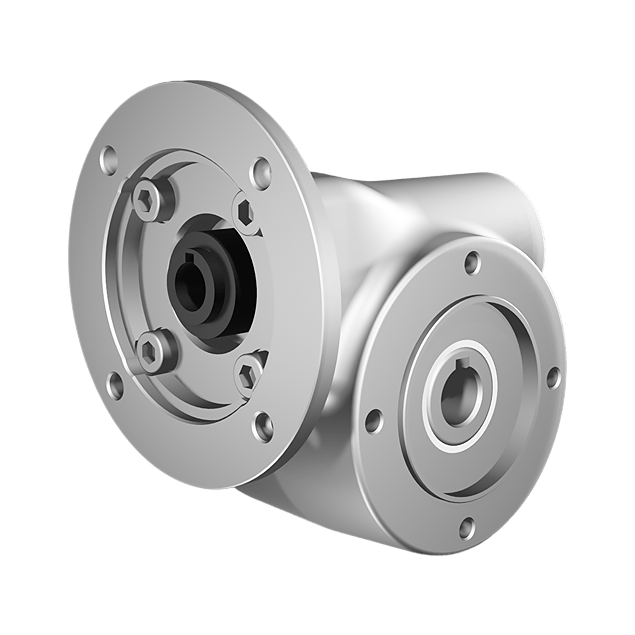

Clean-Geartech N30, worm gear Ø14, 20:1, input 63B14, stainless steel
HV82PN30UNIN040MAINN-PB3-B-OFThe Clean-Geartech N30, worm gear Ø14, 20:1, input 63B14, stainless steel is designed for industrial applications requiring corrosion resistance and compact integration. It features a 20:1 ratio and a 70% efficiency level. The gear input shaft is 11 mm, while the gear output shaft is 14 mm. Built with a stainless steel AISI 316L gear housing, it ensures durability in aggressive environments. The gear motor interface is 63B14, and it comes in a gear size N30. Additional specifications include a BCD input of 75 mm and BCD output of 65 mm. Suitable for hygienic and corrosion-sensitive sectors.
Specifications
Product description
Downloads
€471.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
20:1
BCD input
75
BCD output
65
Efficiency (%)
70
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
70
Max output torque (Nm)
19
Max kW input at 1400 rpm
0.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a recognized manufacturer specializing in hygienic and corrosion-resistant power transmission solutions. Renowned for durability and performance in demanding environments, Clean-Geartech products cater especially to sectors such as food & beverage, pharmaceuticals, chemicals, and marine industries. Their gearboxes are designed to meet the highest technical standards, assuring reliable operation even in harsh and washdown conditions.Key Features, Advantages, and Application Areas:
• Constructed entirely of AISI 316L stainless steel, including the housing and internal components, ensuring superior corrosion resistance for hygienic environments.
• Worm gear design provides smooth, quiet operation with a high torque-to-size ratio, ideal for confined or low-noise industrial applications.
• 20:1 gear ratio translates to precise speed reduction and increased torque output, suitable for conveyors, mixers, and positioning systems requiring controlled motion.
• Efficiency rating of 70% balances energy consumption with mechanical performance, ideal for moderate-duty continuous processes.
• Gear input shaft diameter of 11 mm and output shaft diameter of 14 mm allow straightforward pairing with corresponding motor and load-side components.
• Designed for compatibility with IEC standard motor mountings via its 63B14 input flange, simplifying integration into existing OEM solutions or modular systems.
• Output shaft in stainless steel offers high mechanical strength combined with enhanced hygiene, making the unit perfect for CIP (Clean-In-Place) or SIP (Sterilize-In-Place) processes.
• Compact N30 housing design allows for space-saving integration in automated machinery or production lines with limited installation volume.
• Ideally suited for technical specialists in food processing machines, pharmaceutical dosing equipment, packaging automation, and marine actuation systems.The Clean-Geartech N30 stainless steel worm gearbox offers a combination of durability, precision, and compatibility aimed at maintenance-reducing and contamination-free operation in technical applications.
• Constructed entirely of AISI 316L stainless steel, including the housing and internal components, ensuring superior corrosion resistance for hygienic environments.
• Worm gear design provides smooth, quiet operation with a high torque-to-size ratio, ideal for confined or low-noise industrial applications.
• 20:1 gear ratio translates to precise speed reduction and increased torque output, suitable for conveyors, mixers, and positioning systems requiring controlled motion.
• Efficiency rating of 70% balances energy consumption with mechanical performance, ideal for moderate-duty continuous processes.
• Gear input shaft diameter of 11 mm and output shaft diameter of 14 mm allow straightforward pairing with corresponding motor and load-side components.
• Designed for compatibility with IEC standard motor mountings via its 63B14 input flange, simplifying integration into existing OEM solutions or modular systems.
• Output shaft in stainless steel offers high mechanical strength combined with enhanced hygiene, making the unit perfect for CIP (Clean-In-Place) or SIP (Sterilize-In-Place) processes.
• Compact N30 housing design allows for space-saving integration in automated machinery or production lines with limited installation volume.
• Ideally suited for technical specialists in food processing machines, pharmaceutical dosing equipment, packaging automation, and marine actuation systems.The Clean-Geartech N30 stainless steel worm gearbox offers a combination of durability, precision, and compatibility aimed at maintenance-reducing and contamination-free operation in technical applications.
