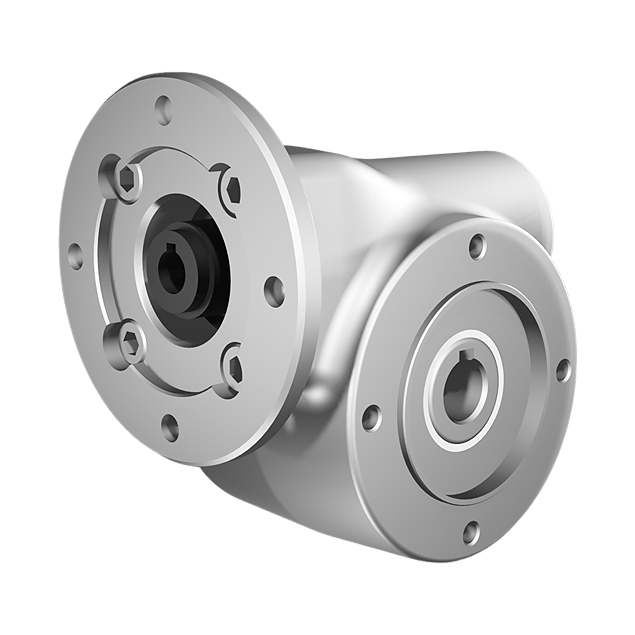

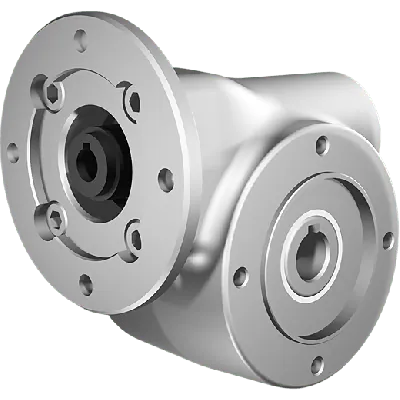

Clean-Geartech N30, worm gear Ø14, 20:1, input 56B14, stainless steel
HV82PN30UNIN040MAINN-OB3-A-OFThis unit features a 20:1 ratio and a gear efficiency of 70%. It includes a Ø9 mm input shaft and a Ø14 mm output shaft, compatible with a 56B14 motor interface. The gear size is N30, making it suitable for compact installations. Both gears and housing are made from stainless steel AISI 316L to ensure durability in aggressive environments. The gearbox also supports 65 BCD input and output for ease of integration.
Specifications
Product description
Downloads
€489.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
20:1
BCD input
65
BCD output
65
Efficiency (%)
70
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
N30
Output speed at 1400 RPM
70
Max output torque (Nm)
19
Max kW input at 1400 rpm
0.2
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
The Clean-Geartech brand is known for delivering high-performance gear solutions specifically designed for industrial applications that demand hygiene, corrosion resistance, and long-lasting durability. Made with precision engineering and robust materials, Clean-Geartech products are ideal for sectors such as food and beverage, chemical processing, pharmaceuticals, and marine technology.Product: Clean-Geartech N30 Stainless Steel Worm Gear, 20:1 Ratio, Hollow Output Shaft Ø14 mm, 56B14 Input FlangeKey Features and Application Benefits:
• Fully constructed from AISI 316L stainless steel – provides outstanding corrosion resistance in aggressive environments and is ideal for hygienic applications such as food processing and pharmaceutical industries.
• Worm gear with 20:1 reduction ratio – allows for high torque output at low speeds, making it perfect for conveyors, mixers, and dosing systems where controlled movement is critical.
• 14 mm stainless steel hollow output shaft – suitable for direct mounting on driven components, reducing the need for couplings and simplifying mechanical integration.
• 56B14 motor interface – compatible with IEC B14 flanged motors, ensuring quick and standardized motor assembly for automation and motion control systems.
• High durability stainless steel bearings and seals – extend operational life and reduce maintenance requirements in wet or washdown-heavy environments.
• Compact size N30 – delivers powerful performance despite its small footprint, making it ideal for equipment with space constraints.
• 70% mechanical efficiency – ensures a balanced trade-off between energy economy and torque transmission, optimal for intermittent to continuous duty cycles.
• 9 mm input shaft – supports a standard range of couplings for power transmission from various motor types or drive assemblies. This gear unit is specifically recommended for use in industries requiring rigorous hygiene standards and resistance to sanitizing agents, such as food-grade conveyor automation, pharmaceutical mixing systems, and marine actuation solutions. Clean-Geartech N30 combines rugged stainless steel design with precision gear performance to meet the toughest mechanical and environmental demands.
• Fully constructed from AISI 316L stainless steel – provides outstanding corrosion resistance in aggressive environments and is ideal for hygienic applications such as food processing and pharmaceutical industries.
• Worm gear with 20:1 reduction ratio – allows for high torque output at low speeds, making it perfect for conveyors, mixers, and dosing systems where controlled movement is critical.
• 14 mm stainless steel hollow output shaft – suitable for direct mounting on driven components, reducing the need for couplings and simplifying mechanical integration.
• 56B14 motor interface – compatible with IEC B14 flanged motors, ensuring quick and standardized motor assembly for automation and motion control systems.
• High durability stainless steel bearings and seals – extend operational life and reduce maintenance requirements in wet or washdown-heavy environments.
• Compact size N30 – delivers powerful performance despite its small footprint, making it ideal for equipment with space constraints.
• 70% mechanical efficiency – ensures a balanced trade-off between energy economy and torque transmission, optimal for intermittent to continuous duty cycles.
• 9 mm input shaft – supports a standard range of couplings for power transmission from various motor types or drive assemblies. This gear unit is specifically recommended for use in industries requiring rigorous hygiene standards and resistance to sanitizing agents, such as food-grade conveyor automation, pharmaceutical mixing systems, and marine actuation solutions. Clean-Geartech N30 combines rugged stainless steel design with precision gear performance to meet the toughest mechanical and environmental demands.
