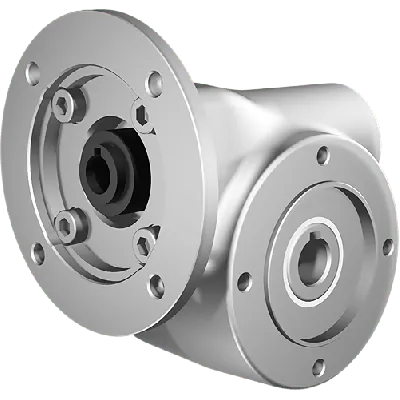

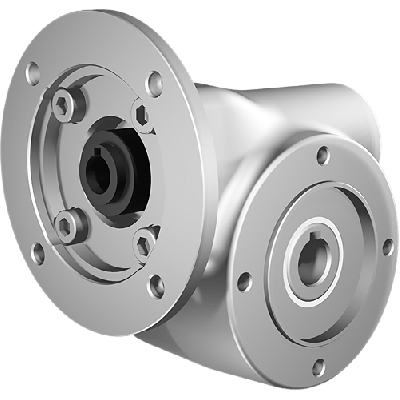

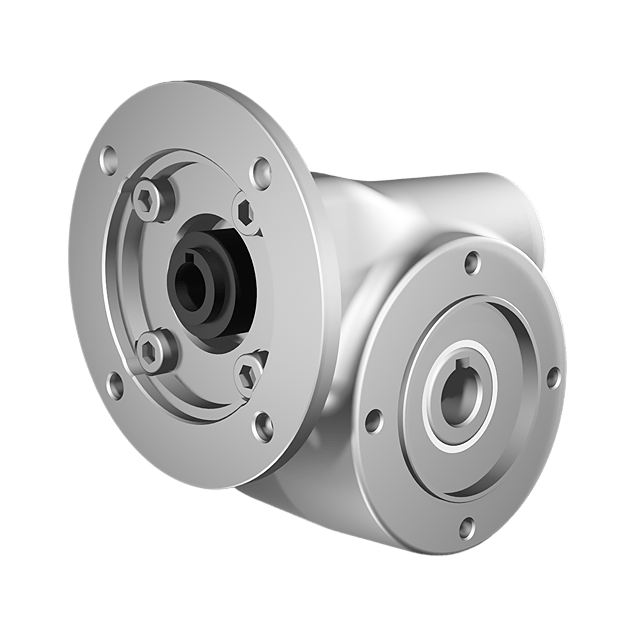

Clean-Geartech N30, worm gear Ø14, 100:1, input 63B14, stainless steel
HV82PN30UNIN100MAINN-PB3-B-OFThe Clean-Geartech N30, worm gearbox Ø14, 100:1, input 63B14, stainless steel offers robust performance for demanding applications. Key attributes: BCD input: 75 mm, BCD output: 65 mm, Efficiency: 40%, Gear input shaft: 11 mm, Gear output shaft: 14 mm, Gear ratio: 100:1, Gear size: N30, Worm gear material: Stainless steel AISI 316L, Gear motor interface: 63B14. The use of stainless steel components extends suitability for environments with high hygiene or corrosive demands. Designed for straightforward integration into technical systems.
Specifications
Product description
Downloads
€471.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
Accessories
More Information
IP classification
IP66
Country of origin
ITA
HS-Code
84834025.000000
ERP net weight (Kg)
5.300000
Material
Stainless steel AISI 316L
Ratio
100:1
BCD input
75
BCD output
65
Efficiency (%)
40
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
14
Max output torque (Nm)
8
Max kW input at 1400 rpm
0.03
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description: Clean-Geartech is a specialized manufacturer of hygienic and corrosion-resistant gear solutions tailored for demanding applications in the food & beverage, pharmaceutical, chemical, and marine industries. The company is renowned for its use of high-grade stainless steel, compact precision engineering, and proven reliability in harsh environments. Designed with cleanliness, durability, and performance in mind, Clean-Geartech products ensure long-lasting operation even under extreme hygienic or corrosive conditions.Applications and Key Features:
Constructed entirely in corrosion-resistant AISI 316L stainless steel, ensuring optimal durability for use in aggressive environments with exposure to moisture, chemicals, or washdown procedures.
High torque transmission with a 100:1 reduction ratio, making it ideal for low-speed, high-load applications such as conveyors, mixers, or lifting mechanisms in hygienic environments.
Equipped with a stainless steel Ø14 mm output shaft, providing robust, hygienic mechanical interface for transfer of motion in food processing, pharmaceutical automation, and marine systems.
Gear input adapted to 63B14 motor flanges, ensuring wide compatibility with IEC-standard motors for seamless integration into existing automated systems.
Compact N30 gear size allows for space-saving installation in confined technical environments, optimizing machine layouts in industrial automation setups.
Stainless steel Ø11 mm input shaft ensures a corrosion-resistant connection to electric motors, reducing maintenance intervals in washdown zones.
Efficiency rated at 40%, suitable for intermittent duty cycles where reliability and environmental compatibility take precedence over energy optimization.
Ideal for aseptic environments, Clean-Geartech stainless steel worm gears eliminate paint, coatings, and corrosion-prone materials, thus reducing contamination risk and simplifying cleaning procedures.
This gear unit is built for vertical and horizontal mounting flexibility, allowing engineers versatile placement in complex system architectures.
Constructed entirely in corrosion-resistant AISI 316L stainless steel, ensuring optimal durability for use in aggressive environments with exposure to moisture, chemicals, or washdown procedures.
High torque transmission with a 100:1 reduction ratio, making it ideal for low-speed, high-load applications such as conveyors, mixers, or lifting mechanisms in hygienic environments.
Equipped with a stainless steel Ø14 mm output shaft, providing robust, hygienic mechanical interface for transfer of motion in food processing, pharmaceutical automation, and marine systems.
Gear input adapted to 63B14 motor flanges, ensuring wide compatibility with IEC-standard motors for seamless integration into existing automated systems.
Compact N30 gear size allows for space-saving installation in confined technical environments, optimizing machine layouts in industrial automation setups.
Stainless steel Ø11 mm input shaft ensures a corrosion-resistant connection to electric motors, reducing maintenance intervals in washdown zones.
Efficiency rated at 40%, suitable for intermittent duty cycles where reliability and environmental compatibility take precedence over energy optimization.
Ideal for aseptic environments, Clean-Geartech stainless steel worm gears eliminate paint, coatings, and corrosion-prone materials, thus reducing contamination risk and simplifying cleaning procedures.
This gear unit is built for vertical and horizontal mounting flexibility, allowing engineers versatile placement in complex system architectures.
