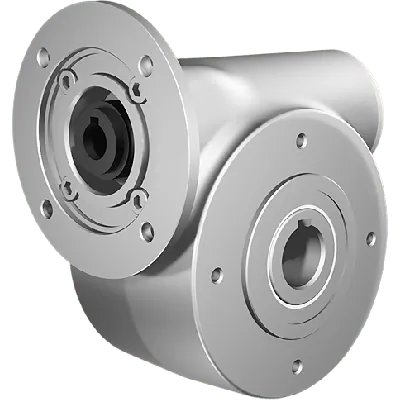

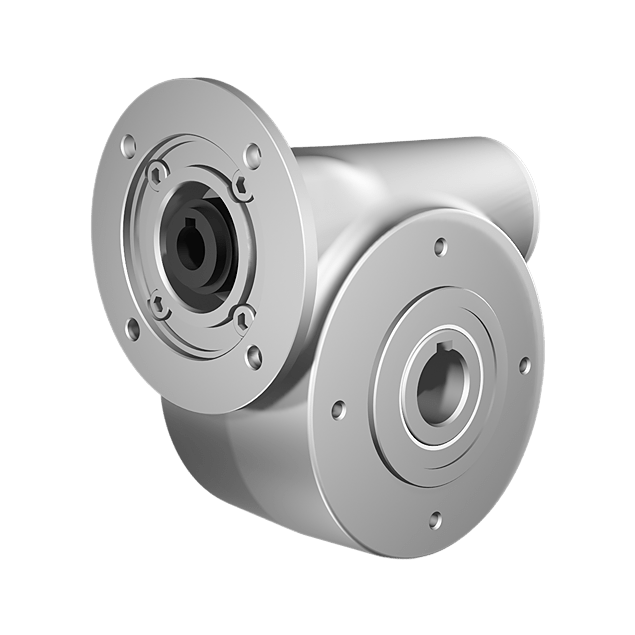

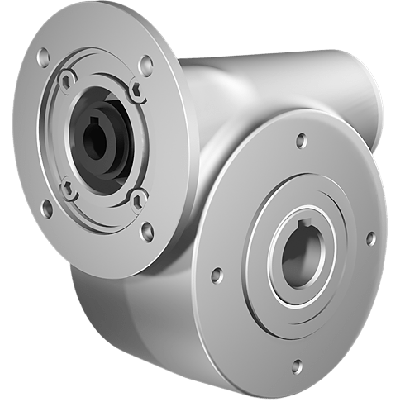

Clean-Geartech N30, worm gear Ø14, 100:1, input 56B14, stainless steel
HV82PN30UNIN100MAINN-OB3-A-OFIt features a gear size of N30 and a reduction ratio of 100:1. The input shaft diameter is 9 mm, and the output shaft diameter is 14 mm. Both BCD input and output are 65 mm, while the gear motor interface is 56B14.The housing includes gears made from stainless steel AISI 316L, and the unit incorporates a stainless steel output hollow shaft for corrosion resistance. The mechanical efficiency is 40%, suitable for applications prioritizing robustness over energy savings.
Specifications
Product description
Downloads
€489.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
100:1
BCD input
65
BCD output
65
Efficiency (%)
40
Gear output shaft (mm)
14
Gear input shaft (mm)
9
Gear motor interface
56B14
Gear size
N30
Output speed at 1400 RPM
14
Max output torque (Nm)
8
Max kW input at 1400 rpm
0.03
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned manufacturer specializing in high-performance stainless steel gear solutions designed for demanding industrial environments. Their gear systems are engineered to meet stringent hygienic and durability standards, making them ideal for applications in sectors such as food processing, pharmaceuticals, chemical handling, and marine engineering.This Clean-Geartech N30 worm gear unit offers excellent durability and corrosion resistance, thanks to its premium stainless steel AISI 316L construction. Developed for technical professionals and engineers, the gear guarantees safe operation in aggressive and hygiene-critical conditions.Key functions and application-focused benefits:
Constructed in AISI 316L stainless steel, the entire gear housing resists corrosion and harsh cleaning agents, making it ideal for food, beverage, and pharmaceutical industries.
100:1 gear ratio provides considerable torque increase, perfect for operations requiring controlled speed reduction and high torque output, such as conveyors, mixers, or lifting equipment.
Stainless steel Ø14 mm output shaft ensures durability and hygiene where the power is transferred, allowing direct integration into machine architecture without risk of rust contamination.
Integrated 56B14 motor interface allows easy coupling with standard IEC B14 electric motors, simplifying system design and maintenance.
Ø9 mm input shaft enhances compact integration possibilities for decentralized drive systems or custom motor connections.
Rated efficiency of 40% supports reliable performance in low-speed, high-load applications, typical of worm gear mechanisms operating in intermittent duty modes.
Compact gear size N30 makes it suitable for installations with restricted space, significantly enhancing application flexibility in tight equipment layouts.
All external metallic components are stainless steel, ensuring full compliance with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures.Clean-Geartech’s N30 worm gear system is engineered for use across industries that demand hygienic, corrosion-resistant, and compact power transmission solutions, all while maintaining mechanical robustness in critical environments.
Constructed in AISI 316L stainless steel, the entire gear housing resists corrosion and harsh cleaning agents, making it ideal for food, beverage, and pharmaceutical industries.
100:1 gear ratio provides considerable torque increase, perfect for operations requiring controlled speed reduction and high torque output, such as conveyors, mixers, or lifting equipment.
Stainless steel Ø14 mm output shaft ensures durability and hygiene where the power is transferred, allowing direct integration into machine architecture without risk of rust contamination.
Integrated 56B14 motor interface allows easy coupling with standard IEC B14 electric motors, simplifying system design and maintenance.
Ø9 mm input shaft enhances compact integration possibilities for decentralized drive systems or custom motor connections.
Rated efficiency of 40% supports reliable performance in low-speed, high-load applications, typical of worm gear mechanisms operating in intermittent duty modes.
Compact gear size N30 makes it suitable for installations with restricted space, significantly enhancing application flexibility in tight equipment layouts.
All external metallic components are stainless steel, ensuring full compliance with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures.Clean-Geartech’s N30 worm gear system is engineered for use across industries that demand hygienic, corrosion-resistant, and compact power transmission solutions, all while maintaining mechanical robustness in critical environments.
