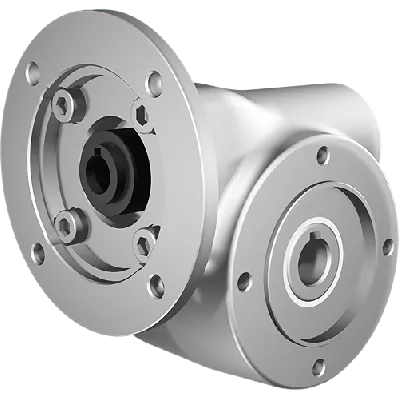

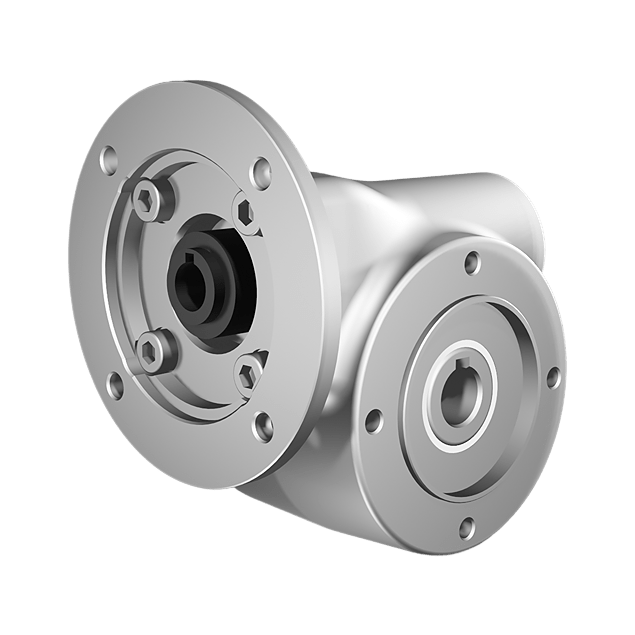

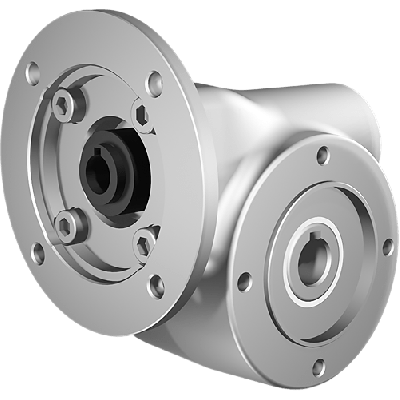

Clean-Geartech N30, worm gear Ø14, 10:1, input 63B14, stainless steel
HV82PN30UNIN020MAINN-PB3-B-OFThe Clean-Geartech N30, worm gearbox Ø14, 10:1, input 63B14, stainless steel is designed for demanding industrial environments requiring corrosion resistance and compact performance. It features a gear ratio of 10:1, with a gear input shaft diameter of 11 mm and a gear output shaft diameter of 14 mm. The gear housing and components are made of stainless steel AISI 316L, ensuring long-term durability in aggressive settings. The motor interface is compatible with standard 63B14 flanges, allowing for flexible motor mounting. With a mechanical efficiency of 78% and a Bore Center Distance (BCD) input of 75 mm and output of 65 mm, this compact N30 unit supports high hygiene and reliability requirements.
Specifications
Product description
Downloads
€471.00
In stock
Expected shipment:
Loading...
Accessories
More Information
IP classification
IP66
HS-Code
84834025.000000
Material
Stainless steel AISI 316L
Ratio
10:1
BCD input
75
BCD output
65
Efficiency (%)
78
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
N30
Output speed at 1400 RPM
140
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.32
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a leading manufacturer of high-performance gear solutions, renowned for supplying hygienic, industry-grade gearboxes tailored to meet the needs of critical applications across food processing, chemical, pharmaceutical, and marine industries. Their gear units combine durable design, corrosion resistance, and highly efficient power transmission for demanding technical environments.Product Type: Clean-Geartech N30 Worm Gear Gear Ratio: 10:1 Material: Stainless Steel AISI 316L Input Interface: IEC B14 flange Ø63mm Input Shaft Diameter: 11 mm Output Shaft Diameter: 14 mm (hollow shaft, also SS) Overall Efficiency: 78% Key features and use-case highlights:
Made entirely of Stainless Steel AISI 316L – ensures maximum corrosion resistance for washdown environments in food, beverage, and pharmaceutical industries, enabling long service life under aggressive cleaning and chemical exposure.
Worm Gear Design with 10:1 Gear Ratio – provides high torque at reduced output speeds, ideal for low-speed conveyor systems, dosing pumps, and rotary actuators with precision load requirements.
Compact Gear Size N30 – suitable for installations with space constraints, delivering high torque in minimal footprint, perfect for OEM machinery and modular system integration.
Output Hollow Shaft Ø14 mm in Stainless Steel – allows for direct coupling with driven equipment, supports hygienic drive train configurations without surface coating degradation.
IEC 63B14 Motor Interface – enables seamless mounting of standard electric motors without custom flanges or adapters, streamlining retrofit and new design implementations.
High Mechanical Efficiency of 78% – reduces energy consumption and operating costs over time in continuous duty cycles common in industrial automation and batch process systems. The Clean-Geartech N30 gearbox offers unmatched durability and adaptability, optimized for engineers and system designers seeking reliable motion control in corrosive or clean-critical operational zones.
Made entirely of Stainless Steel AISI 316L – ensures maximum corrosion resistance for washdown environments in food, beverage, and pharmaceutical industries, enabling long service life under aggressive cleaning and chemical exposure.
Worm Gear Design with 10:1 Gear Ratio – provides high torque at reduced output speeds, ideal for low-speed conveyor systems, dosing pumps, and rotary actuators with precision load requirements.
Compact Gear Size N30 – suitable for installations with space constraints, delivering high torque in minimal footprint, perfect for OEM machinery and modular system integration.
Output Hollow Shaft Ø14 mm in Stainless Steel – allows for direct coupling with driven equipment, supports hygienic drive train configurations without surface coating degradation.
IEC 63B14 Motor Interface – enables seamless mounting of standard electric motors without custom flanges or adapters, streamlining retrofit and new design implementations.
High Mechanical Efficiency of 78% – reduces energy consumption and operating costs over time in continuous duty cycles common in industrial automation and batch process systems. The Clean-Geartech N30 gearbox offers unmatched durability and adaptability, optimized for engineers and system designers seeking reliable motion control in corrosive or clean-critical operational zones.
