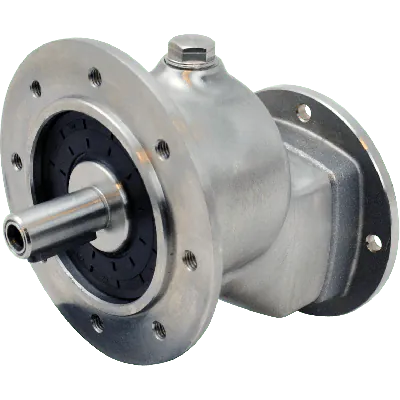

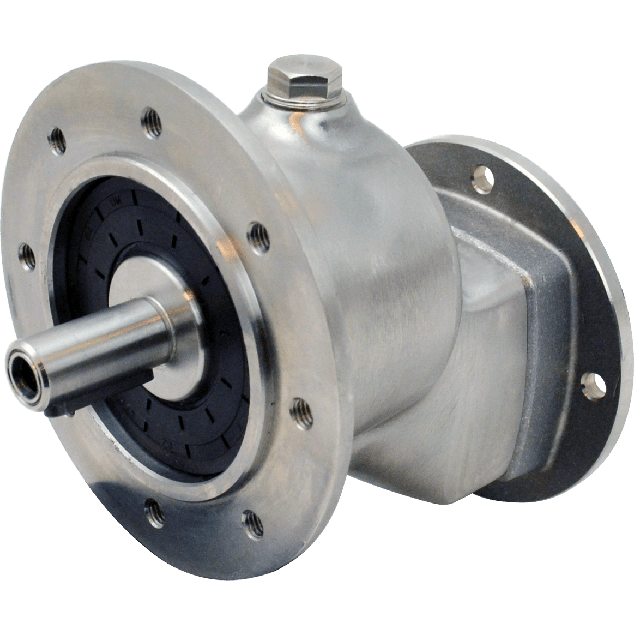

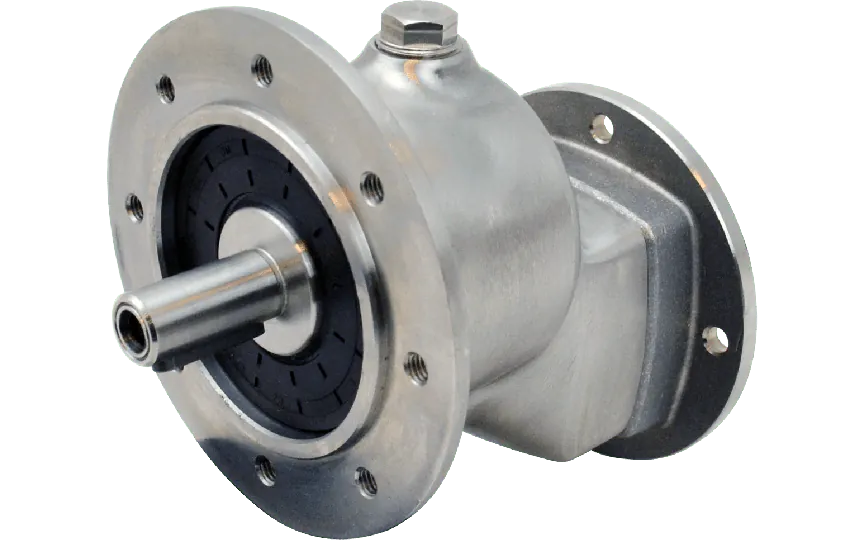

Clean-Geartech 211N, 1 stage coaxial gear, 9,83:1, input 71B14, output 71B14, stainless steel
HV82P211N-F08SI-QB3STOFThis model features a gear ratio of 9.83:1, delivering effective torque conversion and speed reduction suitable for demanding mechanical environments. The gear size is 211N, offering a standardized footprint for integration into existing systems.Constructed entirely in stainless steel, the gear housing and components provide high resistance to corrosion, ensuring long-term operation in cleanroom, food industry, or chemical processing applications. The gear motor interface is 71B14, and both the input and output shafts measure 14 mm in diameter, supporting straightforward coupling and mechanical integration.This gear unit operates with an efficiency of 98%, minimizing energy loss and contributing to overall system efficiency. Both the BCD input and output are 85 mm, making it compatible with standard motor and drive setups.The Clean-Geartech 211N is designed as a single-stage (1-stage) transmission, simplifying mechanical layout and maintenance requirements.This gear unit is suitable for engineers and technical professionals working in environments that require reliable, material-specific solutions with predictable mechanical behavior and dimensional compatibility.
Specifications
Product description
Downloads
€537.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
9,83:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211N
Output speed at 1400 RPM
142
Max output torque (Nm)
16
Max kW input at 1400 rpm
0.24
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a specialized manufacturer of high-performance stainless-steel gearboxes designed for demanding industrial environments. Known for their focus on hygiene, durability, and precision, Clean-Geartech products are ideal for applications where corrosion resistance and cleanliness are critical. Their gear systems are widely used in food processing, pharmaceuticals, chemical manufacturing, marine applications, and other industries that require uncompromising mechanical and sanitary performance.Product: Clean-Geartech 211N, 1-stage helical gearbox, 9.83:1 ratio, input 71B14, output 71B14, stainless steel Product Features, Benefits, and Applications:
Constructed entirely in stainless steel – including both input and output shafts (14 mm) – the gearbox guarantees superior corrosion resistance for aggressive and hygienic environments such as the food, beverage, and pharmaceutical sectors.
Single-stage helical gear system provides high mechanical efficiency (98%), resulting in reduced energy consumption and lower operational costs for continuous-use applications.
Compact 211N housing size balances high torque handling with minimal installation footprint, making it suitable for integration into space-constrained machinery and modular automation systems.
Input and output interface compatible with IEC 71B14 standards, allowing easy coupling with standard electric motors and simplifying system integration and retrofitting.
Fixed gear ratio of 9.83:1 delivers consistent speed reduction and torque multiplication, ideal for synchronized drive systems, conveyor belts, and rotary motion platforms.
The smooth stainless-steel surfaces reduce risk of contamination and ease the cleaning process, ideal for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) requirements in sanitary plants.
High precision manufacturing ensures low backlash and quiet operation, which is critical for precision dosing, packaging lines, and motion control in automated production.
Robust single-stage gearing offers enhanced reliability and simplicity, decreasing failure points and extending lifecycle in continuous industrial use.
Suitable for harsh industrial environments, including maritime, petrochemical, and outdoor installations where exposure to moisture, chemicals or salt is expected. The Clean-Geartech 211N is engineered to deliver long-term performance, hygienic design, and integration flexibility — making it an essential drive solution for demanding industrial applications.
Constructed entirely in stainless steel – including both input and output shafts (14 mm) – the gearbox guarantees superior corrosion resistance for aggressive and hygienic environments such as the food, beverage, and pharmaceutical sectors.
Single-stage helical gear system provides high mechanical efficiency (98%), resulting in reduced energy consumption and lower operational costs for continuous-use applications.
Compact 211N housing size balances high torque handling with minimal installation footprint, making it suitable for integration into space-constrained machinery and modular automation systems.
Input and output interface compatible with IEC 71B14 standards, allowing easy coupling with standard electric motors and simplifying system integration and retrofitting.
Fixed gear ratio of 9.83:1 delivers consistent speed reduction and torque multiplication, ideal for synchronized drive systems, conveyor belts, and rotary motion platforms.
The smooth stainless-steel surfaces reduce risk of contamination and ease the cleaning process, ideal for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) requirements in sanitary plants.
High precision manufacturing ensures low backlash and quiet operation, which is critical for precision dosing, packaging lines, and motion control in automated production.
Robust single-stage gearing offers enhanced reliability and simplicity, decreasing failure points and extending lifecycle in continuous industrial use.
Suitable for harsh industrial environments, including maritime, petrochemical, and outdoor installations where exposure to moisture, chemicals or salt is expected. The Clean-Geartech 211N is engineered to deliver long-term performance, hygienic design, and integration flexibility — making it an essential drive solution for demanding industrial applications.
