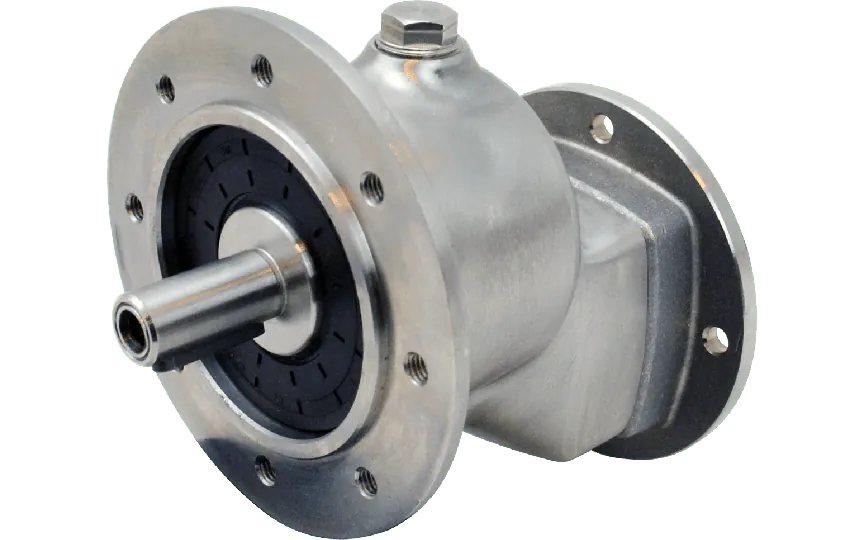

Clean-Geartech 211N, 1 stage coaxial gear, 8,29:1, input 71B14, output 71B14, stainless steel
HV82P211N-F07SI-QB3STOFThis gear unit is built with a gear size of 211N and features a single-stage transmission. It delivers a ratio of 8.29:1, making it suitable for a wide range of speed reduction applications.The gear input shaft and gear output shaft both measure 14 mm in diameter, supporting precise torque transmission and compact system design. The gear motor interface type is 71B14 on both input and output sides, enabling modular integration with compatible motor units.Constructed using stainless steel, the gear housing and key components offer resistance to corrosion and mechanical wear, making the unit a good choice for hygienic or harsh operating conditions.The gear unit supports a BCD input of 85 and a BCD output of 85, ensuring compatibility with standard flange dimensions.With a mechanical efficiency of 98%, the gearbox minimizes energy losses while maintaining stable performance during continuous operation.Developed for integration into technical systems, this gear unit focuses on robustness, interface compatibility, and minimal maintenance requirements.
Specifications
Product description
Downloads
€537.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
8,29:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211N
Output speed at 1400 RPM
169
Max output torque (Nm)
20
Max kW input at 1400 rpm
0.36
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a renowned European manufacturer specializing in hygienic and corrosion-resistant drive solutions. Designed specifically for demanding industrial environments, Clean-Geartech gearboxes are the choice of engineers in food processing, pharmaceuticals, chemical production, and marine applications. Known for superior durability, high efficiency, and easy washdown capability, Clean-Geartech combines robust mechanical performance with uncompromising hygiene standards.
High Efficiency – 98%: Designed for optimal performance, the gearbox minimizes energy loss, making it ideal for continuous-duty operations in energy-conscious manufacturing environments.
Stainless Steel Housing and Hollow Shaft: The gear housing and the 14mm hollow output shaft are made entirely of stainless steel (SS), ensuring maximum corrosion resistance in harsh and washdown applications, such as food & beverage and marine environments.
Compact Single-stage Helical Design: With only one gear stage (ratio 8.29:1), the 211N gearbox ensures low noise, high transmission accuracy, and reduced footprint—fitting seamlessly into compact equipment designs.
Standard Motor Interface – IEC 71B14: Compatible with widely-used IEC motor flanges, making integration into existing or new drive systems straightforward and cost-effective across multiple industries.
Input and Output Shaft Diameter – 14mm: Facilitates easy coupling with standard mechanical components, ensuring flexible installation in various system architectures.
Versatile Gear Ratio 8.29:1: Offers an effective speed reduction suitable for automated conveyors, mixers, dosing units, or lifting systems, where precise torque control is necessary.
Robust Gear Size – 211N: Purpose-built for high torque transmission with durability in mind, supporting reliable long-term operation even under continuous stress loads.
Ideal for Hygienic and Industrial Applications: Especially suitable for pharmaceutical systems, chemical dosing equipment, marine winches, stainless filling machines, dairy processing lines or any location requiring stainless hygiene-focused power transmission.
High Efficiency – 98%: Designed for optimal performance, the gearbox minimizes energy loss, making it ideal for continuous-duty operations in energy-conscious manufacturing environments.
Stainless Steel Housing and Hollow Shaft: The gear housing and the 14mm hollow output shaft are made entirely of stainless steel (SS), ensuring maximum corrosion resistance in harsh and washdown applications, such as food & beverage and marine environments.
Compact Single-stage Helical Design: With only one gear stage (ratio 8.29:1), the 211N gearbox ensures low noise, high transmission accuracy, and reduced footprint—fitting seamlessly into compact equipment designs.
Standard Motor Interface – IEC 71B14: Compatible with widely-used IEC motor flanges, making integration into existing or new drive systems straightforward and cost-effective across multiple industries.
Input and Output Shaft Diameter – 14mm: Facilitates easy coupling with standard mechanical components, ensuring flexible installation in various system architectures.
Versatile Gear Ratio 8.29:1: Offers an effective speed reduction suitable for automated conveyors, mixers, dosing units, or lifting systems, where precise torque control is necessary.
Robust Gear Size – 211N: Purpose-built for high torque transmission with durability in mind, supporting reliable long-term operation even under continuous stress loads.
Ideal for Hygienic and Industrial Applications: Especially suitable for pharmaceutical systems, chemical dosing equipment, marine winches, stainless filling machines, dairy processing lines or any location requiring stainless hygiene-focused power transmission.
