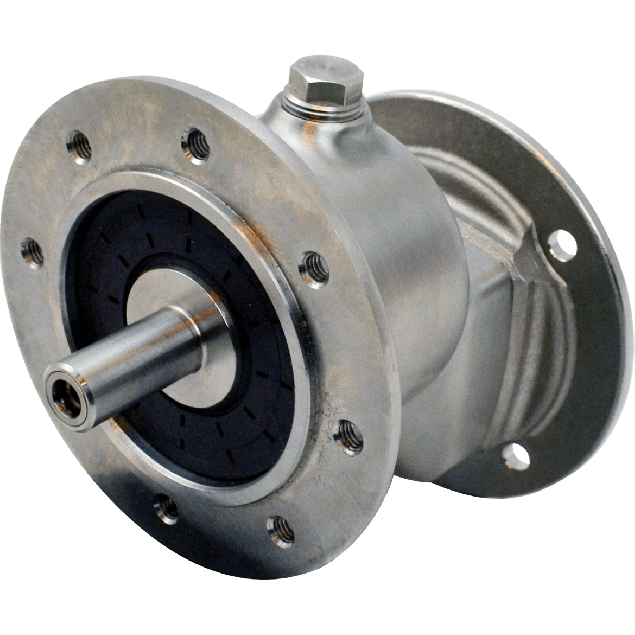

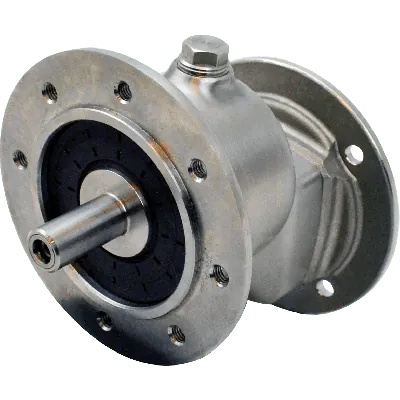

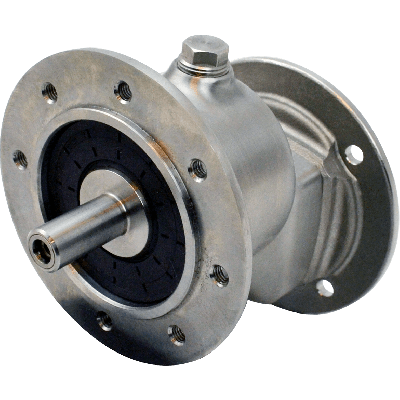

Clean-Geartech 211N, 1 stage coaxial gear, 8,29:1, input 63B14, output 71B14, stainless steel

HV82P211N-F07SI-PB3STOF

This model offers a gear ratio of 8.29:1, supporting applications that require speed reduction and torque multiplication. The gear construction features a single stage, simplifying integration while minimizing mechanical complexity.The gear material is stainless steel, providing robust resistance to corrosion and suitable for hygienic or washdown environments. The input shaft diameter is 11 mm and connects via a 63B14 gear motor interface. On the output side, the shaft diameter is 14 mm, facilitating compatibility with a broad range of output components.With an efficiency of 98%, the unit ensures minimal energy loss under load. The gearbox is specified as the 211N gear size and is intended for use with a 71B14 format at the output. The system is configured with a BCD input of 75 mm and a BCD output of 85 mm.This gearbox is applicable to automation systems, food and beverage equipment, and other environments requiring low-maintenance and high-reliability drive solutions.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Stainless steel

Ratio

8,29:1

BCD input

BCD output

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

63B14

Gear size

211N

Output speed at 1400 RPM

169

Max output torque (Nm)

Max kW input at 1400 rpm

0.36

Mounting position

Oil

Mobil SHC Cibus 320 NSF H1

Producer

Clean-Geartech

Description

Manufacturer Overview: Clean-Geartech is a specialized manufacturer of hygienic and corrosion-resistant gearbox solutions, widely trusted in industries such as food processing, pharmaceuticals, and automation. Their products are built for high efficiency, durability, and compliance with strict hygiene standards.

Manufactured entirely from stainless steel (SS), including the gearbox housing and output shaft, making it highly corrosion-resistant – ideal for food, beverage, chemical, and pharmaceutical industries.

The one-stage helical gearing (Gear size: 211N) ensures smooth torque transmission and low noise levels, perfect for operations with sensitive environmental noise requirements or continuous duty cycles.

Excellent efficiency of 98% significantly reduces energy loss and heat generation during operation, supporting sustainability and energy savings in high-demand industrial setups.

Gear ratio of 8.29:1 enables high torque output, suitable for conveying systems, mixers, automated packaging lines, or other torque-driven applications.

Input shaft diameter of 11 mm and output shaft diameter of 14 mm allow integration with a variety of standard motor and equipment configurations, offering installation flexibility.

Versatile motor interface (63B14) allows easy mounting with IEC-compliant motors, streamlining assembly and component interchangeability.

Compact design with high torque density enables integration into space-constrained systems without sacrificing performance.

A hygienic surface finish prevents microbial growth and supports washdown-capable operations, aligning with FDA and EHEDG cleanliness requirements.

Highly suitable for cleanroom, marine, and offshore applications where steel components are exposed to moisture, salt, or aggressive cleaning agents.
This gearbox offers robust performance combined with hygienic design, making it the optimal choice for technical specialists seeking durable, energy-efficient, and contamination-resistant power transmission systems.
