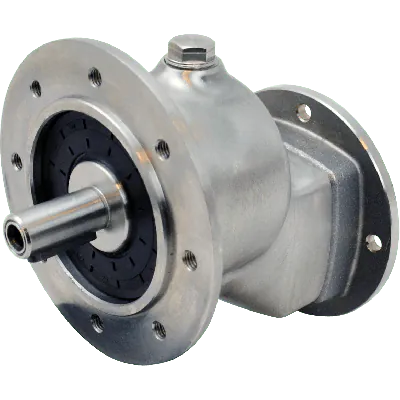

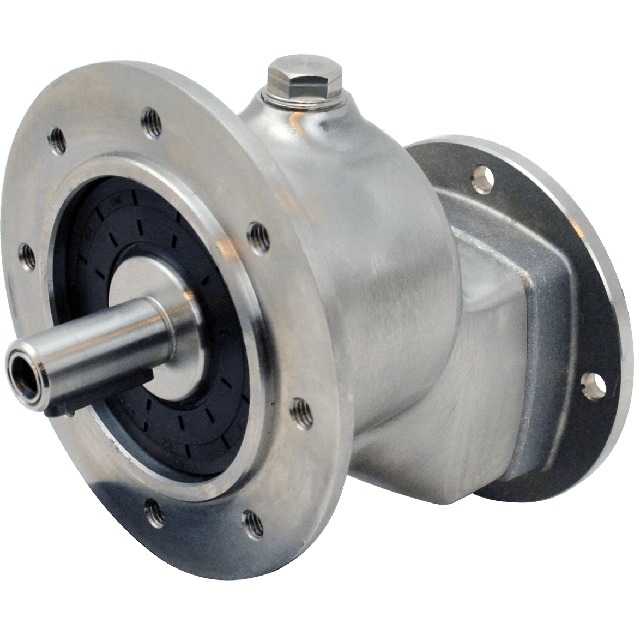

Clean-Geartech 211N, 1 stage coaxial gear, 6,22:1, input 71B14, output 71B14, stainless steel

HV82P211N-F06SI-QB3STOF

It features a gear ratio of 6.22:1, enabling effective speed reduction while maintaining high torque transfer. The unit achieves efficiency of 98%, minimizing energy losses in demanding environments.The gear input shaft diameter is 14 mm and the gear output shaft diameter is also 14 mm, which simplifies integration with standardized components. Both the input and output BCDs are 85 mm, offering compatibility with a wide range of mounting configurations.The gear motor interface is standardized with a 71B14 flange on both input and output sides. This facilitates straightforward assembly with motors and driven machinery compliant with IEC norms.The gear size is designated as 211N, and the design utilizes one gear stage to maintain mechanical simplicity and reduce space requirements.All core components are manufactured from stainless steel, providing corrosion resistance and suitability for use in hygienic or chemically aggressive environments.This gear unit is suitable for technical applications where high efficiency, standard interfacing, and durable materials are critical.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Stainless steel

Ratio

6,22:1

BCD input

BCD output

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

71B14

Gear size

211N

Output speed at 1400 RPM

225

Max output torque (Nm)

Max kW input at 1400 rpm

0.55

Mounting position

Oil

Mobil SHC Cibus 320 NSF H1

Producer

Clean-Geartech

Description

Clean-Geartech is a premier manufacturer known for its high-performance and hygienically designed gear solutions tailored for demanding environments such as food processing, pharmaceutical, and chemical industries. Their design philosophy integrates durability, efficiency, and ease of maintenance, with a strong focus on corrosion resistance and compatibility with rigorous cleaning procedures.Key Features, Benefits, and Application Scenarios:
• High Efficiency (98%) – Minimizes energy loss and ensures optimal performance, ideal for continuous operation in energy-critical installations.

• Full Stainless Steel Housing and Output Shaft (SS) – Provides superior corrosion resistance, making it suitable for harsh environments involving water, chemicals, or aggressive cleaning agents.

• Compact 211N Gear Size – Enables space-saving integration into automated systems and compact machinery, without compromising power transmission.

• Gear Ratio 6.22:1 – Offers precise speed reduction for torque-intensive applications such as conveyors, mixers, and packaging lines.

• Single-Stage Design – Reduces mechanical complexity and ensures smoother torque transmission, lower noise levels, and improved reliability.

• Input and Output Shaft Diameter 14 mm – Uniform sizing aids in simplified shaft coupling and integration into standardized system architectures.

• Input Flange Interface 71B14 – Ensures compatibility with IEC standardized motors and simplifies replacement or system upgrades.

• Clean-In-Place (CIP) Compatibility – Ideal for hygienic production zones, minimizes contamination risk, and meets food and pharma-grade requirements.

• Robotic and Modular System Suitability – Its robustness and precise mechanics make it a suitable performative core in servo-driven or robotic applications.
This high-efficiency stainless steel gearbox is designed to meet the operational and sanitary expectations of industry-grade applications with minimal downtime and long service life. Clean-Geartech ensures that their gear solutions not only meet mechanical demands but also align with hygiene and regulatory standards across sectors.
