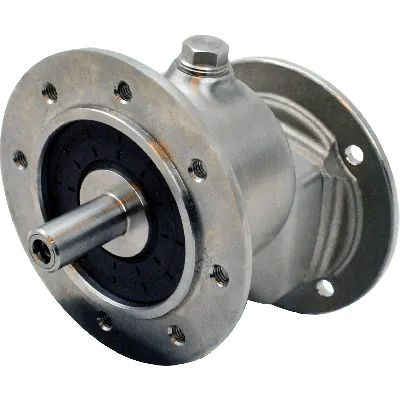

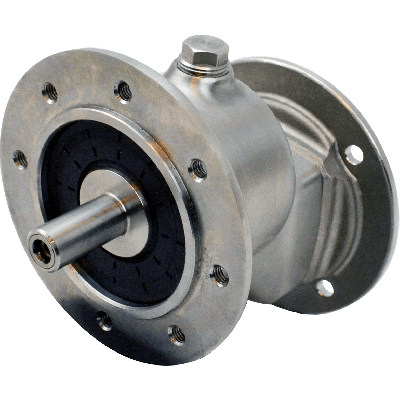

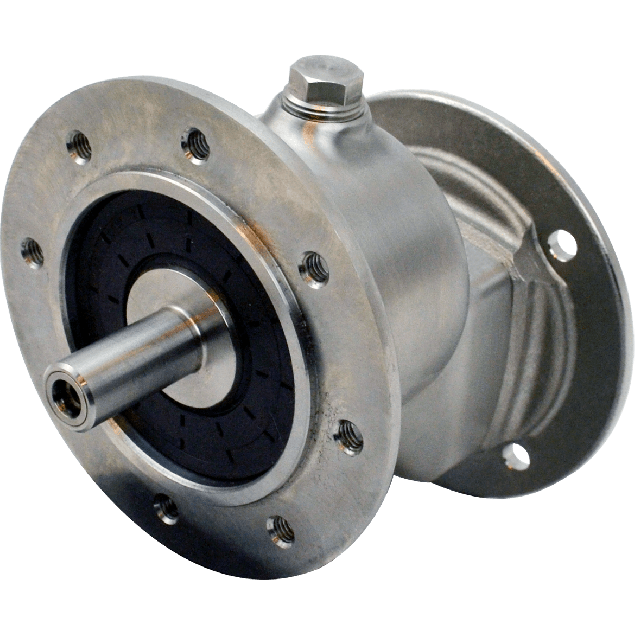

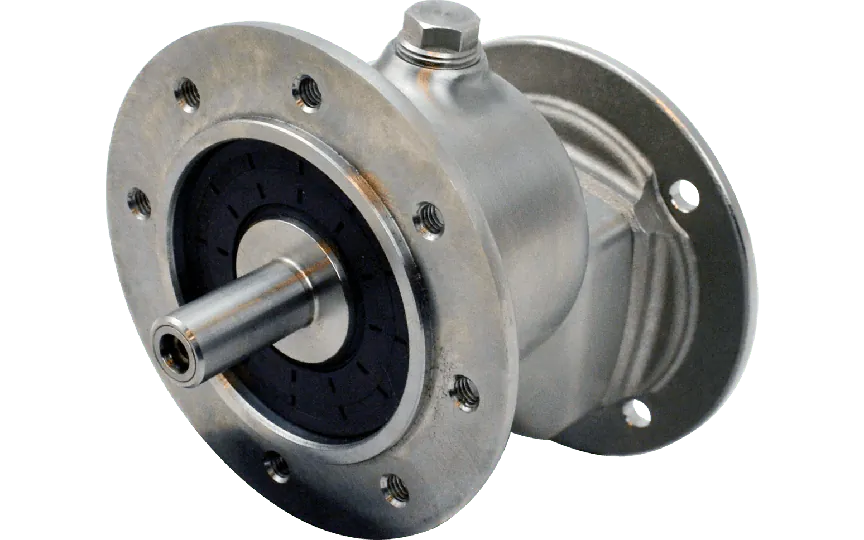

Clean-Geartech 211N, 1 stage coaxial gear, 6,22:1, input 63B14, output 71B14, stainless steel
HV82P211N-F06SI-PB3STOFThis model features a gear ratio of 6.22:1 and a single-stage (1) configuration, ensuring simple and efficient torque transmission where minimal complexity is preferred. The input shaft diameter is 11 mm, while the output shaft diameter is 14 mm, enabling seamless mechanical coupling.The gear housing and internal components are manufactured from stainless steel, making it well-suited for hygienic and corrosion-resistant applications. The unit’s overall efficiency is rated at 98%, contributing to minimal power losses during operation.Designed for standardized motor mounting, the gear unit integrates a 63B14 gear motor interface at the input. The gear size is classified as 211N, aligning with common industrial use cases. The unit supports BCD mounting dimensions of 75 mm on the input side and 85 mm on the output side, ensuring compatibility with standard flange designs.This gear solution is appropriate for projects requiring compact, stainless steel gearboxes with straightforward integration and high efficiency.
Specifications
Product description
Downloads
€540.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
6,22:1
BCD input
75
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
11
Gear motor interface
63B14
Gear size
211N
Output speed at 1400 RPM
225
Max output torque (Nm)
23
Max kW input at 1400 rpm
0.55
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech 211N, 1-stage Helical Gearbox, 6.22:1 ratio, Input 63B14, Output 71B14, Stainless SteelClean-Geartech is a trusted manufacturer known for delivering high-performance drivetrain solutions for demanding industrial environments. Their products are engineered with precision and durability in mind, catering especially to industries that require strict hygiene standards, corrosion resistance, and operational efficiency. All gearboxes from Clean-Geartech are designed to offer long service life and minimal maintenance, making them ideal for technical professionals in food processing, pharmaceutical, chemical, marine, and packaging industries.Key Features and Application Benefits:
• High Efficiency – With an outstanding efficiency rating of 98%, the gearbox minimizes power losses, ensuring energy savings and consistent torque delivery across applications.
• Single-Stage Helical Gear Design – The 1-stage configuration enables compact installation, reduced complexity, and smooth torque transmission, ideal for limited spatial environments.
• Stainless Steel Construction – Both the gear housing and hollow output shaft are made of stainless steel (SS), providing exceptional corrosion resistance and making the unit suitable for washdown and hygienic zones.
• Output Shaft Diameter 14 mm – Standardized shaft sizing facilitates easy integration with couplings, sprockets, or pulleys in conveyor systems and automated machinery.
• Input Shaft Diameter 11 mm – Ensures compatibility with various motor types while maintaining high torque transmission capacity.
• Ratio 6.22:1 – Optimized to deliver increased torque while reducing output speed, suitable for mechanized lifting, packaging lines, and robotic movement control.
• Gear Motor Interface 63B14 – Standard motor mounting interface simplifies motor pairing and reduces installation time.
• Gear Size 211N – Medium-duty frame size suitable for industrial applications requiring a balance between torque output and system footprint.
• Output BCD 85 mm / Input BCD 75 mm – Ensures secure and aligned mechanical integration with custom mounting plates or machines.Applications: This gearbox is ideal for technical implementations where hygiene standards and robust performance are critical. It is frequently used in automated food slicers, pharmaceutical filler machines, chemical mixers, marine winches, and robotic drive systems operating in corrosive or washdown-prone environments.
• High Efficiency – With an outstanding efficiency rating of 98%, the gearbox minimizes power losses, ensuring energy savings and consistent torque delivery across applications.
• Single-Stage Helical Gear Design – The 1-stage configuration enables compact installation, reduced complexity, and smooth torque transmission, ideal for limited spatial environments.
• Stainless Steel Construction – Both the gear housing and hollow output shaft are made of stainless steel (SS), providing exceptional corrosion resistance and making the unit suitable for washdown and hygienic zones.
• Output Shaft Diameter 14 mm – Standardized shaft sizing facilitates easy integration with couplings, sprockets, or pulleys in conveyor systems and automated machinery.
• Input Shaft Diameter 11 mm – Ensures compatibility with various motor types while maintaining high torque transmission capacity.
• Ratio 6.22:1 – Optimized to deliver increased torque while reducing output speed, suitable for mechanized lifting, packaging lines, and robotic movement control.
• Gear Motor Interface 63B14 – Standard motor mounting interface simplifies motor pairing and reduces installation time.
• Gear Size 211N – Medium-duty frame size suitable for industrial applications requiring a balance between torque output and system footprint.
• Output BCD 85 mm / Input BCD 75 mm – Ensures secure and aligned mechanical integration with custom mounting plates or machines.Applications: This gearbox is ideal for technical implementations where hygiene standards and robust performance are critical. It is frequently used in automated food slicers, pharmaceutical filler machines, chemical mixers, marine winches, and robotic drive systems operating in corrosive or washdown-prone environments.
