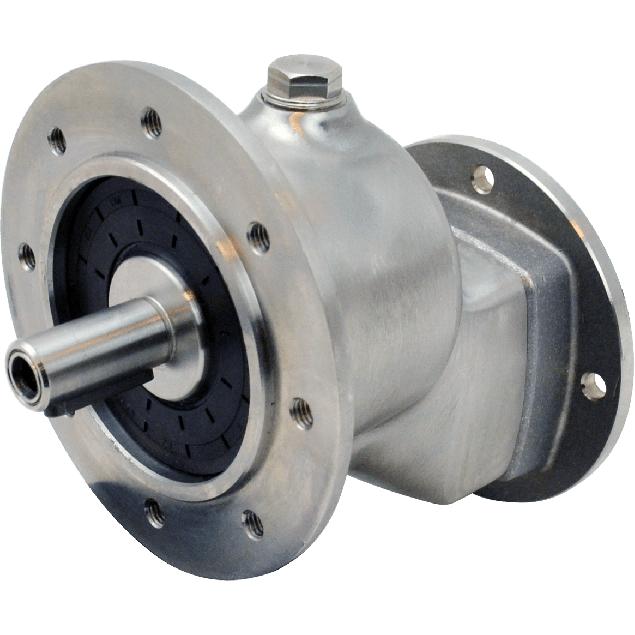

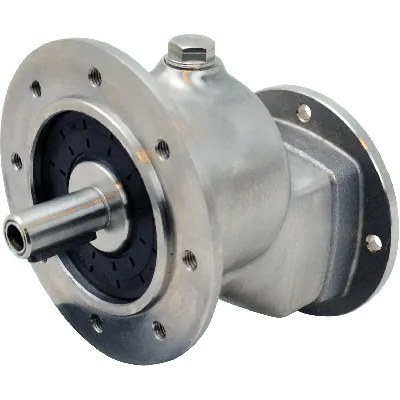

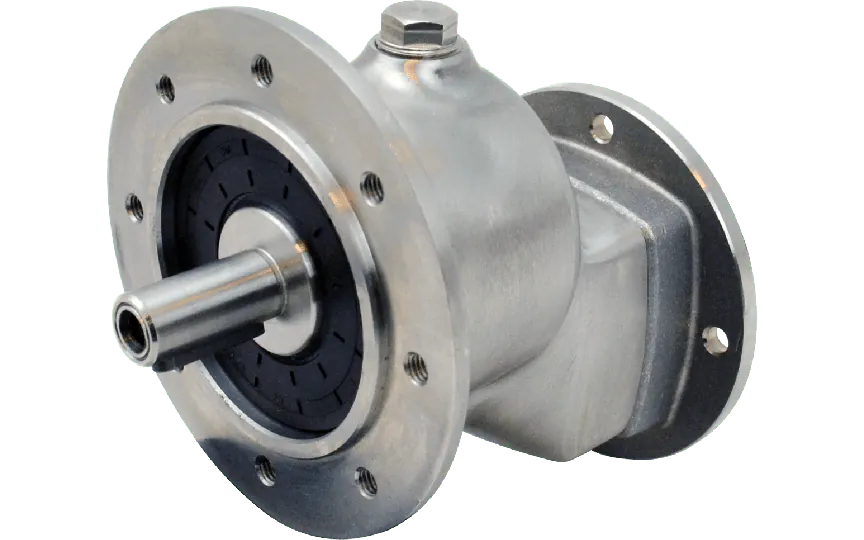

Clean-Geartech 211N, 1 stage coaxial gear, 4,7:1, input 71B14, output 71B14, stainless steel
HV82P211N-F05SI-QB3STOFThis unit offers a gear ratio of 4.7:1 and a gear size classified as 211N, supporting applications with moderate torque and speed reduction requirements. The product is equipped with a single gear stage, simplifying mechanical design and enhancing system reliability.Constructed with stainless steel gear material, the enclosure and internal components are optimized for robust performance in aggressive or washdown environments. The gear input shaft diameter measures 14 mm, while the gear output shaft diameter is also 14 mm, ensuring compatibility with standardized drive and load connections.The unit integrates seamlessly with IEC motors through its standardized gear motor interface: 71B14 at both the input and the output ends. Power transfer efficiency is maintained at a high level with an operational efficiency of 98%.Electrical characteristics are defined by a BCD input of 85 mm and a matching BCD output of 85 mm, enabling hassle-free mounting and integration into existing system architectures.This product is ideal for industries where stainless steel construction and high transmission efficiency are necessary, such as food and beverage processing, pharmaceutical manufacturing, and cleanroom automation.
Specifications
Product description
Downloads
€537.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
4,7:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211N
Output speed at 1400 RPM
298
Max output torque (Nm)
20
Max kW input at 1400 rpm
0.64
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is an established manufacturer known for producing high-performance gear solutions tailored for demanding industrial environments. Specializing in hygienic and corrosion-resistant drive components, Clean-Geartech combines precision engineering with materials suited for food, pharmaceutical, chemical, and marine industries. All products are designed to comply with strict industrial cleanliness and durability standards.Highlighted below are the key features, benefits, and application possibilities of the Clean-Geartech 211N Stainless Steel Gearbox:
● Constructed entirely from stainless steel, including gear housing, input and output shafts – ideal for use in washdown environments such as food processing, pharmaceuticals, and cleanroom automation.
● 1-stage helical gear (ratio 4.7:1) enabling noise-reduced, high-efficiency torque transmission suitable for continuous-duty applications like conveyors, mixers, and pumps.
● High efficiency of 98% minimizes energy losses, ensuring optimal system performance and reduced operating costs over long-term industrial cycles.
● Compact gear size 211N with a robust B14 flange interface allows easy integration with IEC-standard electric motors and drives, streamlining retrofit and assembly in modular systems.
● 14 mm stainless steel hollow shaft output ensures excellent corrosion resistance and mechanical compatibility in harsh or wet operating conditions.
● Input interface of 71B14 makes this gearbox compatible with motors in size B14, providing flexibility in motor selection for precise process control.
● Single-stage gearing reduces complexity and maximizes reliability in automated systems performing repetitive high-load tasks such as packaging, labeling, and dosing machinery.
● Smooth surface design minimizes bacterial accumulation, supporting hygienic design principles in sanitary-critical environments.The Clean-Geartech 211N gearbox is engineered for professionals who demand reliability, easy maintenance, and industry-grade durability for complex motion control and high-sanitation applications.
● Constructed entirely from stainless steel, including gear housing, input and output shafts – ideal for use in washdown environments such as food processing, pharmaceuticals, and cleanroom automation.
● 1-stage helical gear (ratio 4.7:1) enabling noise-reduced, high-efficiency torque transmission suitable for continuous-duty applications like conveyors, mixers, and pumps.
● High efficiency of 98% minimizes energy losses, ensuring optimal system performance and reduced operating costs over long-term industrial cycles.
● Compact gear size 211N with a robust B14 flange interface allows easy integration with IEC-standard electric motors and drives, streamlining retrofit and assembly in modular systems.
● 14 mm stainless steel hollow shaft output ensures excellent corrosion resistance and mechanical compatibility in harsh or wet operating conditions.
● Input interface of 71B14 makes this gearbox compatible with motors in size B14, providing flexibility in motor selection for precise process control.
● Single-stage gearing reduces complexity and maximizes reliability in automated systems performing repetitive high-load tasks such as packaging, labeling, and dosing machinery.
● Smooth surface design minimizes bacterial accumulation, supporting hygienic design principles in sanitary-critical environments.The Clean-Geartech 211N gearbox is engineered for professionals who demand reliability, easy maintenance, and industry-grade durability for complex motion control and high-sanitation applications.
