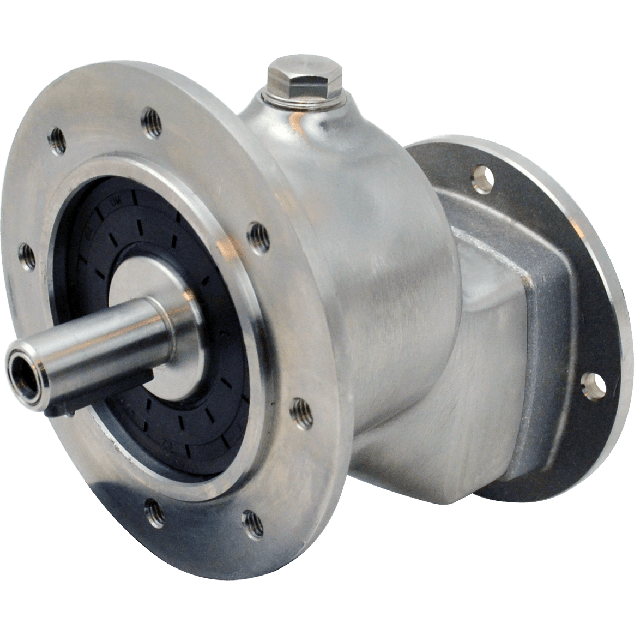

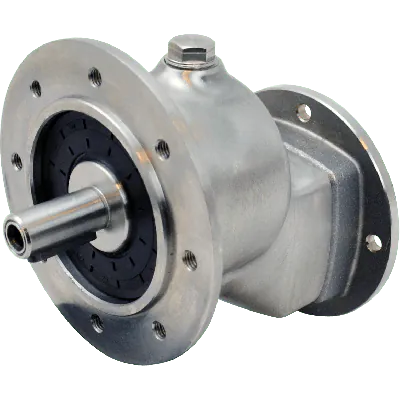

Clean-Geartech 211N, 1 stage coaxial gear, 3,38:1, input 71B14, output 71B14, stainless steel
HV82P211N-F04SI-QB3STOFKey technical specifications:- BCD input: 85 mm - BCD output: 85 mm - Efficiency: 98% - Input shaft diameter: 14 mm - Output shaft diameter: 14 mm - Ratio: 3.38:1 - Number of gear stages: 1 - Gear size: 211N - Gear motor interface: 71B14 - Gear material: Stainless steelThis gear unit is built with a 71B14 interface on both the input and output sides, facilitating straightforward integration with standardized IEC motor flanges. The stainless steel housing and gear components increase resistance to corrosion, making it suitable for demanding environments such as food processing, pharmaceuticals, and CIP applications.The single-stage configuration provides a compact solution with minimized mechanical complexity, leading to reduced maintenance and high system reliability.Designed for technical environments where cleanability, material traceability, and precise mechanical compatibility are required.
Specifications
Product description
Downloads
€537.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
3,38:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211N
Output speed at 1400 RPM
414
Max output torque (Nm)
17
Max kW input at 1400 rpm
0.75
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Brand Description:Clean-Geartech is a renowned manufacturer specializing in high-efficiency, corrosion-resistant gear solutions tailored for demanding industrial environments. With a focus on durability, hygiene, and engineering precision, Clean-Geartech products are especially suited for sectors such as food processing, pharmaceuticals, marine, and chemical industries—where reliability and cleanliness are paramount.Key Features and Application Benefits:
High corrosion resistance: Fully stainless steel gear housing and output shaft ensure excellent resistance against moisture, chemicals, and aggressive cleaners, making it ideal for hygienic and washdown environments.
One-stage helical gearing: The single-stage design (ratio 3.38:1) offers a compact and cost-efficient solution with reduced mechanical complexity, suited for applications where space and weight are critical.
High mechanical efficiency (98%): Optimized gear geometry and precision machining deliver minimal energy loss, supporting energy-efficient operations in automated systems and continuous-duty machinery.
Robust input/output configuration: Equipped with a 14 mm stainless steel input and output shaft and compatible with 71B14 motor flange interface, simplifying integration with standard IEC motors and ensuring secure torque transmission.
Versatile integration: The gearbox’s standardized BCD values (85 mm input/output) allow for flexible mounting in industrial systems such as conveyor drives, mixers, rotary tables, and dosing equipment.
Hygienic design: Smooth surface finishes and crevice-free housing minimize bacterial growth and residue buildup, aligning with strict industry standards in food and pharmaceutical processing.
Gear size 211N: Optimized for mid-range torque requirements, providing a balanced solution between performance and footprint for applications in automation, OEM systems, and process engineering.Conclusion:The Clean-Geartech 211N stainless steel helical gearbox is engineered for durability, efficiency, and easy integration into technical systems requiring sanitary and space-saving gear solutions. Ideal for technical specialists and engineers working in high-demand industrial sectors.
High corrosion resistance: Fully stainless steel gear housing and output shaft ensure excellent resistance against moisture, chemicals, and aggressive cleaners, making it ideal for hygienic and washdown environments.
One-stage helical gearing: The single-stage design (ratio 3.38:1) offers a compact and cost-efficient solution with reduced mechanical complexity, suited for applications where space and weight are critical.
High mechanical efficiency (98%): Optimized gear geometry and precision machining deliver minimal energy loss, supporting energy-efficient operations in automated systems and continuous-duty machinery.
Robust input/output configuration: Equipped with a 14 mm stainless steel input and output shaft and compatible with 71B14 motor flange interface, simplifying integration with standard IEC motors and ensuring secure torque transmission.
Versatile integration: The gearbox’s standardized BCD values (85 mm input/output) allow for flexible mounting in industrial systems such as conveyor drives, mixers, rotary tables, and dosing equipment.
Hygienic design: Smooth surface finishes and crevice-free housing minimize bacterial growth and residue buildup, aligning with strict industry standards in food and pharmaceutical processing.
Gear size 211N: Optimized for mid-range torque requirements, providing a balanced solution between performance and footprint for applications in automation, OEM systems, and process engineering.Conclusion:The Clean-Geartech 211N stainless steel helical gearbox is engineered for durability, efficiency, and easy integration into technical systems requiring sanitary and space-saving gear solutions. Ideal for technical specialists and engineers working in high-demand industrial sectors.
