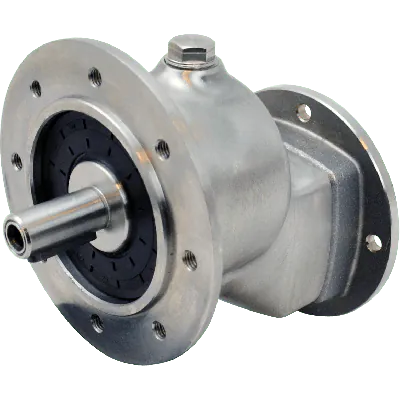

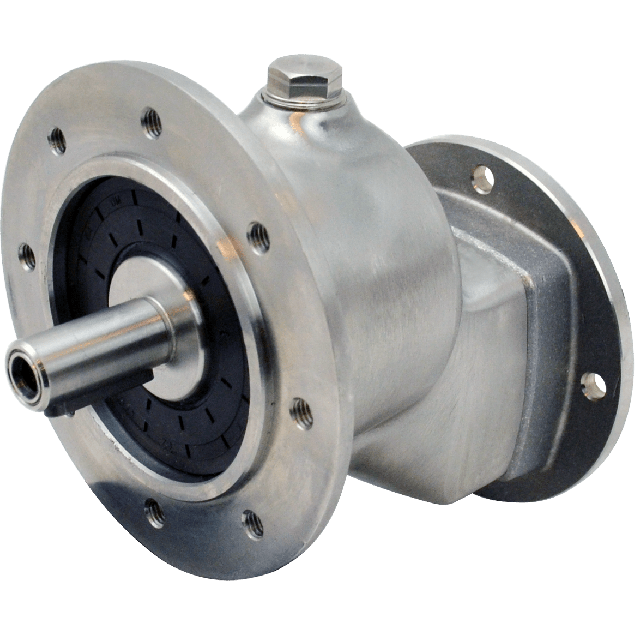

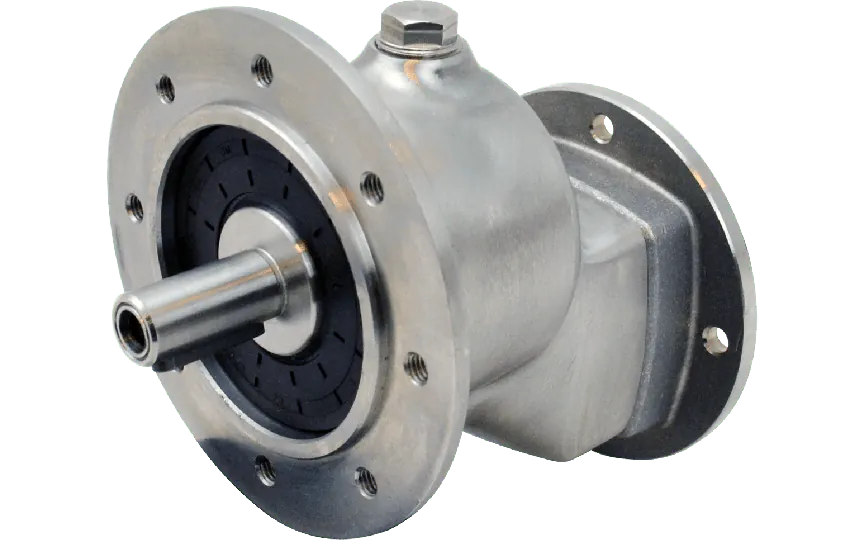

Clean-Geartech 211N, 1 stage coaxial gear, 2,35:1, input 71B14, output 71B14, stainless steel
HV82P211N-F02SI-QB3STOFThis one-stage gear unit offers a ratio of 2.35:1, with a single gear stage configuration optimized for direct and reliable torque transmission. Both the gear input shaft and the gear output shaft have a diameter of 14 mm, ensuring structural compatibility with standard couplings and drive systems.The gear size is 211N, and the motor interface conforms to the 71B14 standard, allowing seamless integration with IEC motors. Its gear material is stainless steel, making it suitable for environments requiring corrosion resistance and high mechanical strength.An efficient internal design delivers a gear efficiency of 98%, meeting the demands of applications where energy loss must be minimized. The configuration supports a BCD input of 85 mm and a BCD output of 85 mm, aligning with typical mounting dimensions for easy system integration.This gear unit is suitable for use in food, pharmaceutical, and other cleanroom or harsh environments where stainless steel construction is required.
Specifications
Product description
Downloads
€537.00
In stock
Expected shipment:
Loading...
More Information
HS-Code
84834021.000000
Material
Stainless steel
Ratio
2,35:1
BCD input
85
BCD output
85
Gear stages
1
Efficiency (%)
98
Gear output shaft (mm)
14
Gear input shaft (mm)
14
Gear motor interface
71B14
Gear size
211N
Output speed at 1400 RPM
595
Max output torque (Nm)
12
Max kW input at 1400 rpm
0.76
Mounting position
B3
Oil
Mobil SHC Cibus 320 NSF H1
Producer
Clean-Geartech
Description
Clean-Geartech is a premium manufacturer specializing in high-precision, corrosion-resistant gearboxes engineered for demanding industrial and hygienic applications. Renowned for their stainless steel construction and superior efficiency, Clean-Geartech products are widely used in the food & beverage, pharmaceutical, marine, and chemical sectors.Key Features, Advantages, and Application Areas:
• Constructed entirely from stainless steel — Ensures high resistance to corrosion, ideal for harsh environments and hygienic zones such as food processing, chemical production, and marine applications.
• High efficiency of 98% — Minimizes energy loss, reduces operating costs, and contributes to more sustainable system designs.
• Gear size 211N with compact single-stage design — Allows for efficient power transmission with a 2.35:1 reduction ratio in a compact footprint, suitable for tight installations or mobile machinery.
• Input and output shafts both 14 mm — Offers seamless integration with standard motor and driven components, simplifying assembly and maintenance workflows.
• Gear motor interface size 71B14 — Compatible with IEC-standard motors, offering maximum configuration flexibility and compatibility with a wide array of electric motor sizes.
• High performance 1-stage helical gearing — Delivers smooth, quiet operation with minimal vibration and high load capacity, suitable for automation systems requiring precision and reliability.
• Ideal for hygienic design applications — The smooth, crevice-free surfaces prevent contamination accumulation, making this gear unit perfect for CIP (Clean-In-Place) cleaning processes common in pharmaceutical and food industries.
• Axis-aligned input and output (BCD 85 input and output) — Facilitates straightforward mechanical design integration, saving time and reducing custom adapter requirements during system installation.Clean-Geartech’s 211N stainless steel gearbox stands out as a robust, efficient, and adaptable solution for technical specialists and engineers seeking high-performance power transmission in challenging industrial environments.
• Constructed entirely from stainless steel — Ensures high resistance to corrosion, ideal for harsh environments and hygienic zones such as food processing, chemical production, and marine applications.
• High efficiency of 98% — Minimizes energy loss, reduces operating costs, and contributes to more sustainable system designs.
• Gear size 211N with compact single-stage design — Allows for efficient power transmission with a 2.35:1 reduction ratio in a compact footprint, suitable for tight installations or mobile machinery.
• Input and output shafts both 14 mm — Offers seamless integration with standard motor and driven components, simplifying assembly and maintenance workflows.
• Gear motor interface size 71B14 — Compatible with IEC-standard motors, offering maximum configuration flexibility and compatibility with a wide array of electric motor sizes.
• High performance 1-stage helical gearing — Delivers smooth, quiet operation with minimal vibration and high load capacity, suitable for automation systems requiring precision and reliability.
• Ideal for hygienic design applications — The smooth, crevice-free surfaces prevent contamination accumulation, making this gear unit perfect for CIP (Clean-In-Place) cleaning processes common in pharmaceutical and food industries.
• Axis-aligned input and output (BCD 85 input and output) — Facilitates straightforward mechanical design integration, saving time and reducing custom adapter requirements during system installation.Clean-Geartech’s 211N stainless steel gearbox stands out as a robust, efficient, and adaptable solution for technical specialists and engineers seeking high-performance power transmission in challenging industrial environments.
