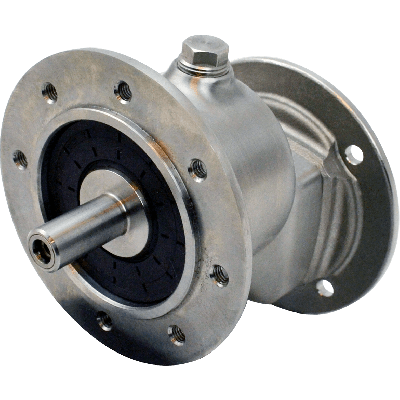

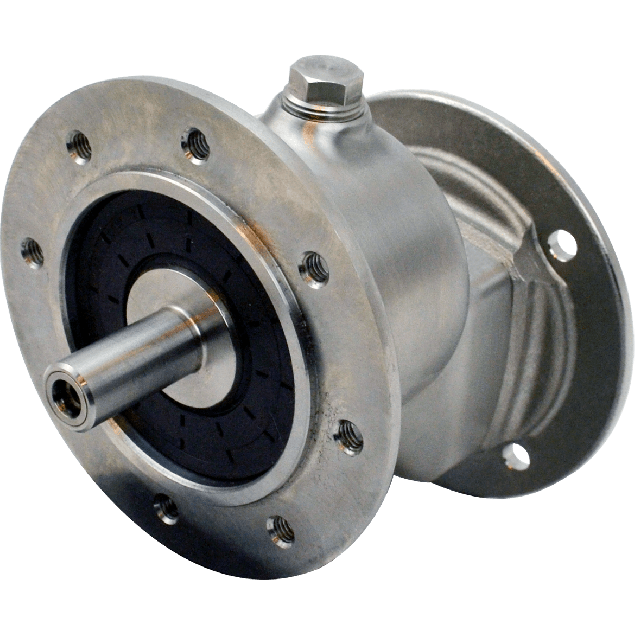

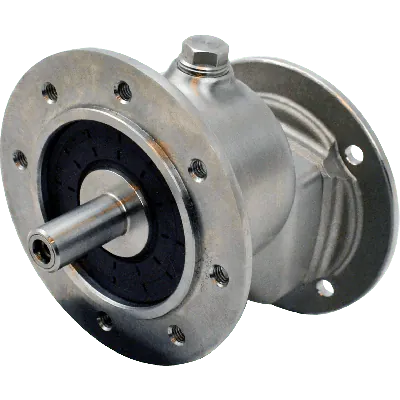

Clean-Geartech 211N, 1 stage coaxial gear, 2,35:1, input 63B14, output 71B14, stainless steel

HV82P211N-F02SI-PB3STOF

This model features a gear size of 211N and a gear ratio of 2.35:1, providing reliable torque transmission in applications with moderate speed reduction requirements. The gear stages: 1 configuration ensures low mechanical complexity while maintaining high strength and load capacity.With a BCD input of 75 mm and a BCD output of 85 mm, the unit is ready for integration in standardized setups. The gear motor interface: 63B14 allows for seamless attachment to compatible motors, while the output flange: 71B14 (as referenced in the product name) provides versatility in system connection.The input shaft diameter is 11 mm and the output shaft diameter is 14 mm, configured to handle standard torque transmission requirements within this gearbox size category.Constructed from rustfrit stål (stainless steel), the housing and gear elements ensure corrosion resistance and suitability for demanding environments such as food, pharmaceutical, or washdown applications.Efficiency is a key operational parameter: the unit delivers a mechanical efficiency of 98%, minimizing energy loss through the drive system.This gearbox is identified under the SKU name: Clean-Geartech 211N, 1 trins tandhjulsgear, 2,35:1, indgang 63B14, afgang 71B14, rustfrit stål.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Stainless steel

Ratio

2,35:1

BCD input

BCD output

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

63B14

Gear size

211N

Output speed at 1400 RPM

595

Max output torque (Nm)

Max kW input at 1400 rpm

0.76

Mounting position

Oil

Mobil SHC Cibus 320 NSF H1

Producer

Clean-Geartech

Description

Clean-Geartech is a specialized manufacturer of high-performance stainless-steel gearboxes designed for demanding industrial environments. Known for their superior hygiene standards, corrosion resistance, and precise engineering, Clean-Geartech gear units are favored by technical specialists and engineers across sectors such as food processing, pharmaceuticals, chemical production, and marine applications.The Clean-Geartech 211N is a precision-engineered one-stage helical gearbox with a 2.35:1 ratio, combining compact size with high mechanical efficiency. It is built entirely in stainless steel, making it ideal for harsh or hygienic environments.Key Features and Application Benefits:
• Entire housing made of stainless steel (SS), ensuring excellent corrosion resistance and making it highly suitable for washdown areas, food-grade environments, and marine installations.

• High mechanical efficiency of 98% reduces energy loss and operational costs, making it ideal for continuous-duty industrial applications.

• Single-stage helical gear configuration provides high torque transfer with minimal backlash, contributing to precision motion control systems and automated machinery.

• Gear ratio of 2.35:1 is optimal for equipment needing moderate speed reduction while maintaining system responsiveness.

• Compact gear size (211N) allows easy integration into constrained spaces and modular machine designs.

• Designed for compatibility with IEC motor interface 63B14 at the input, supporting a wide range of standard electric motors.

• Output configuration suitable for 71B14 interface ensures seamless downstream coupling with other mechanical modules.

• Output shaft diameter of 14 mm and input shaft size of 11 mm ensure compatibility with common drive systems and transmission elements.

• Particularly recommended for automation systems, conveyor lines, food-grade mixing and processing equipment, or clean-in-place (CIP) production environments.
The Clean-Geartech 211N gearbox delivers durability, performance, and hygiene in a compact stainless-steel form factor — tailored to meet the exacting standards of industrial engineers and system designers.
