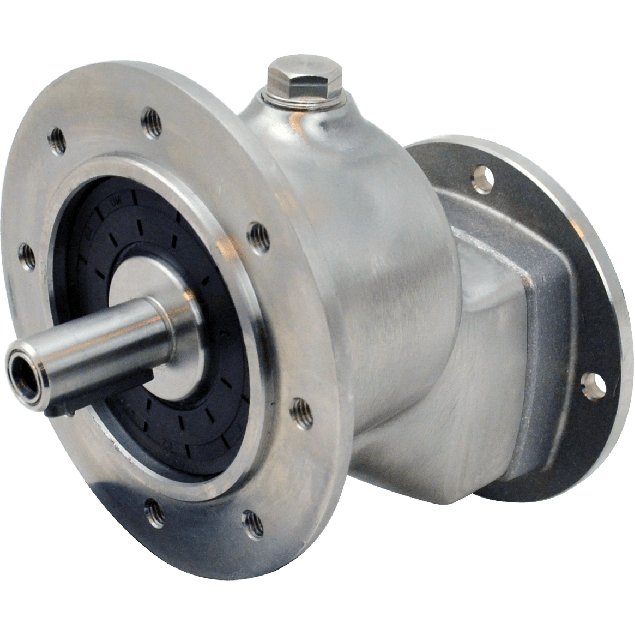

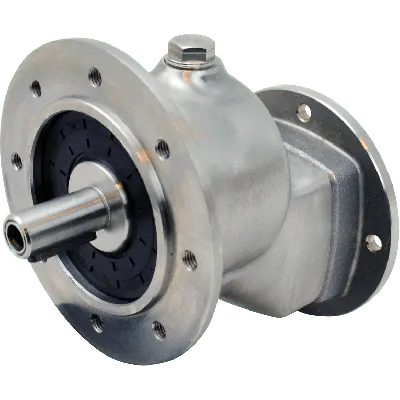

Clean-Geartech 211N, 1 stage coaxial gear, 2,05:1, input 71B14, output 71B14, stainless steel

HV82P211N-F01SI-QB3STOF

This gear unit features a gear ratio of 2.05:1, facilitating precise speed and torque adaptation. It offers BCD input and output of 85, ensuring compatibility within standardized mechanical interface requirements. With an efficiency of 98%, it enables minimal energy loss during transmission, suitable for energy-conscious systems.The gear input shaft diameter is 14 mm, and the output shaft diameter is also 14 mm, allowing for straightforward integration into systems requiring metric shaft configurations. The gear interface follows the 71B14 motor standard, easing connectivity with corresponding motor sizes.This version utilizes a single gear stage within a gear size classification of 211N, balancing size constraints and torque needs. Constructed entirely from stainless steel, the gear offers high resistance to corrosion and is suitable for environments with hygiene or chemical exposure demands.Designed for technical professionals, the Clean-Geartech 211N provides reliability and integration flexibility in applications such as food processing, pharmaceuticals, and automated systems.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

HS-Code

84834021.000000

Material

Stainless steel

Ratio

2,05:1

BCD input

BCD output

Gear stages

Efficiency (%)

Gear output shaft (mm)

Gear input shaft (mm)

Gear motor interface

71B14

Gear size

211N

Output speed at 1400 RPM

682

Max output torque (Nm)

Max kW input at 1400 rpm

0.73

Mounting position

Oil

Mobil SHC Cibus 320 NSF H1

Producer

Clean-Geartech

Description

Clean-Geartech is a renowned manufacturer specializing in high-performance gear solutions designed for demanding industrial environments. Their products are known for robust construction, high efficiency, and compliance with the strictest hygienic and corrosion-resistant standards—making Clean-Geartech the preferred choice in the food, pharmaceutical, and chemical industries.
High Efficiency – 98%

Achieves minimal energy loss during transmission, contributing to optimal system performance and lower operating costs.

Material – Stainless Steel Enclosure and Output Shaft

Built entirely from stainless steel, including housing and hollow output shaft, ensuring corrosion resistance, easy cleaning, and suitability for washdown environments and hygienic applications.

Gear Size – 211N

Compact and robust size ideal for decentralized installations where space constraints and strength are critical factors.

Gear Ratio – 2.05:1

Enables precise speed reduction in automation systems, conveyors, and rotary applications.

Single-stage Helical Design

Delivers smooth, quiet operation and high torque with minimal backlash, ideal for synchronous operations in production lines and packaging systems.

Input & Output Interface – B14 flange with 14 mm Shaft

Standardized 71B14 motor interface and 14 mm input/output shafts offer compatibility with various IEC motors and simplify integration with existing mechanical systems.

Low Maintenance

Designed with sealed stainless steel components and fewer moving parts, reducing downtime and supporting continuous operation in harsh environments.

Wide Industrial Applications

Perfect for use in food processing, bottling plants, pharmaceutical production lines, and chemical dosing systems where hygiene, reliability, and high performance are non-negotiable.
With its hygienic design and high efficiency, Clean-Geartech’s 211N gearbox is a trusted solution for technical specialists requiring robust yet precise power transmission under rigorous standards.
