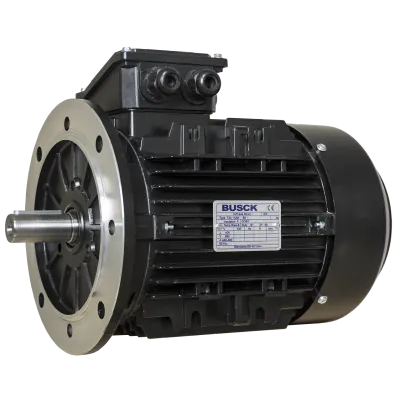

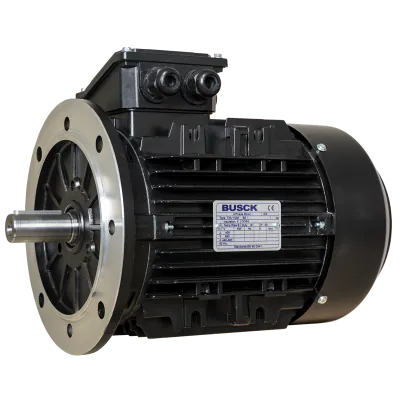

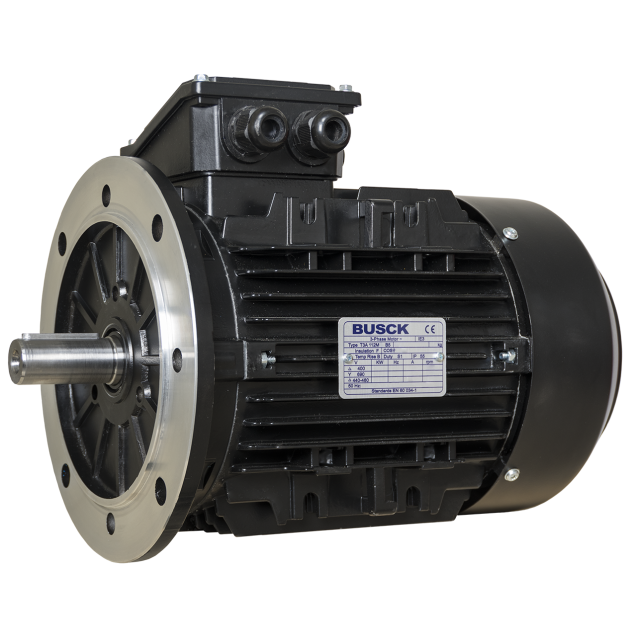

Busck AC motor T3A112MB-2B5, 5,5kW, 2930RPM, B5, 400/690, 50 Hz, Aluminium
T3A112MB-2B5The Busck AC motor T3A112MB-2B5 is a high-speed, high-efficiency aluminium motor designed for demanding industrial applications.
This 2-pole motor delivers a rated output of 5.5 kW at 2930 RPM, producing a nominal torque of 17.99 Nm with IE3 premium efficiency of 89.2%.
The IP55 aluminium housing provides protection against dust and water jets, ensuring reliable operation in harsh environments. The TEFC (Totally Enclosed Fan Cooled) design ensures optimal cooling and long service life, even under continuous load.
Equipped with a B5 flange and a 215 mm BCD, the motor integrates easily with a wide range of industrial machinery. Electrical connection is 400/690 V Δ/Y at 50 Hz, with a rated current of 9.78/5.62 A and a start current ratio of 11.9. The Ø28 mm shaft ensures strong and reliable power transmission.
Key advantages:
-
High-speed 2-pole design for fast-running applications
-
IE3 premium efficiency for reduced operating costs
-
IP55 aluminium housing for durability and corrosion resistance
-
TEFC cooling for reliable performance under load
In stock
Expected shipment:
More Information
Description
Key features:
- IP55 rating: Provides protection against dust and water, enhancing motor durability.
- Powerful performance: Boasts a substantial 5.5kW output, offering impressive torque and speed capabilities.
- Optimal speed: Runs at a rapid 2930RPM, ensuring efficient performance for various industrial tasks.
- Voltage versatility: Suitable for 400/690V power supplies, providing flexibility in usage.
- B5 flange: Easy to mount and integrate into existing systems with its B5 flange design.
- High energy efficiency: Achieves an IE3 energy efficiency rating, reducing power consumption.
Specifications:
- Durable build: Made from aluminum.
- Wide temperature range: -20°C to +40°C.
