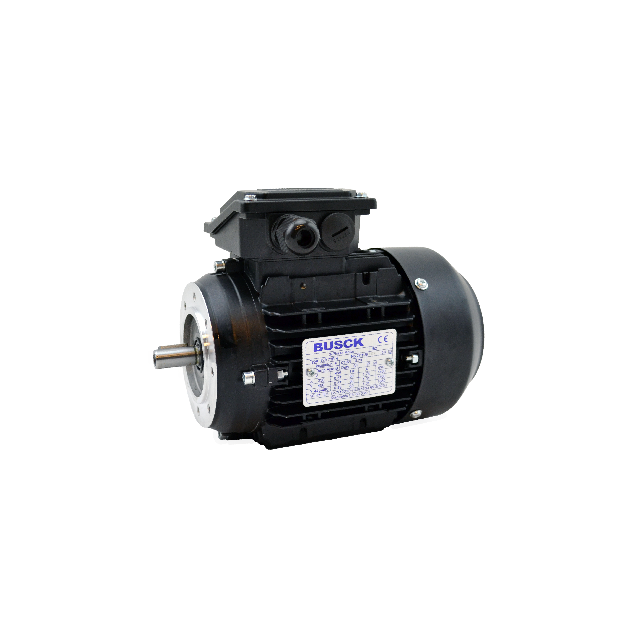

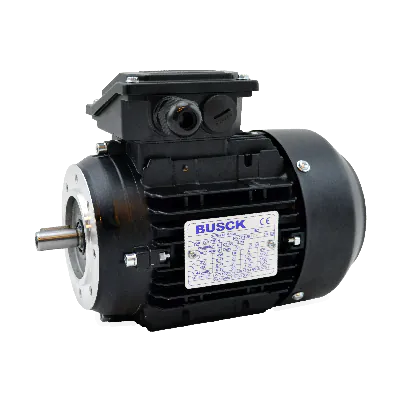

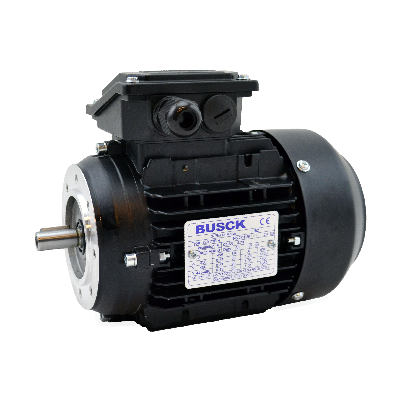

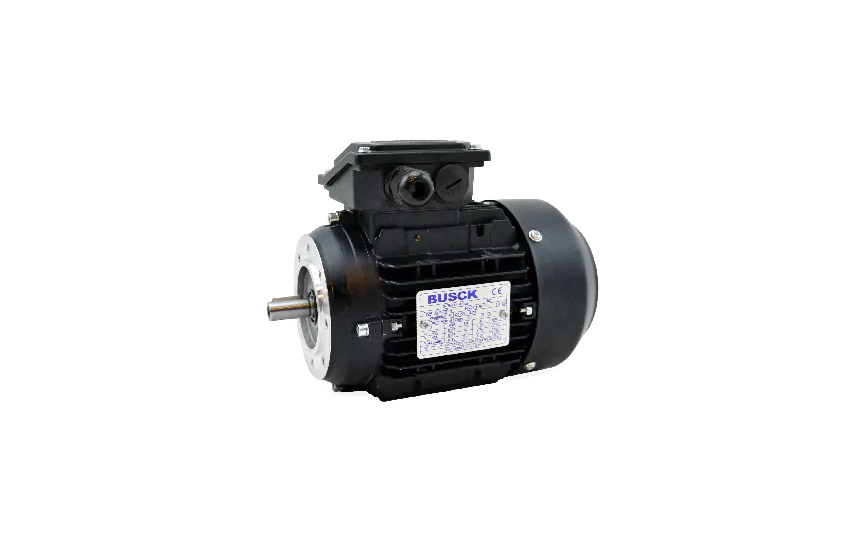

Busck AC motor T2A71B-4HM, 0,37kW, 1400RPM, B14 8-hole flange, 230/400, 50 Hz
T2A71B-4HMThe Busck AC Motor T2A71B-4HM is a compact and reliable electric motor designed for industrial applications. With a rated output of 0.37 kW and a rated speed of 1400 RPM, it meets the IE2 efficiency standard and complies with IEC frame size 71. The motor features a fully enclosed TEFC cooling system and a shaft diameter of Ø14 mm. Its mounting type is B14 with 8-hole flange, making it suitable for a wide range of setups. Constructed in aluminium for reduced weight and good heat dissipation, it runs at four poles and supports a voltage connection of 230/400V. The motor has an IP55 protection rating for dust and water resistance, and a bolt circle diameter (BCD) of 85 mm.
Specifications
Product description
Downloads
€269.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T2A71B-4HM
Speed (RPM)
1400
Rated output (kW)
0.37
Efficiency (% FL)
72.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.76/1.01
Nominal torque (Nm)
2.52
Start current ratio (IA/IN)
4.7
Mounting
B14
BCD
85
Poles
4
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
HS-Code
85015100.000000
Description
Key features:
- IP55 rating: Provides protection against dust and water ingress.
- High power output: With a power rating of 0.37kW, this motor delivers consistent and efficient performance.
- Efficient operation: Operates at 1400RPM, ensuring optimal energy utilization.
- Versatile voltage: Supports both 230V and 400V power supply.
- B14 flange with 8 holes: The motor's B14 flange design with 8 holes allows for easy and secure installation.
- IE2 energy efficiency: The motor complies with high energy efficiency standards, leading to reduced operating costs.
Specifications:
- Robust construction: The motor has a aluminum body.
- Wide temperature range: -20°C to +40°C.
