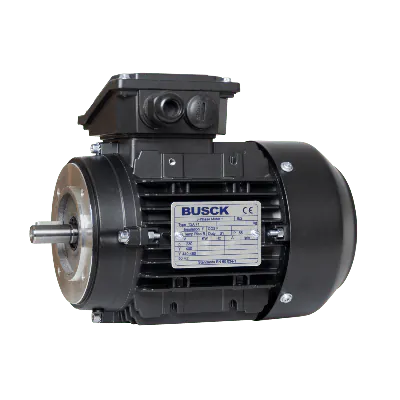

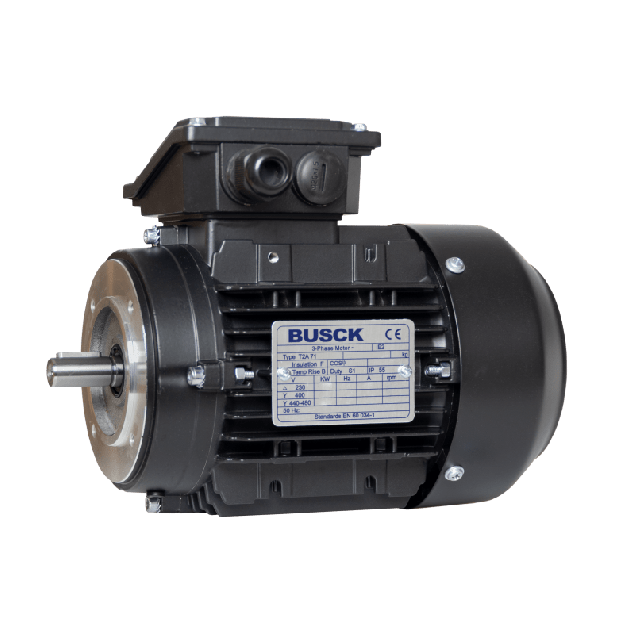

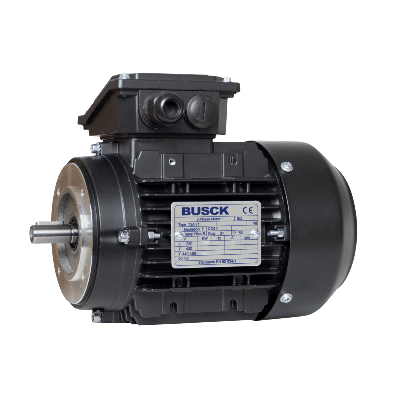

The Busck T4A71B-4 is a compact and energy-efficient three-phase AC motor designed for reliable operation in industrial applications. The motor delivers a nominal output of 0.37 kW at 1430 RPM and is built according to IEC frame size 71. Its compact design combined with the B14 flange mounting makes it particularly suitable for direct mounting on gearboxes, pumps, conveyors and other machinery where space is limited.

The motor housing is manufactured from aluminium, providing low weight, good heat dissipation and excellent corrosion resistance. The TEFC cooling system (Totally Enclosed Fan Cooled) protects the motor from dust and contaminants, ensuring stable performance in demanding industrial environments.

The motor operates at 230/400 V Δ/Y at 50 Hz and features IE4 efficiency class, providing high energy efficiency and reduced operating costs. With a nominal torque of 2.57 Nm and strong starting characteristics, the motor is suitable for applications that require reliable starting and continuous operation.

The standardized IEC design allows easy integration into new machines as well as straightforward replacement in existing installations.

Typical application areas include:

• Gear motors and transmission systems

• Conveyor systems and material handling

• Pumps and ventilation equipment

• Automation equipment and production machinery

• Machines requiring direct flange mounting to gearboxes or pumps
