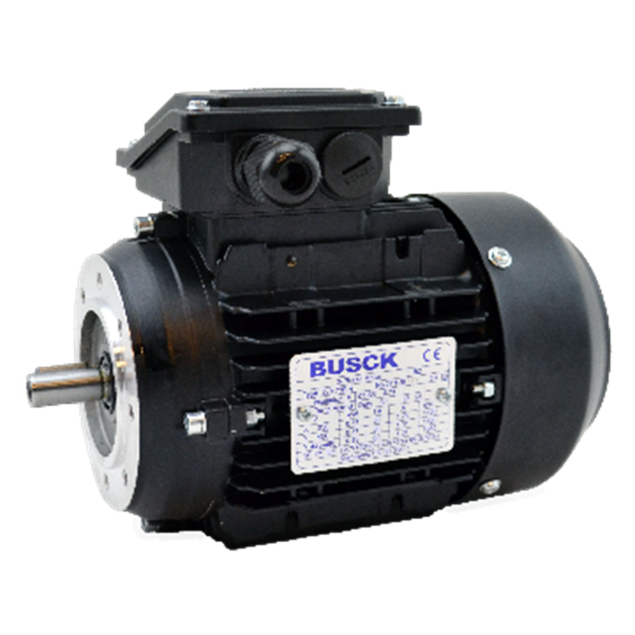

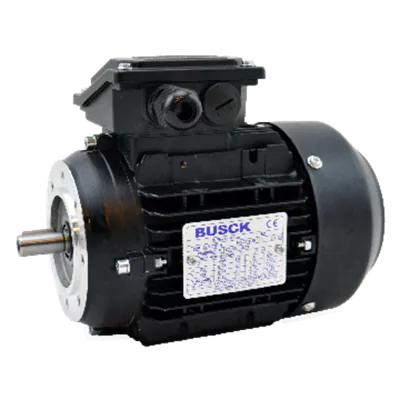

The Busck T3A80A‑2HM is a high-speed IEC-standard 2-pole motor rated at 0.75 kW, delivering a rotational speed of 2890 RPM. Designed with a B14 flange mounting and a Ø19 mm shaft, this motor is well-suited for compact industrial equipment requiring precise alignment.

The motor is constructed in a Totally Enclosed Fan Cooled (TEFC) design and meets IP55 protection, allowing safe operation in demanding environments. Built with Class F insulation, it supports S1 continuous duty and is housed in an IEC 80 aluminium frame.

This motor delivers a starting torque of 2.3 Nm, a nominal torque of 2.48 Nm, and a start current ratio of 7.4 IA/IN. It complies with IE3 efficiency classification, achieving an efficiency of 80.7% at full load.

Key Features:

• Rated power: 0.75 kW

• Speed: 2890 RPM

• Mounting: B14 flange

• Shaft diameter: Ø19 mm

• Starting torque: 2.3 Nm

• Nominal torque: 2.48 Nm

• Start current ratio: 7.4 IA/IN

• Efficiency: IE3 – 80.7%

• Voltage: 230/400 V, 50 Hz

• Duty type: S1 continuous

• Protection class: IP55

• Cooling type: TEFC

• Frame size: IEC 80

• Insulation class: F

• Housing: Aluminium
