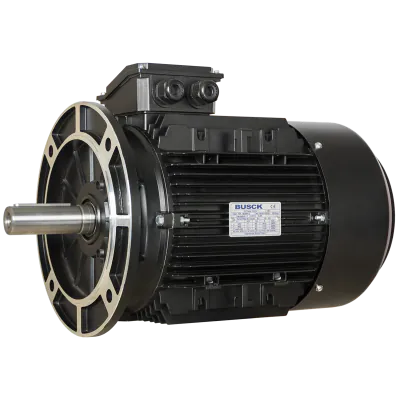

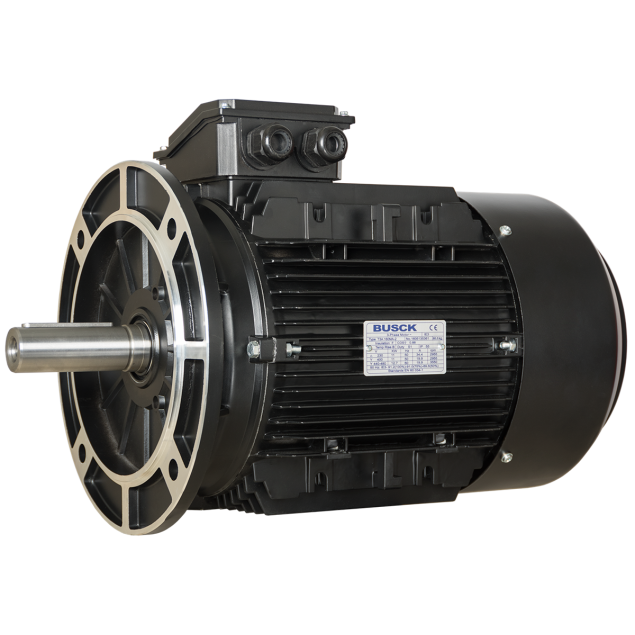

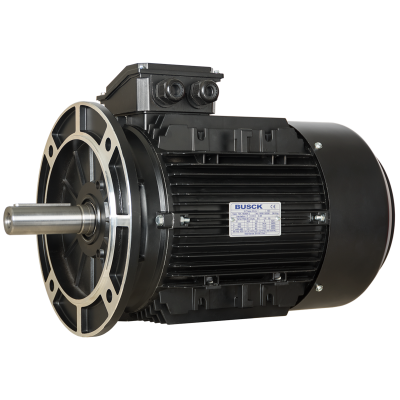

The Busck T3A132S-4B5 is a 5.5 kW IEC-standard AC motor designed for industrial applications requiring robust performance and reliable power transmission. It runs at 1460 RPM (4-pole) and features a compact IEC 132S frame with a B5 flange for easy integration into standardized setups.

This motor includes a shaft diameter of Ø38 mm, a cast aluminium housing, and a Totally Enclosed Fan Cooled (TEFC) design with IP55 ingress protection for operation in dusty or humid environments. It is suitable for continuous S1 operation and equipped with Class F insulation.

With a starting torque of 2.3 Nm, a rated torque of 35.98 Nm, and a start current ratio of 9.0 IA/IN, this motor offers high starting capability and consistent mechanical output. It achieves a full-load efficiency of 89.6%.

Key Features:

• 5.5 kW output at 1460 RPM

• B5 flange mount, IEC 132S frame

• Shaft diameter: Ø38 mm

• Starting torque: 2.3 Nm

• Rated torque: 35.98 Nm

• Start current ratio: 9.0 IA/IN

• IP55 protection, TEFC cooling

• Aluminium housing, Class F insulation

• S1 continuous duty

• Efficiency: 89.6%
