Busck AC motor T3A132M-4, 7,5kW, 1460RPM, B14, 400/690, 50 Hz, Aluminium

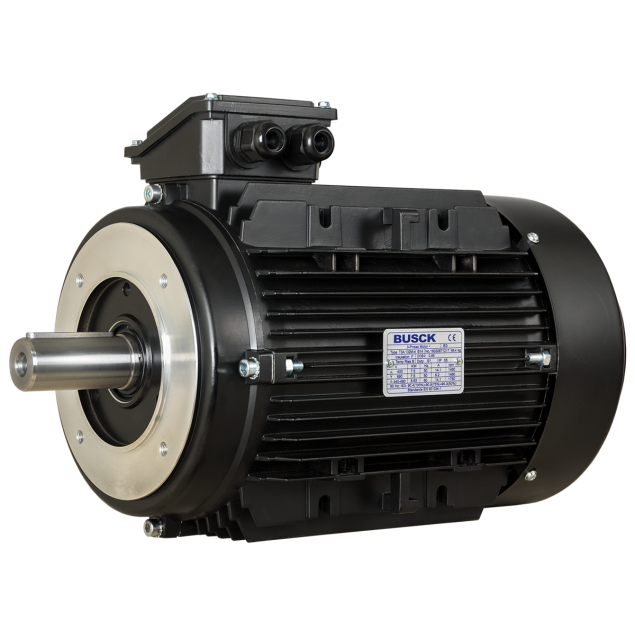

T3A132M-4The T3A132M-4 is a robust 7.5 kW IEC-standard motor from Busck, featuring a 4-pole winding (1465 RPM) and equipped with a B14 face flange with 8 mounting holes. This configuration ensures stable and secure mounting in compact installations. The motor includes a Ø38 mm shaft and an IP55-rated Totally Enclosed Fan Cooled (TEFC) housing for reliable operation in industrial environments. With an efficiency of 87.7%, it is ideal for demanding applications requiring both performance and durability.
Made to order
Expected shipment:
More Information
Description
The Busck T3A132M‑4 is a robust IEC-standard AC motor designed for demanding industrial applications. Rated at 7.5 kW, it operates at 1460 RPM in a 4-pole configuration and features a B5 flange mount for direct coupling to machinery.
The motor is built with IP55 ingress protection and a Totally Enclosed Fan Cooled (TEFC) design, enabling safe operation in dusty or humid environments. It includes Class F insulation and is suitable for S1 continuous duty. The Ø38 mm shaft and IEC 132M frame size make it ideal for a wide range of standard drive systems.
Key performance values include a nominal torque of 49.1 Nm, a starting torque of 2.6 Nm, and a start current ratio of 8.9 IA/IN. It achieves IE3 efficiency at 90.4%, contributing to energy savings and reduced operating costs.
Key Features:
-
Power: 7.5 kW
-
Speed: 1460 RPM
-
Mounting: B5 flange
-
Shaft diameter: Ø38 mm
-
Nominal torque: 49.1 Nm
-
Starting torque: 2.6 Nm
-
Start current ratio: 8.9 IA/IN
-
IP55 protection, TEFC cooling
-
Insulation class: F
-
Duty cycle: S1 (continuous)
-
Voltage: 400/690 V, 50 Hz
-
Efficiency: IE3 (90.4%)
