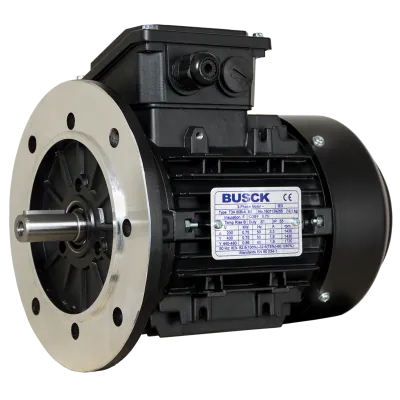

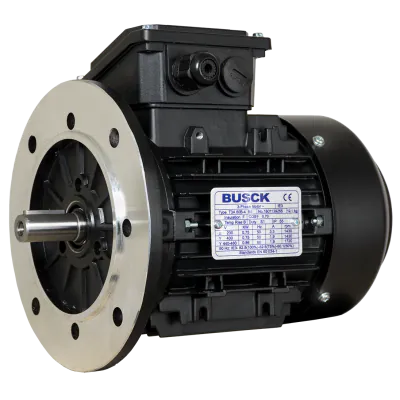

The Busck T2A80B-6B5 is a compact IEC-standard AC motor delivering 0.55 kW at 935 RPM (6-pole). Designed with a B5 flange in an IEC 80B frame, this motor is well suited for low-speed applications where smooth, reliable operation is essential.

The motor includes a Ø19 mm shaft, a Totally Enclosed Fan Cooled (TEFC) design, and IP55 ingress protection, making it suitable for harsh environments. With Class F insulation and continuous-duty (S1) operation, it ensures dependable long-term performance.

It provides a starting torque of 2.0 Nm, a rated torque of 5.62 Nm, and a start current ratio of 4.0 IA/IN. The full-load efficiency is rated at 73.1%, aligned with its performance class.

Key Features:

• 0.55 kW output at 935 RPM

• B5 flange mount, IEC 80B frame

• Shaft diameter: Ø19 mm

• Starting torque: 2.0 Nm

• Rated torque: 5.62 Nm

• Start current ratio: 4.0 IA/IN

• IP55 protection, TEFC cooling

• Aluminium housing, Class F insulation

• Continuous duty (S1)

• Efficiency: 73.1%
